What is the function of a car flywheel
The flywheel can store energy and inertia. In the working cycle of an engine, especially in a four-stroke engine, only the power stroke outputs power externally, while the intake, compression and exhaust strokes all consume energy. The flywheel takes advantage of its huge moment of inertia to absorb and store part of the energy from the engine crankshaft during the power stroke. When entering other strokes, the flywheel releases the stored energy, helping the crankshaft rotate continuously and stably, effectively reducing the speed fluctuations during engine operation and ensuring that the engine speed remains relatively stable under different operating conditions.

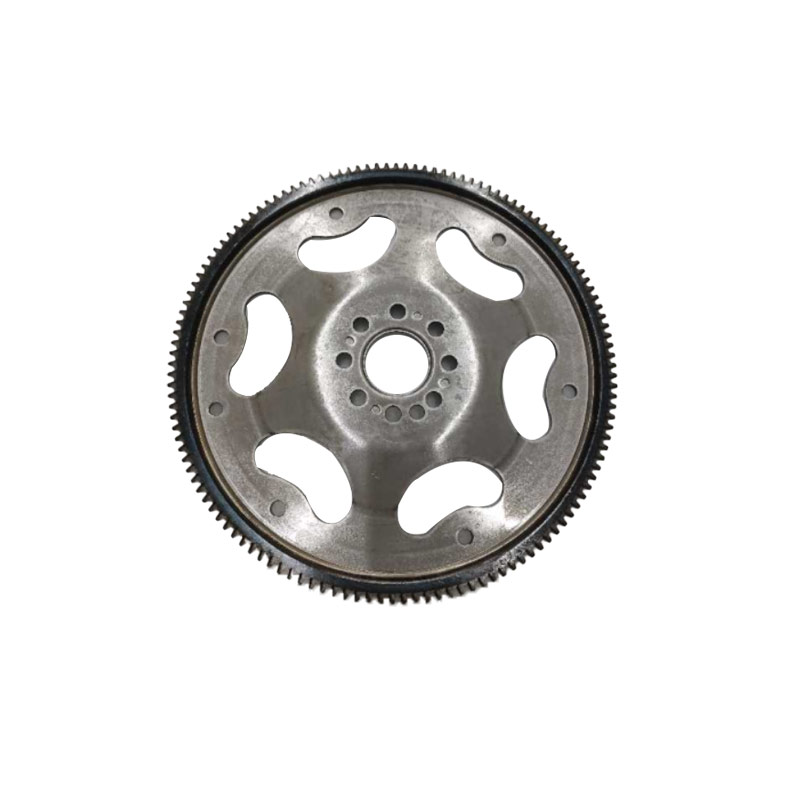

Secondly, the flywheel can also assist in starting the engine. On the outer edge of the flywheel, there is usually a flywheel gear ring specifically designed for starting the engine. When the driver turns the ignition key or presses the start button, the drive gear of the starter will quickly mesh closely with the flywheel ring gear, driving the flywheel to rotate through the flywheel ring gear, and then the crankshaft starts to rotate, thus achieving the start of the engine.
In addition, the flywheel also plays a role in ensuring uniform output torque and rotational speed. It can keep the torque and rotational speed output by the engine to the outside as stable as possible, making the vehicle run more smoothly. Meanwhile, the flywheel can also leverage its own rotational inertial force to help overcome the compressive resistance in the cylinder during startup, maintaining the continuous operation of the engine in the event of short-term overload.
Finally, specific indicator marks are usually engraved on the flywheel, which play a significant role in the maintenance and debugging of the engine. For instance, they can be used for the timing adjustment of oil pumps to ensure that the fuel system injects fuel into the cylinders at the correct time. Meanwhile, these marks can also be used to correct the ignition timing, ensuring that the spark plugs ignite the mixture at the right moment, thereby achieving efficient combustion and stable operation of the engine.
In conclusion, the automotive flywheel, with its unique structure and multi-functionality, plays an irreplaceable role in the operation of the engine.
The main manifestations of car flywheel damage are difficulty in starting and abnormal noise, abnormal engine vibration, decreased power output, abnormal clutch operation and increased fuel consumption . Timely maintenance is required to avoid damage to related systems.
Youdaoplaceholder0 Core symptoms and effects
Youdaoplaceholder0 Difficulty in starting and abnormal noise : When igniting, there is a gear clashing sound or the ignition fails. The starter meshing fails due to the wear of the flywheel ring gear.
Youdaoplaceholder0 Engine shaking : At idle, the steering wheel and the vehicle body tremble significantly, due to the disruption of the flywheel balance function, causing fluctuations in the crankshaft speed.
Youdaoplaceholder0 Power and transmission abnormalities :
Weak acceleration and sluggish throttle response may cause the vehicle speed to drop by 10 to 15 kilometers per hour.
Gear shifting is jerky or difficult to shift gears, accompanied by an abnormal "clicking" sound.
Youdaoplaceholder0 clutch problem :
Skidding: Difficulty in starting, weak acceleration, and in severe cases, a burnt smell or smoke.
Incomplete disengagement: After stepping on the clutch, the power is not completely cut off, resulting in gear shifting and gear breakage.
Youdaoplaceholder0 Other manifestations : Abnormal noises from metal friction (such as "wheezing sounds"), fuel consumption increases by 20% to 30%.
Youdaoplaceholder0 handling suggestions
Immediate inspection: If abnormal start-up noise or steering wheel shaking occurs more than three times.
Replacement standard: If more than 4 gear rings are damaged or the groove wear is greater than 0.5mm, the flywheel needs to be replaced.
Prevention: Avoid semi-clutch driving and check the flywheel condition every 60,000 kilometers.
