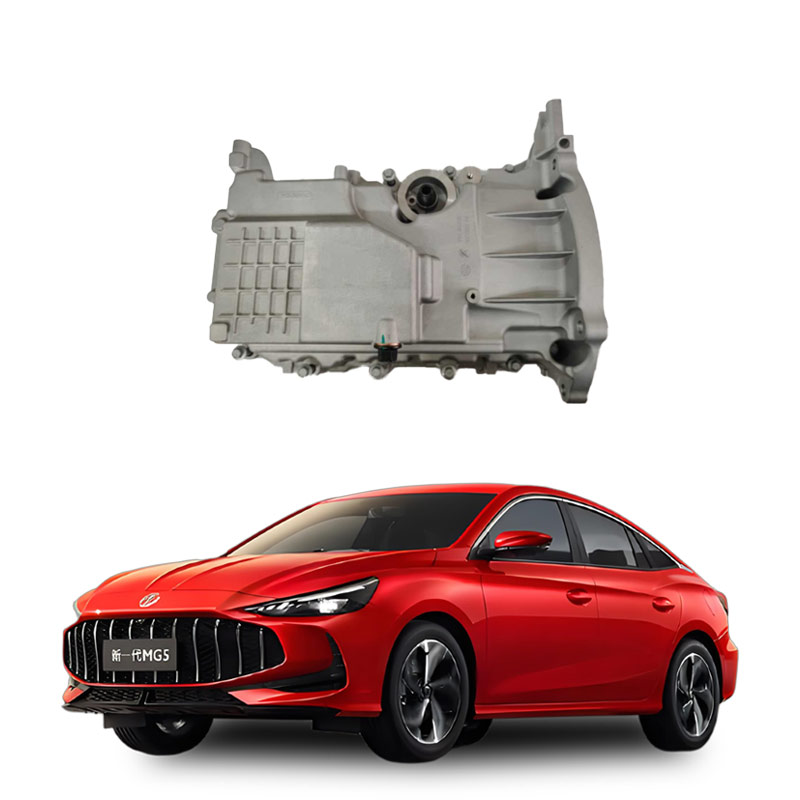

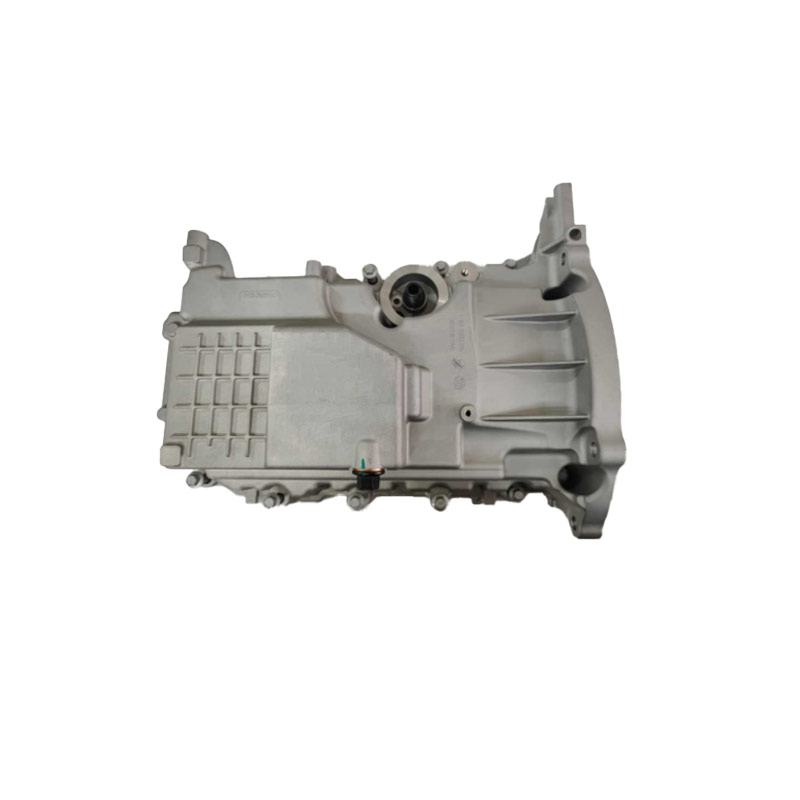

What is the oil pan of a car engine
The oil pan of a car engine (also known as the lower crankcase) is a detachable sealed housing at the bottom of the engine and is a key component of the lubrication system. Its main functions include:
Closed crankcase
The sealing design is adopted to prevent impurities from entering and ensure the cleanliness of the internal lubrication system.
Store lubricating oil
Collect the lubricating oil flowing back from each friction surface of the diesel engine and store it in the oil pan.
Heat dissipation and anti-oxidation
Dissipate some heat to prevent the oxidation of lubricating oil and extend its service life.
Structural characteristics
Youdaoplaceholder0 Material : Usually made by stamping thin steel plates or casting cast iron/aluminum alloy, the complex structure can suppress oil level fluctuations.
Youdaoplaceholder0 Internal design : It is equipped with an oil stabilizing baffle to reduce turbulent impact, and an oil drain plug is set at the lowest point at the bottom for convenient maintenance.
Type difference
Youdaoplaceholder0 Wet oil pan : Commonly found in family cars, it achieves splash lubrication through the movement of the crankshaft and requires maintaining a reasonable liquid level.
Youdaoplaceholder0 Dry oil pan : mostly used in racing cars, it eliminates the oil storage function to lower the engine 's center of gravity, but it still relies on an external oil pump for fuel supply.
The removal of the engine oil pan of a car itself will not have a direct impact on the engine . The key lies in ensuring good sealing during installation; otherwise, it may lead to oil leakage and lubrication problems.
Youdaoplaceholder0 key points for disassembly and installation
Youdaoplaceholder0 Disassembly operation has no negative impact : The oil pan is an external oil storage component of the engine. Disassembly does not involve the internal core structure, and thus will not directly damage the engine performance.
Youdaoplaceholder0 Sealing performance is the core requirement : a new sealing rubber gasket must be replaced during installation, and it is necessary to ensure that the oil pan is tightly connected to the engine. If the seal is not good, it will cause oil leakage, leading to insufficient lubrication of the engine, wear and even damage.
Youdaoplaceholder0 common risk scenarios :
If the oil drain screw is stripped, the oil pan and screw need to be replaced.
The sealing gasket should be replaced simultaneously when it ages (especially for German cars, it is prone to hardening in high-temperature environments).
When oil leakage is severe, it needs to be dealt with immediately to avoid engine failure caused by lack of oil.
Youdaoplaceholder0 Maintenance suggestions
After replacing the oil pan, check the oil level to ensure it meets the standard (both too high and too low levels of the wet oil pan will affect performance).
Give priority to professional maintenance points for operation and regularly check the condition of the sealing gasket.
The treatment of oil leakage from the oil pan of a car engine needs to take different measures according to the degree of leakage : slight leakage can be temporarily observed and the oil level should be checked regularly. Obvious leakage requires replacing the seal or applying glue for repair. Severe leakage must be repaired immediately to avoid engine damage.
Youdaoplaceholder0 Cause and severity of oil leakage assessment
Youdaoplaceholder0 Slight oil leakage : It is manifested as sludge adhering to the oil pan joint or the engine surface. It is commonly seen in vehicles within 100,000 kilometers and may be related to low oil viscosity, loose oil drain screws or slight aging of the gasket. Regular checks of the oil level are required, but immediate repair is not necessary.
Youdaoplaceholder0 Obvious leakage : Accelerated oil consumption is often due to the aging of rubber parts such as the crankshaft oil seal and the oil pan sealing ring (commonly seen in vehicles with 60,000 to 150,000 kilometers), and the sealing parts need to be replaced or re-lubricated.
Youdaoplaceholder0 Severe oil leakage : A large amount of engine oil is lost, which may be due to cracks in the oil pan, damage to the cylinder block or breakage at the seal. The vehicle must be stopped immediately and inspected.
Youdaoplaceholder0 specific processing steps
Youdaoplaceholder0 initial inspection :
Clean the surface of the oil pan and locate the oil leakage point.
Check whether the oil drain screw is loose or the gasket is damaged. Tighten or replace it if necessary.
Youdaoplaceholder0 targeted repair :
Gasket aging: Disassemble the oil pan, remove the old sealant, replace the gasket or reapply sealant (such as RTV silicone).
Oil pan damage: Repair by welding (sand holes/small cracks) or replace with a new oil pan.
Crankshaft oil seal failure: Professional tools are required for replacement, involving disassembly and assembly of components.
Youdaoplaceholder0 follow-up maintenance :
When changing the engine oil, choose the appropriate viscosity (high-viscosity engine oil can alleviate minor leakage).
Regularly inspect the oil circuit, filter and vent valve to prevent excessive internal pressure from aggravating leakage.
Youdaoplaceholder0 precautions
Youdaoplaceholder0 Safety first : Ensure that the leaked oil does not come into contact with the brake discs or belts to prevent slippage.
Youdaoplaceholder0 Maintenance suggestion : Complex operations (such as crankshaft oil seal replacement) are recommended to be carried out by professional technicians to avoid secondary damage.
