What is a car cylinder bed

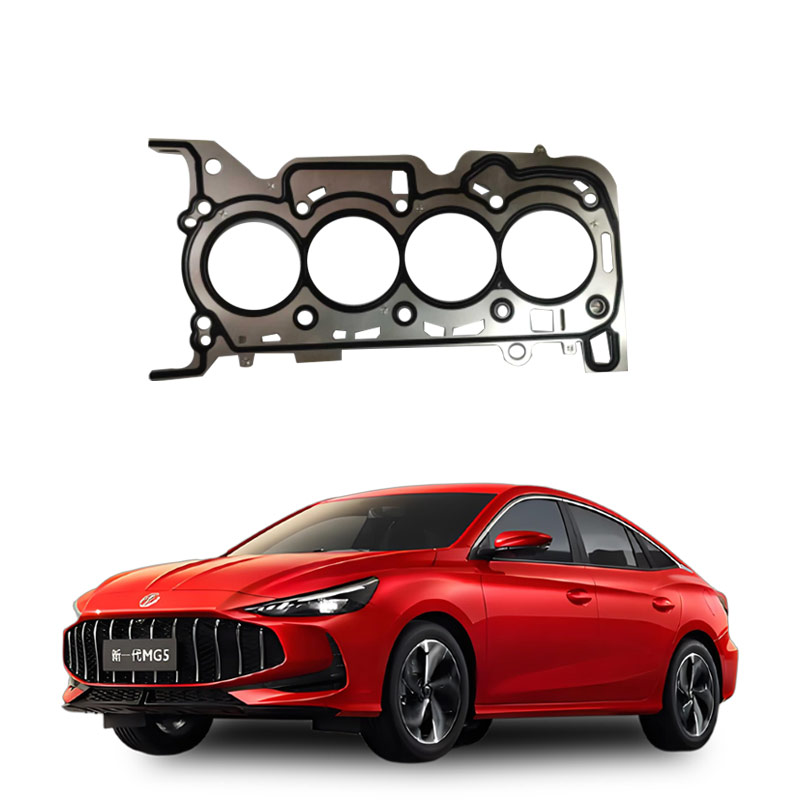

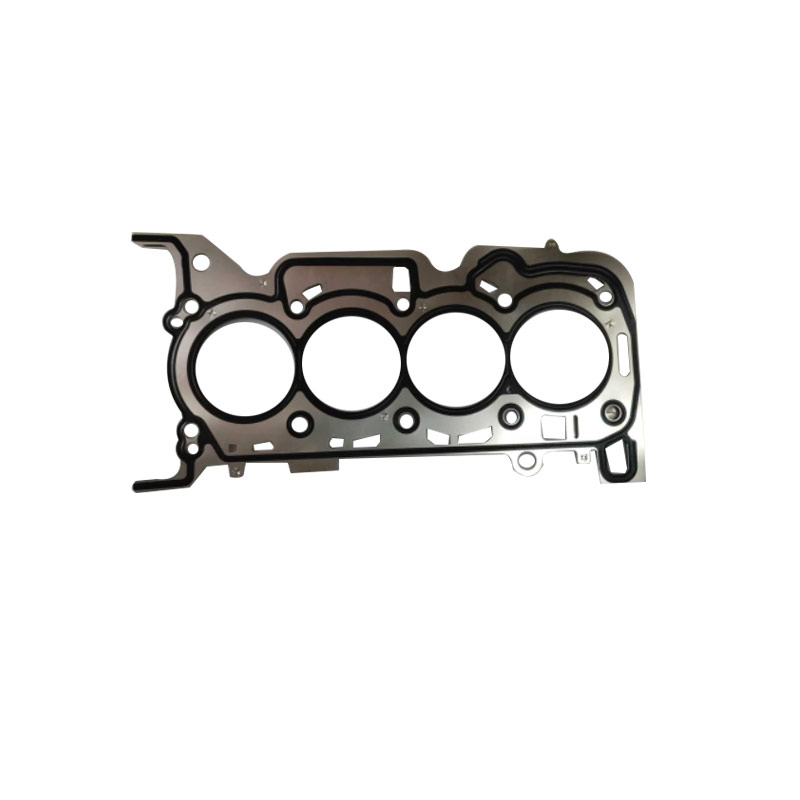

The cylinder bed of a car is a gasket structure used for sealing between the cylinder head and the cylinder block. It is mainly composed of asbestos or steel sheet and is used to prevent the high-pressure gas flow in the engine combustion chamber from leaking out.
Function and Structure
The cylinder bed, as a sealing element of the engine's core components, serves to isolate the combustion chamber from the external mechanical structure, ensuring that high-pressure gas only circulates within the combustion chamber and preventing leakage that could lead to performance degradation or mechanical failure.
Q&A
If the cylinder bed is damaged (i.e., "the cylinder bed is blown off"), it will lead to the failure of the engine's sealing performance, causing problems such as reduced power, oil emulsification, and abnormal noises. The sealing gasket needs to be replaced in time to restore its function.
The automotive cylinder bed (also known as the cylinder gasket) is a sealing element installed between the cylinder head and the cylinder block. Its main functions include:
Sealing function
Fill the microscopic pores between the cylinder block and the cylinder head to prevent gas leakage in the combustion chamber, seepage of cooling water or mixing of engine oil into the cooling system, and ensure the independence of each chamber (combustion chamber, water passage, oil passage).
Pressure-bearing effect
It can withstand the high temperature (about 100℃-200℃) and high pressure (about 1.5-4.5MPa) environment generated during the operation of the engine to prevent component damage caused by pressure imbalance.
Buffering effect
Alleviate the deformation stress caused by thermal expansion and contraction, and reduce abnormal vibration or water and oil leakage during engine operation.
Stability guarantee
Ensure the precise fit of components such as the piston movement and crankshaft rotation to prevent power reduction, increased fuel consumption or more serious mechanical failures (such as cylinder pulling) caused by seal failure.
The main phenomena of a car cylinder bed being damaged (i.e., the failure of the cylinder gasket seal) include engine weakness, air leakage sounds, abnormal cooling system (such as bubbles in the radiator, oil droplets in the cooling water), emulsification of engine oil turning milky white, drainage from the exhaust pipe, and excessively high water temperature, etc.
Youdaoplaceholder0 Core symptom manifestations
Youdaoplaceholder0 Power system abnormality .
The engine is obviously weak, making it difficult to accelerate, especially when climbing slopes or overtaking, the power is insufficient.
Some cylinders are not working, and there is obvious shaking at idle speed, accompanied by an abnormal "puffing" sound.
A sound of air leakage (similar to a "sizzling" sound) can be heard at the joint between the cylinder head and the cylinder block.
Youdaoplaceholder0 Abnormal cooling system .
The radiator is frequently short of water and bubbles keep rising from the water filling port.
Oil droplets floating on the surface of the cooling water indicate that engine oil has seeped into the coolant.
The water temperature gauge shows an abnormal increase. Even when driving normally, it may overheat.
Youdaoplaceholder0 Abnormal engine oil and exhaust .
The engine oil has emulsified and changed color (milky white or milky yellow) due to coolant mixing into the oil pan.
Water droplets are continuously discharged from the exhaust pipe as coolant enters the combustion chamber to participate in combustion.
The severity of faults distinguishes
Youdaoplaceholder0 Minor situation : A small amount of water droplets or emulsified substances on the inner side of the oil cap, and a small amount of water shortage in the radiator. It can be repaired simply by replacing the cylinder gasket.
Youdaoplaceholder0 Serious situation : Overall emulsification of engine oil, severe water shortage in the radiator, difficulty in starting. A comprehensive inspection of the lubrication and cooling systems is required.
Youdaoplaceholder0 Potential causes and maintenance suggestions
The causes include quality defects of cylinder gaskets, improper installation, overloading of the engine or deformation of the cylinder block.
Maintenance requires replacing the cylinder gasket and inspecting the piston assembly and sealing system to prevent recurrence.
If you want to know more, keep reading the other articles on this site!
