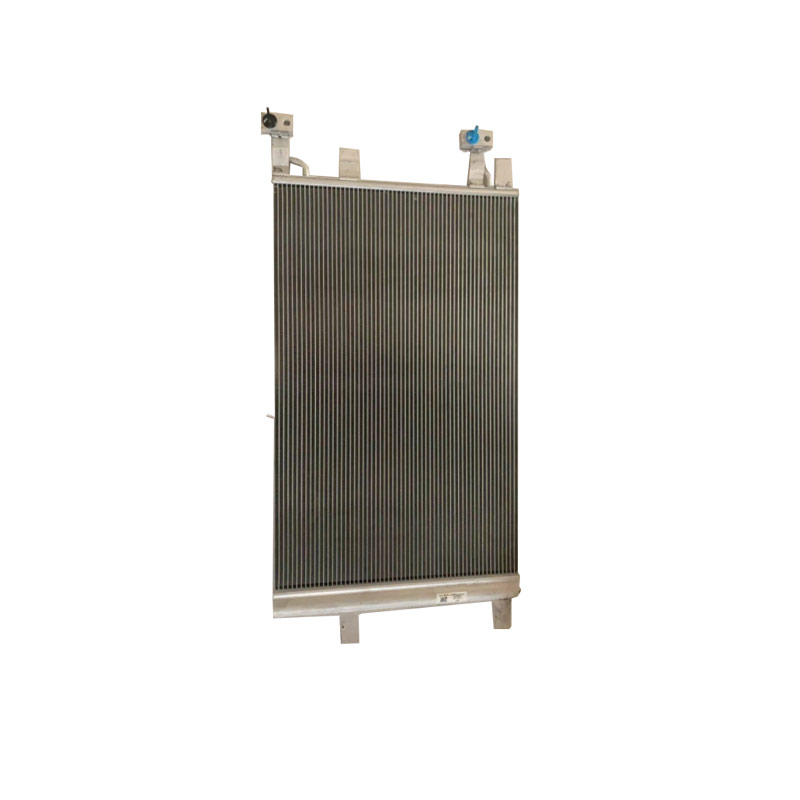

What is a car condenser
The Condenser (Condenser), a component of the refrigeration system, is a type of heat exchanger that can transform gas or vapor into liquid and transfer the heat in the tubes to the nearby air at a rapid rate. The working process of a condenser is an exothermic process, so the temperature of the condenser is always relatively high.
Power plants use many condensers to condense the steam discharged from turbines. In refrigeration plants, condensers are used to condense refrigeration vapors such as ammonia and Freon. Condensers are used in the petrochemical industry to condense hydrocarbons and other chemical vapors. In the distillation process, the device that converts vapor into liquid is also called a condenser. All condensers operate by removing the heat from gases or vapors.
Gas passes through a long tube (usually coiled into a solenoid), allowing heat to dissipate into the surrounding air. Metals like copper, which have strong thermal conductivity, are often used to transport steam. To enhance the efficiency of the condenser, heat sinks with excellent heat conduction performance are often attached to the pipes to increase the heat dissipation area and accelerate heat dissipation. Meanwhile, fans are used to speed up air convection and carry away the heat.
In the cycle system of a refrigeration machine, the compressor sucks in low-temperature and low-pressure refrigerant vapor from the evaporator. After adiabatic compression by the compressor, it becomes high-temperature and high-pressure superheated vapor, which is then pressed into the condenser for constant pressure cooling and releases heat to the cooling medium. Finally, it is cooled into subcooled liquid refrigerant. The liquid refrigerant undergoes adiabatic throttling through the expansion valve to become low-pressure liquid refrigerant. It evaporates in the evaporator and absorbs heat from the air conditioning circulating water (air), thereby cooling the air conditioning circulating water to achieve the purpose of refrigeration. The low-pressure refrigerant flowing out is sucked into the compressor, and this cycle continues.
A single-stage vapor compression refrigeration system is composed of four basic components: a refrigeration compressor, a condenser, a throttling valve and an evaporator. These components are connected in sequence by pipes to form a closed system. The refrigerant continuously circulates within the system, undergoes state changes and exchanges heat with the outside world.
In a refrigeration system, the evaporator, condenser, compressor and throttling valve are the four indispensable components, among which the evaporator is the equipment for transporting coldness. The refrigerant absorbs the heat of the cooled object in it to achieve refrigeration. The compressor is the heart, playing a role in drawing in, compressing and transporting the refrigerant vapor. The condenser is a device that releases heat, transferring the heat absorbed in the evaporator along with the heat converted from the work of the compressor to the cooling medium for removal. The throttle valve plays a role in throttling and reducing the pressure of the refrigerant, while controlling and regulating the amount of refrigerant liquid flowing into the evaporator, and dividing the system into two major parts: the high-pressure side and the low-pressure side. In actual refrigeration systems, apart from the above four major components, there are often some auxiliary devices, such as solenoid valves, distributors, dryers, heat collectors, fusible plugs, pressure controllers and other components. They are set up to improve the economy, reliability and safety of operation.
Air conditioners can be classified into two types based on their condensation forms: water-cooled and air-cooled. According to their usage purposes, they can be divided into single-cooling and cooling and heating types. Regardless of the composition of either type, they are all composed of the following main components.
The necessity of a condenser is based on the second law of thermodynamics - according to the second law of thermodynamics, the spontaneous flow direction of thermal energy within a closed system is unidirectional, that is, it can only flow from high heat to low heat. In the microscopic world, this is manifested as the microscopic particles carrying thermal energy can only change from order to disorder. Therefore, when a heat engine is doing work with energy input, there must also be energy release downstream. Only in this way can there be a thermal energy gap between the upstream and downstream, making the flow of thermal energy possible and allowing the cycle to continue.
Therefore, if one wants the carrier to do work again, it is necessary to first release all the heat energy that has not been completely released. At this point, a condenser is needed. If the surrounding heat energy is higher than the temperature inside the condenser, in order to cool down the condenser, artificial work must be done (generally by using a compressor). After condensation, the fluid returns to a state of high order and low heat energy and can do work again.
The selection of condensers includes the choice of form and model, as well as the determination of the flow rate and resistance of the cooling water or air passing through the condenser. The selection of condenser type should take into account the local water source, water temperature, climatic conditions, as well as the total cooling capacity of the refrigeration system and the layout requirements of the refrigeration machine room. Under the premise of determining the type of condenser, the heat transfer area of the condenser is calculated based on the condensing load and the heat load per unit area of the condenser, so as to select the specific model of the condenser.
