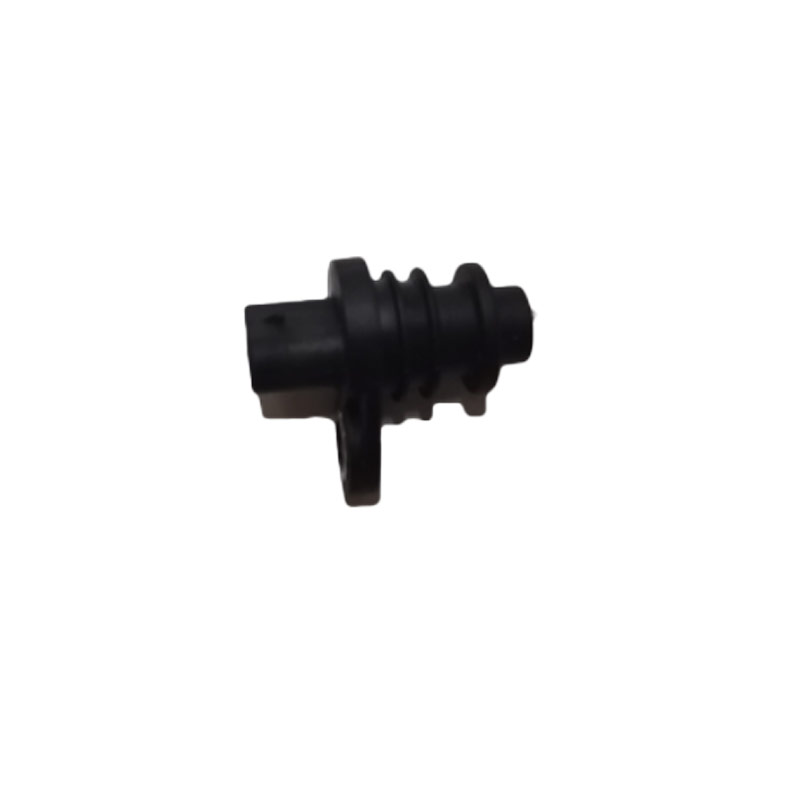

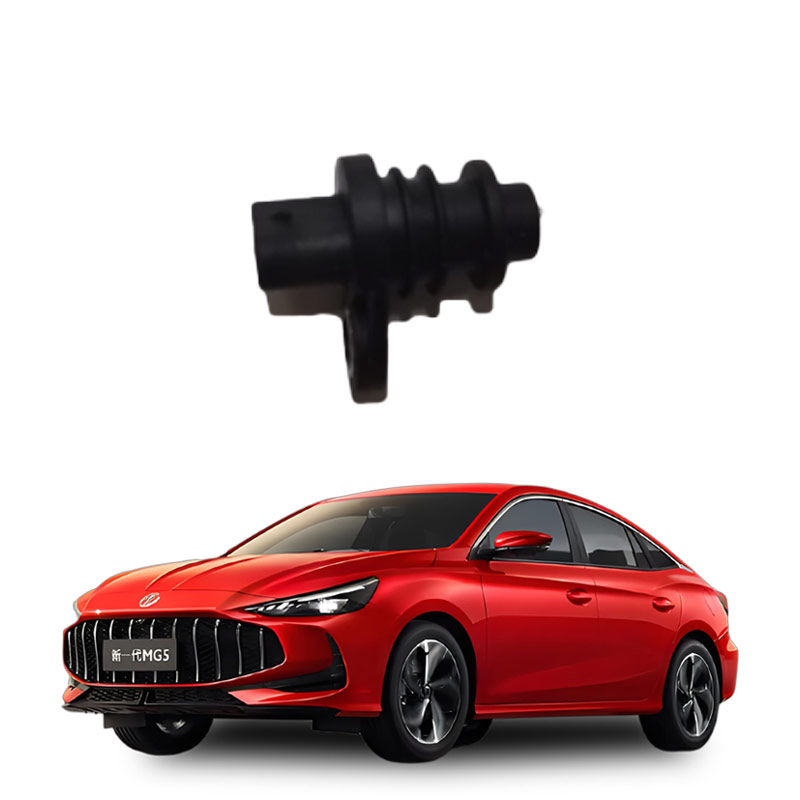

What is an automotive camshaft sensor
The automotive camshaft sensor (also known as the synchronous signal sensor) is a device used to detect the position and Angle of the camshaft, providing the main signal for ignition control to the ECU to ensure the efficient and stable operation of the engine.
Core function
Youdaoplaceholder0 Determine the cylinder discrimination and positioning : By detecting the real-time position of the camshaft, it helps the ECU accurately identify the top dead center of the first cylinder piston compression, achieving sequential fuel injection control, ignition timing adjustment and detonation control.
Youdaoplaceholder0 Signal input to ECU : Convert the dynamic Angle of the camshaft into an electrical signal input to the ECU, which serves as the main control basis for ignition and fuel injection.
Installation location
It is usually installed at the front end of the camshaft cover (such as the front end of the No. 1 intake camshaft of the Toyota K3-VE engine), and in some models, it is installed inside the high-pressure oil pump or distributor.
Type and working principle
It adopts a magnetic-electric structure. By detecting the changes in the induced current caused by the magnetic changes when the CAM rotates, it converts it into a position signal. For instance, the three-pin magneto-electric sensor of the Toyota K3-VE engine outputs pulse signals through the time pin (representing 60°, 180°, and 360° crank angles).
The core symptoms of a faulty camshaft sensor in a car include difficulty in starting, unstable idle speed, increased fuel consumption, illuminated fault lights, weak acceleration and body shaking . These symptoms result from the sensor's inability to accurately transmit camshaft position signals to the ECU, leading to disorders in the ignition and fuel injection systems.
The main symptoms of are
Youdaoplaceholder0 difficulty in starting or inability to start : The ignition sequence is disordered, the engine is hard to start, and it may suddenly stall when warming up.
Youdaoplaceholder0 Unstable idle speed and vehicle body shaking : The ECU receives chaotic signals, resulting in significant fluctuations in idle speed and abnormal vehicle shaking.
Youdaoplaceholder0 Significant increase in fuel consumption : The fuel injection system operates disorderly, resulting in incomplete fuel combustion and an increase in fuel consumption.
Youdaoplaceholder0 Weak acceleration and jerky driving : The ECU fails to precisely control fuel injection and ignition, resulting in soft power output and sluggish or jerky acceleration.
The fault light remains on : the OBD system detects an anomaly and triggers the engine fault light (such as P0340-P0344 fault codes).
Youdaoplaceholder0 Accelerated engine wear : Long-term malfunctions may lead to incomplete combustion and intensify internal engine wear.
Youdaoplaceholder0 potential impact
Faults may cause deterioration of emissions, power limitation (limping mode), or stalling while driving. Timely maintenance is required to prevent engine damage.
The camshaft sensor of automobiles needs targeted cleaning based on usage conditions . When there is a decrease in power, abnormal fuel consumption or fault codes, cleaning can effectively restore the performance of the sensor. If there are no abnormalities, frequent cleaning is not necessary.
Youdaoplaceholder0 determination of the necessity of cleaning
Youdaoplaceholder0 must be cleaned :
The engine experienced abnormal phenomena such as difficulty in starting, power interruption, and a sharp increase in fuel consumption (for instance, in the case of BMW, the fuel consumption dropped from 12.8L to 8.2L/100km).
The ECU detects fault codes related to the camshaft position sensor (such as P0340/P0341).
Oil sludge or iron filings adhering to the sensor surface (if the thickness exceeds 0.3mm, they need to be treated).
Youdaoplaceholder0 situations where no cleaning is required :
The sensor is wrapped in an integrated filter screen and continuously flushed with engine oil (as designed in some vehicle models).
Under regular maintenance, the engine operates smoothly without any fault codes.
Youdaoplaceholder0 Professional cleaning operation guide
Youdaoplaceholder0 key points for disassembly and assembly :
Use a 10mm sleeve and rotate it 30° in reverse to unlock. Gently shake it to prevent the magnetic components from falling off.
Disconnect the negative terminal of the battery to prevent a short circuit.
Youdaoplaceholder0 cleaning specifications :
Spray the carburetor cleaner at a 45° Angle, focusing on cleaning the rotor gaps (for no more than 2 minutes).
For stubborn stains, use a soft-bristled brush in combination with an electronic cleaner to gently scrub.
Youdaoplaceholder0 acceptance criteria :
The duty cycle of square waves detected by an oscilloscope should be between 45% and 55%.
After reinstallation, the fault code needs to be cleared and the circuit test certificate connected.
Youdaoplaceholder0 Maintenance cycle recommendation:
Youdaoplaceholder0 preventive cleaning :
Check synchronously every 60,000 kilometers or when the timing belt is replaced.
Vehicles that have been using low-quality engine oil for a long time should have their inspection shortened to 30,000 kilometers.
Youdaoplaceholder0 daily maintenance :
Check whether the sensor plug is leaking oil every time you change the engine oil.
Keep the engine compartment clean and avoid direct spray of high-pressure water guns on the sensor area.
If you want to know more, keep reading the other articles on this site!
