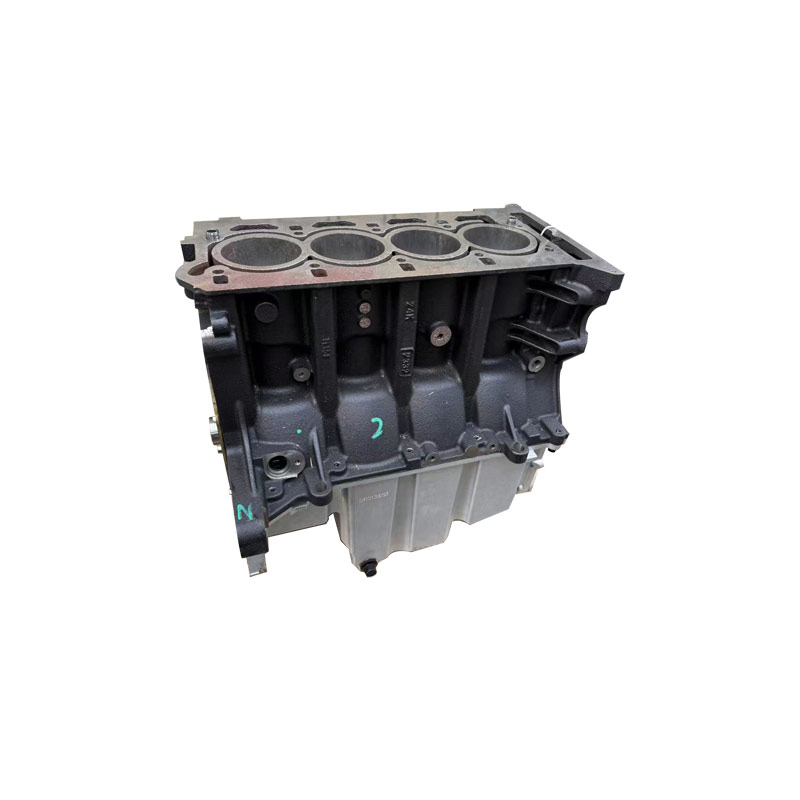

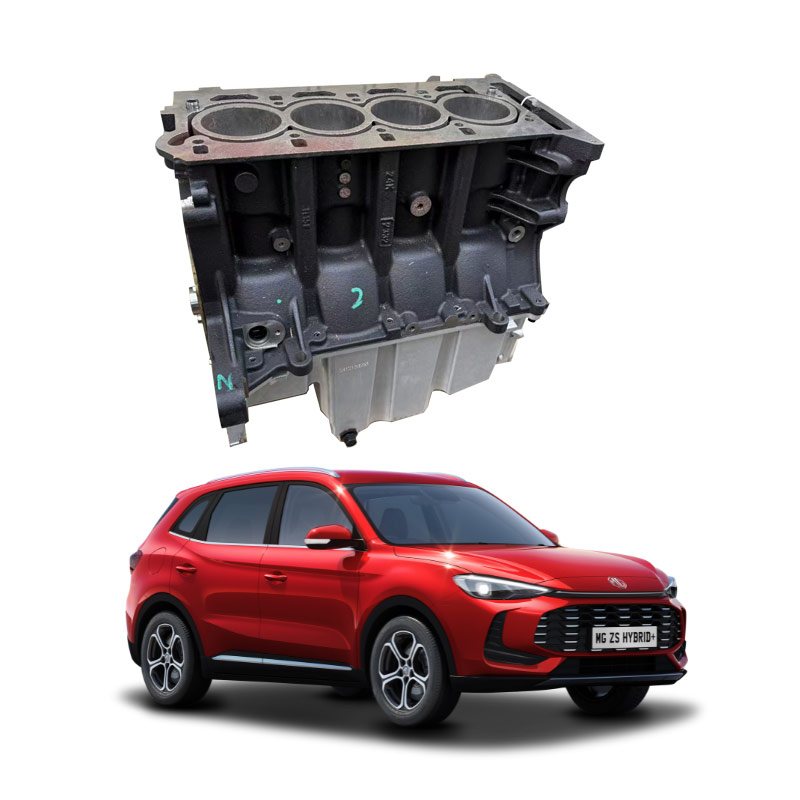

What are the main moving parts assemblies of the engine?
The main moving component assembly of an engine, usually referred to as the crankshaft and connecting rod mechanism, is the core moving component of the engine that enables energy conversion.
This assembly is mainly composed of the following components:
The piston: Moves back and forth in the cylinder, bearing the pressure from the combustion gases.
The piston ring: Installed on the piston, it serves the functions of sealing, heat transfer, and oil scraping.
The piston pin: Connects the piston to the connecting rod, transmitting power.
The connecting rod: Transfers the piston's reciprocating motion to the crankshaft and converts it into rotational motion.
The crankshaft: Receives the power from the connecting rod and converts the piston's linear motion into rotational motion, serving as the output shaft of the engine.
The flywheel: Installed at the rear end of the crankshaft, it stores and releases energy to make the engine run more smoothly and act as a coupling component for starting and transmission.
These components work together to complete the conversion from chemical energy to mechanical energy, making it the core moving assembly of the engine.
In an engine, "the main moving component assembly" usually refers to the crankshaft and connecting rod mechanism, which is the core set of moving components that enables energy conversion in the engine.
Its main function is to convert the thermal energy generated by the combustion of fuel in the cylinder into rotational mechanical energy, thereby driving the vehicle or machinery to operate.
The specific working process is as follows:
The piston moves back and forth in the cylinder, bearing the high-pressure push from the combustion gases.
The connecting rod connects the piston to the crankshaft, transmitting the piston's linear motion and converting it into the rotation of the crankshaft.
The crankshaft (usually integrated with the crankshaft) transmits the rotational power to the gearbox, drive wheels, or other working machinery.
The flywheel (usually integrated with the crankshaft) stores energy and makes the engine run more smoothly, overcoming the resistance of non-working strokes.
Therefore, the crankshaft and connecting rod mechanism is the key moving component assembly that enables the conversion of "chemical energy → thermal energy → mechanical energy" in the engine, and is hailed as the "skeleton" and power output center of the engine.
The main moving component assembly of an engine usually refers to the set of components within the engine that are responsible for the core movement, mainly including the crankshaft, connecting rod, piston, piston ring, valves, camshaft, timing chain or belt, etc. These components work together to convert the energy generated by fuel combustion into mechanical motion. When these key components fail, it will directly lead to a decline in engine performance or even complete failure.
The typical manifestations of faults in the main moving component assembly of the engine include:
Abnormal noise: Clear "tap-tap-tap" knocking sounds (knocking), metal collisions, or heavy "clunking" sounds occur inside the engine, which is usually caused by severe wear, excessive clearance, or poor lubrication of the piston, connecting rod bearings, or crankshaft main bearings. Loose timing chain/belt or skipping teeth will also produce special noises.
Severe power reduction and vibration: The vehicle lacks acceleration power, responds slowly, and experiences obvious and continuous vibrations at idle or while driving. This may be due to piston ring wear causing insufficient cylinder pressure, loose valve seals, or misalignment of the timing, resulting in a significant reduction in combustion efficiency.
Excessive exhaust emissions: The exhaust pipe continuously emits thick blue smoke, which is a sign of oil spilling into the combustion chamber being burned, often caused by piston ring wear, aging valve seals, or scratches on the cylinder wall. In severe cases, there may also be black smoke (incomplete combustion) or white smoke (coolant entering the combustion chamber).
Difficulty starting or inability to start: Although the starter may work normally, the engine cannot ignite and run. This may be due to excessive internal mechanical resistance (such as cylinder pulling, shaft seizing) or a complete breakage of the timing system causing interference between the valves and the piston.
Abnormal oil consumption: In the absence of obvious external oil leakage, the oil level drops rapidly and requires frequent refills, which is direct evidence of internal wear causing oil burning. Engine overheating: Excessive internal friction (such as bearing wear, cylinder seizure) or the cooling system malfunctioning (such as failure of the water pump drive) preventing it from functioning properly leads to a sharp increase in water temperature.
These faults are often caused by factors such as long-term lack of maintenance, use of poor-quality engine oil, cooling system problems, or excessive engine load operation. Once these symptoms occur, especially persistent knocking sounds, severe shaking, or black smoke emission, one should immediately stop driving and seek professional repair. Otherwise, it is highly likely to result in the completeof the engine.
