What is the principle of a car water spray motor

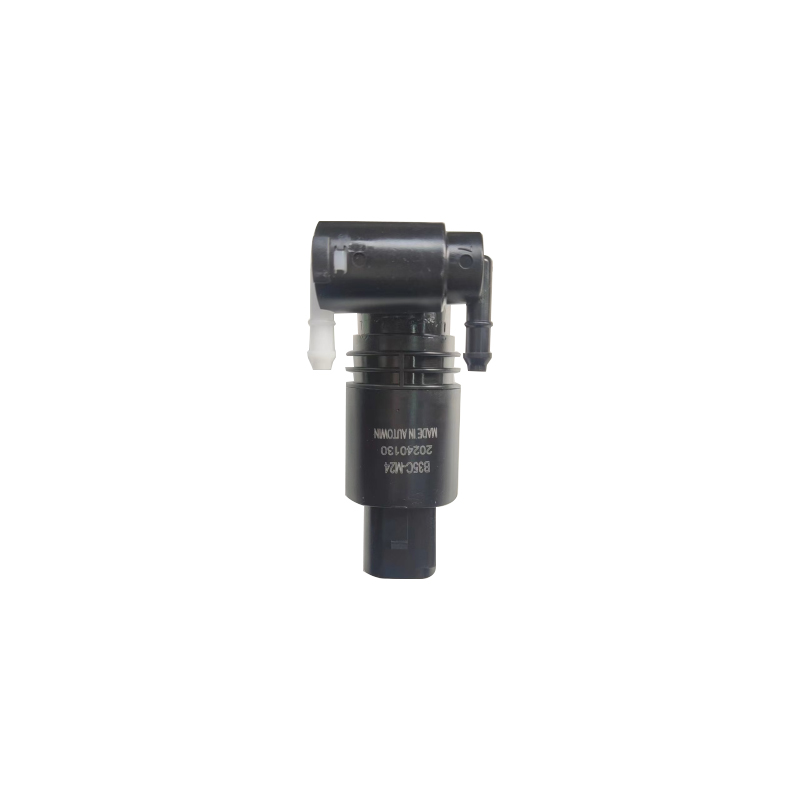

The car water spray motor is a key component in the wiper system that drives the cleaning fluid to spray out. Its working principle is based on electrical energy conversion and fluid dynamics. When the driver operates the water spray switch, the circuit is connected and the DC motor starts to run, converting electrical energy into mechanical energy and driving the impeller of the water pump to rotate at high speed. The rotation of the impeller generates centrifugal force, which draws out the cleaning fluid (windshield washer fluid) in the storage tank and pressurizes it. The pressurized liquid is transported through water pipes to the nozzles below the windshield and is eventually sprayed out in a fan shape or mist, working in conjunction with the wipers to remove dust, insect glue and other stains, enhancing the clarity of the driving field of vision.
Youdaoplaceholder0 The core components of this system include a motor, a water pump and a nozzle. Youdaoplaceholder1 among them, the motor serves as the power source, the water pump is responsible for pressurization, and the nozzle controls the spray shape. Some models also integrate protection devices such as liquid level sensors and pressure sensors to monitor the amount of cleaning fluid and system pressure, preventing abnormal operation.
The water spray motor of a car is a key component of the wiper system, mainly responsible for providing power for cleaning the windshield.
The core function of is to drive the cleaning solution to spray : when the driver operates the water spray switch, the motor is powered on and starts to operate, driving the water pump to work, pressurizing the glass water in the storage tank and transporting it through pipes to the nozzles to achieve precise spraying.
This process can quickly remove rainwater, dust or dirt from the windshield. Combined with the scraping effect of the wipers, effectively improves the clarity of the driving field of vision in bad weather, thereby ensuring driving safety .
The working principle of is based on a micro DC motor : the motor is usually powered by DC. After being powered on, it drives the impeller to rotate and generate pressure, which draws the cleaning liquid from the water tank and sprays it out through the nozzle.
This system is particularly important in environments with heavy rain, snow, smog or dust, as it can quickly improve visibility and ensure driving comfort and safety.
A malfunction of the car's water spray motor can prevent the wipers from spraying water, affecting the driver's vision and cleanliness. Common causes include damage to the motor itself, circuit problems, pipe blockage or nozzle failure, etc.
Youdaoplaceholder0 Fault manifestations and initial judgment: When the water spray motor malfunctions, the following manifestations are usually present:
When the water spray switch is pressed, no slight sound of the motor running can be heard, or there may be a burnt smell.
The wiper doesn't work or only sprays water without scraping, or vice versa.
The water spray is weak, intermittent or completely absent.
A preliminary judgment can be made by first checking whether the glass water in the liquid storage tank is sufficient, whether the nozzle is clogged with dust or scale (a pin can be used to carefully clear it), and checking whether the spray pipe is cracked or fallen off.
Common causes and troubleshooting steps of :
Youdaoplaceholder0 Circuit and fuse issues : Check whether the fuse and relay of the water spray motor are blown or damaged. Use a multimeter to measure the voltage of the motor plug. It should be 12 volts normally. If there is no voltage, it is necessary to check for poor contact in the line or switch faults.
Youdaoplaceholder0 motor itself fault : If the motor is powered on but there is no response, abnormal noise or a burnt smell is detected, it may be that the internal parts are worn or burned out and need to be replaced.
Youdaoplaceholder0 Pipe and nozzle blockage : Impurities blocking the spray pipe or nozzle can cause poor water spraying. The pipe needs to be cleaned or the nozzle replaced.
Youdaoplaceholder0 Other factors : Aging and leakage of the pump sealing ring, worn brushes or loose wiring may also cause faults.
Youdaoplaceholder0 Maintenance methods and precautions:
Youdaoplaceholder0 Simple troubleshooting : Add antifreeze liquid when the windshield washer fluid is insufficient; Nozzle blockage can be cleared by itself. If the fuse blows, it needs to be replaced with the same specification.
Youdaoplaceholder0 Motor replacement : If it is confirmed that the motor is damaged, the old motor needs to be disassembled (disconnect the power supply and water pipes, unscrew the fixing screws), install a new motor and ensure that the interface is sealed.
Youdaoplaceholder0 Professional repair : If the fault persists after investigation or involves complex circuit issues (such as J519 module failure), it is recommended to send it to a professional repair shop for repair to avoid further damage caused by self-operation.
In daily maintenance, regularly checking the glass water level and nozzle condition can prevent some faults. Antifreeze windshield washer fluid should be used in winter to prevent freezing and damage to the motor.
