What is a car valve oil seal

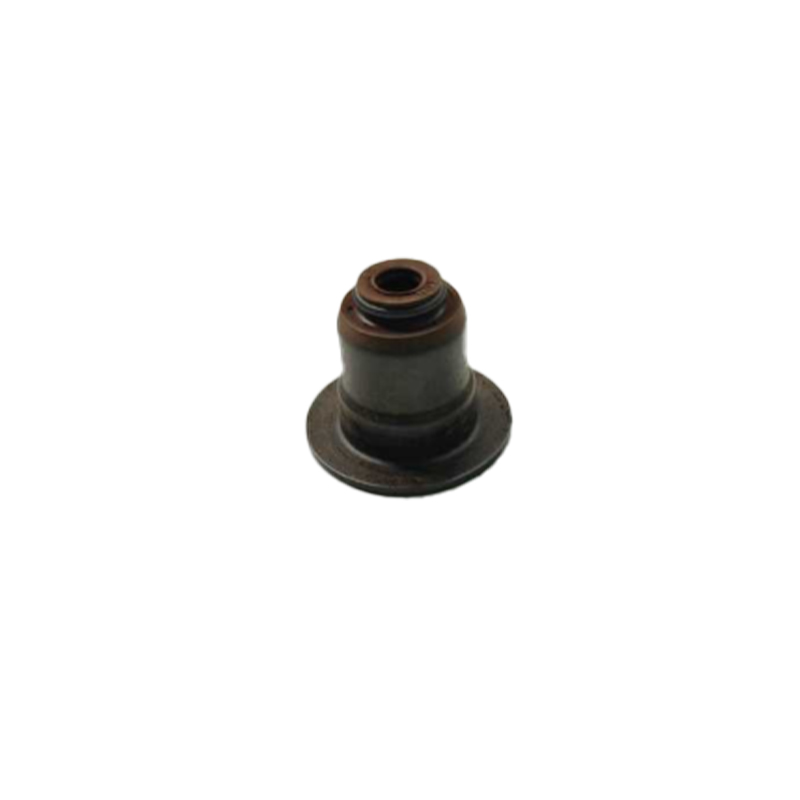

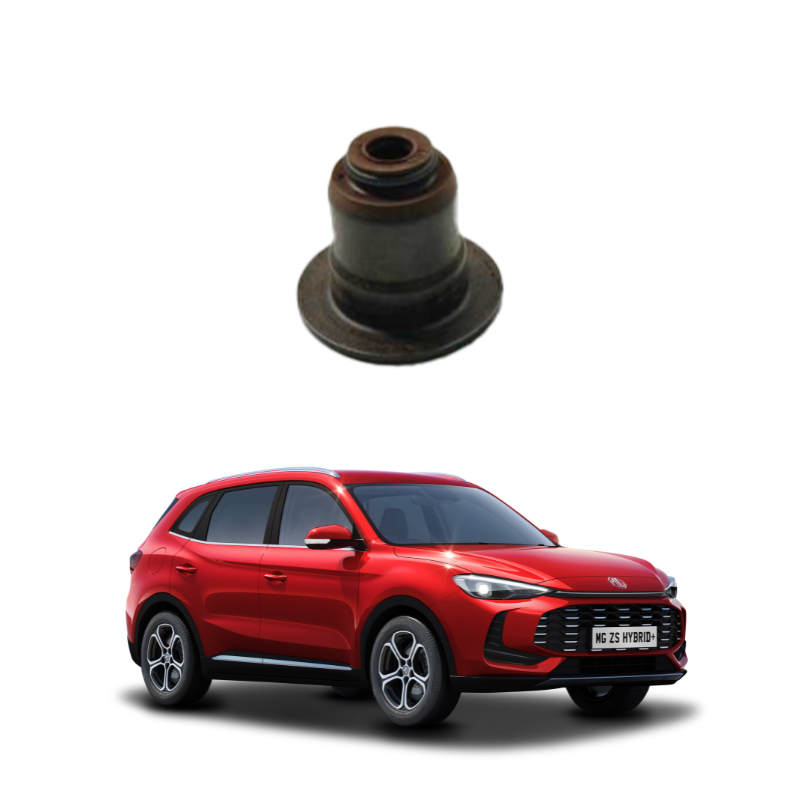

The Valve stem seal is a type of oil seal. Generally, it is vulcanized jointly by the outer skeleton and fluororubber. A self-tightening spring or steel wire is installed at the orifice of the oil seal, which is used for sealing the valve guide rod of the engine.
Valve oil seals can prevent engine oil from entering the intake and exhaust pipes, avoid oil loss, prevent the mixture of gasoline and air as well as the leakage of exhaust gases, and prevent engine oil from entering the combustion chamber. The valve oil seal is one of the important parts of the engine valve group. It comes into contact with gasoline and engine oil at high temperatures, so materials with excellent heat resistance and oil resistance need to be used. Generally, it is made of fluororubber.
The valve oil seal of a car is a key component of the engine valve assembly. Its core function is to ensure the seal at the valve guide rod and prevent the leakage of engine oil and gas.
The valve oil seal achieves its function through a physical sealing mechanism: it is usually made of an outer skeleton and fluororubber vulcanized, with a self-tightening spring or steel wire installed at the diameter opening. This structure can closely adhere to the valve guide rod, forming a dynamic seal.
When the engine is running, the valves move repeatedly, and the oil seal remains in close contact under the pressure of the spring, effectively preventing the engine oil from seeping into the exhaust pipe along the guide rod, thus avoiding oil loss and combustion chamber contamination. At the same time, it prevents the leakage of high-pressure gases (such as mixtures or exhaust gases) in the combustion chamber, maintaining the engine's compression efficiency and emission control.
In terms of material selection, the valve oil seal adopts high-performance materials such as fluororubber. Youdaoplaceholder1 Because it needs to work for a long time in high-temperature, engine oil and gasoline environments, fluororubber has excellent heat resistance, oil resistance and elasticity, ensuring the reliability of the seal.
The valve oil seal is a key sealing component of the engine valve assembly. Its main function is to prevent engine oil from entering the intake and exhaust pipes and the combustion chamber. When the valve oil seal is damaged or aged, it will cause a series of fault phenomena and affect the engine performance.
Youdaoplaceholder0 Fault phenomena and effects Typical manifestations of valve oil seal faults include:
Youdaoplaceholder0 Blue smoke from exhaust : When the engine starts, accelerates rapidly or idles, if the exhaust pipe continuously emits light blue smoke, this is a direct signal that the engine oil has entered the combustion chamber and is burning.
Youdaoplaceholder0 Abnormal oil consumption : The oil level drops at an accelerated rate. If the consumption exceeds 0.3 liters per 1,000 kilometers (the public standard is ≤0.5 liters per 1,000 kilometers), be vigilant.
Youdaoplaceholder0 Carbon deposits on spark plugs : Engine oil entering the combustion chamber can cause grease or carbon deposits on the spark plug electrodes, which may lead to poor ignition, reduced power or idle vibration.
Youdaoplaceholder0 Engine performance decline : Weakened cylinder sealing may lead to insufficient compression pressure, which is manifested as weak acceleration, increased fuel consumption or louder noise.
Long-term neglect may accelerate wear due to insufficient lubrication and even cause serious malfunctions such as cylinder explosion.
Youdaoplaceholder0 diagnostic methods can be screened through the following steps:
Youdaoplaceholder0 Observe the exhaust gas and conduct basic checks : pay attention to the color of the smoke in the exhaust pipe during cold start or sudden acceleration; Regularly check the oil dipstick to confirm the consumption. Wipe the inner wall of the exhaust pipe or remove the spark plugs. Residual oil can prove that engine oil has seeped in.
Youdaoplaceholder0 Professional inspection : If the basic inspection is abnormal, an endoscope should be used to check the carbon deposits in the cylinder, or a cylinder pressure test should be conducted (if the pressure is too low, the valve oil seal should be given special attention).
Youdaoplaceholder0 Handling and preventive measures Once the valve oil seal is damaged, it cannot be repaired and must be replaced. Professional tools and experience are required for operation. It is recommended to send for repair
Youdaoplaceholder0 Key points for replacement : If there is a fault in a single or double cylinder, partial replacement can be carried out. If multiple cylinders are damaged, it is recommended to remove the cylinder heads and replace them as a whole. When replacing, keep the environment clean, use original factory parts, and install it properly (such as applying engine oil to lubricate the new oil seal).
Youdaoplaceholder0 Preventive suggestions : Regular maintenance (replace fully synthetic engine oil and oil filter every 5,000 to 8,000 kilometers), and use fuel additives that meet standards to reduce carbon deposits; Avoid prolonged high-speed driving or sudden acceleration to reduce the load on the engine.
