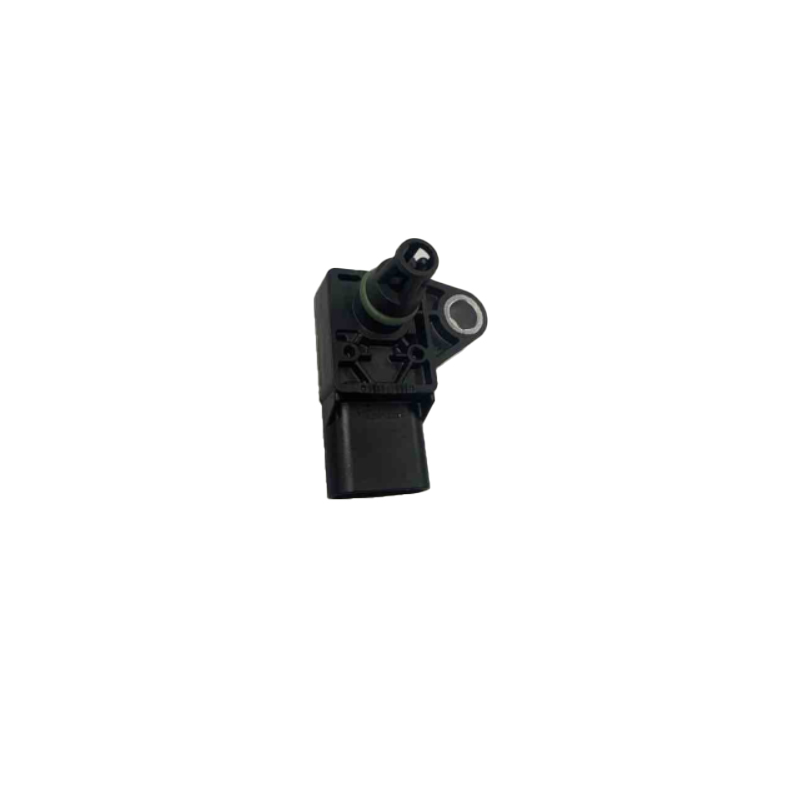

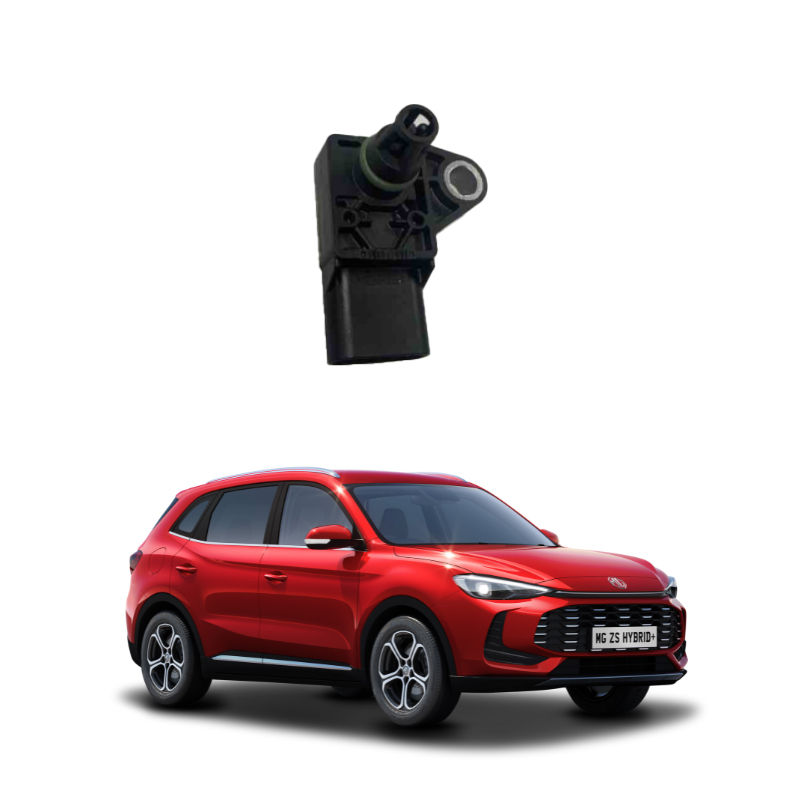

What is a car intake pressure sensor
The automotive intake pressure sensor (MAP sensor) is an electronic component used to detect the absolute pressure in the engine intake manifold. By converting pressure changes into voltage signals, it provides data to the ECU to control fuel injection volume and ignition timing . The following is the specific explanation:
Core function
Monitor the intake manifold pressure: Connect the intake manifold with a vacuum tube to sense the absolute pressure changes behind the throttle.
Control engine parameters: The ECU adjusts the fuel injection timing and ignition advance Angle based on sensor signals to optimize power output and fuel consumption.
Working principle
Pressure sensing: Internal sensitive components (such as varistors, capacitive diaphragms) sense pressure changes and convert them into changes in resistance or capacitance.
Signal conversion: The integrated circuit amplifies the changes and converts them into voltage signals, which are then transmitted to the ECU.
Application scenarios
D-type injection system: Indirectly detects the intake air volume. Unlike direct flow sensors (MAF), it needs to be calculated in combination with rotational speed and load.
Fault impact: Damage may cause the mixture to be too rich or too lean, power to decrease or fuel consumption to increase.
Maintenance suggestions
Regular inspection: Pay attention to the connection of vacuum tubes and the stability of signals to avoid errors caused by carbon deposits or aging.
The automotive intake pressure sensor is one of the important components in the engine management system. Its main function is to monitor the air pressure in the intake manifold and transmit the data in real time to the engine control unit (ECU). By precisely measuring the intake pressure, the ECU can calculate the appropriate fuel injection volume and ignition timing, thereby ensuring the efficient and stable operation of the engine under different working conditions.
Working principle
The intake pressure sensor is usually installed on the intake manifold and works by sensing the changes in air pressure inside the intake manifold. The core component inside the sensor is a varistor or capacitive sensing element. When the air pressure changes, the resistance or capacitance value of the sensing element changes accordingly, thereby generating a corresponding electrical signal. After receiving this signal, the ECU combines the data from other sensors (such as air flow sensors, throttle position sensors, etc.) to comprehensively calculate the current fuel quantity and ignition timing required by the engine.
The combustion efficiency of an engine is closely related to the air-fuel ratio. The intake pressure sensor helps the ECU accurately determine the amount of air entering the cylinder, thereby adjusting the fuel injection volume to achieve the ideal mixture ratio. If the sensor fails, it may cause the mixture to be too rich or too lean, affecting power output and increasing fuel consumption.
Adapt to different working conditions
The intake pressure will change under different working conditions such as idling, acceleration and deceleration. Sensors monitor these changes in real time, enabling the ECU to dynamically adjust fuel supply and ignition timing, ensuring the smooth operation of the engine. For instance, during rapid acceleration, the intake pressure rises, and the ECU will increase the fuel injection volume to provide stronger power.
Improve fuel economy
By precisely controlling the air-fuel ratio, the intake pressure sensor helps to reduce unnecessary fuel consumption. If the sensor signal is abnormal, the ECU may not be able to accurately adjust the fuel injection volume, resulting in an increase in fuel consumption.
Reduce emissions
A reasonable air-fuel ratio not only enhances combustion efficiency but also reduces the emission of harmful gases. The normal operation of the intake pressure sensor helps the engine meet environmental protection requirements and reduce pollutants in the exhaust gas.
Common types
The common intake pressure sensors currently available on the market mainly include the following types:
Piezoresistive sensor: It utilizes the piezoresistive effect of semiconductor materials to convert changes in air pressure into electrical signals.
Capacitive sensor: It measures pressure by detecting changes in capacitance values caused by variations in air pressure.
Thin-film sensor: It adopts thin-film strain gauge technology and features high precision and stability.
Fault manifestations and impacts
Once the intake pressure sensor malfunctions, the operating state of the engine may be significantly affected. Common fault manifestations include:
Unstable idle speed: Abnormal sensor signals may cause the ECU to fail to correctly control the idle speed, resulting in engine shaking or stalling.
Power decline: If the intake pressure data received by the ECU is inaccurate, it may lead to insufficient fuel injection, resulting in weak acceleration.
Increased fuel consumption: Incorrect pressure signals may cause the ECU to misjudge the intake volume, resulting in excessive fuel supply.
When the fault light is on: The ECU of modern vehicles monitors sensor signals. Once an anomaly is detected, the engine fault light may be illuminated.
Maintenance and inspection
To ensure the normal operation of the intake pressure sensor, it is recommended to conduct the following regular checks:
Clean the sensor: After long-term use, dust or oil stains may accumulate on the surface of the sensor, affecting the measurement accuracy. You can gently wipe it with a special cleaner.
Check the line connection: Loose or corroded sensor plugs or wire harnesses may cause abnormal signal transmission. It is necessary to ensure reliable connection.
Use diagnostic tools for detection: If the engine operates abnormally, the fault code can be read through the OBD diagnostic instrument to determine whether the sensor is working properly.
The synergy with other sensors
The intake pressure sensor does not work independently. It works together with other sensors to provide data support for the ECU. For example:
Air flow sensor: Directly measures the amount of air entering the engine and verifies it with the data from the intake pressure sensor.
Throttle position sensor: Monitors the throttle opening to help the ECU calculate the intake volume more accurately.
Oxygen sensor: Feedback the composition of the exhaust gas after combustion, further optimizing the air-fuel ratio.
Technological development trends
With the advancement of automotive electronic technology, the accuracy and reliability of intake pressure sensors have been continuously improving. In the future, integration and intelligence will become the development direction. For instance, the intake pressure sensor and the temperature sensor can be integrated into the same module to reduce space occupation and enhance data consistency. The application of new materials may further enhance the high-temperature resistance and anti-interference capabilities of sensors.
In summary, the intake pressure sensor of a car plays a crucial role in the engine management system. Its normal operation directly affects the engine's power performance, economy and emission performance. Understanding its function and common fault manifestations can help car owners identify and solve problems in a timely manner, ensuring that the vehicle is in good operating condition.
