What is the function of the intake pressure sensor in a car

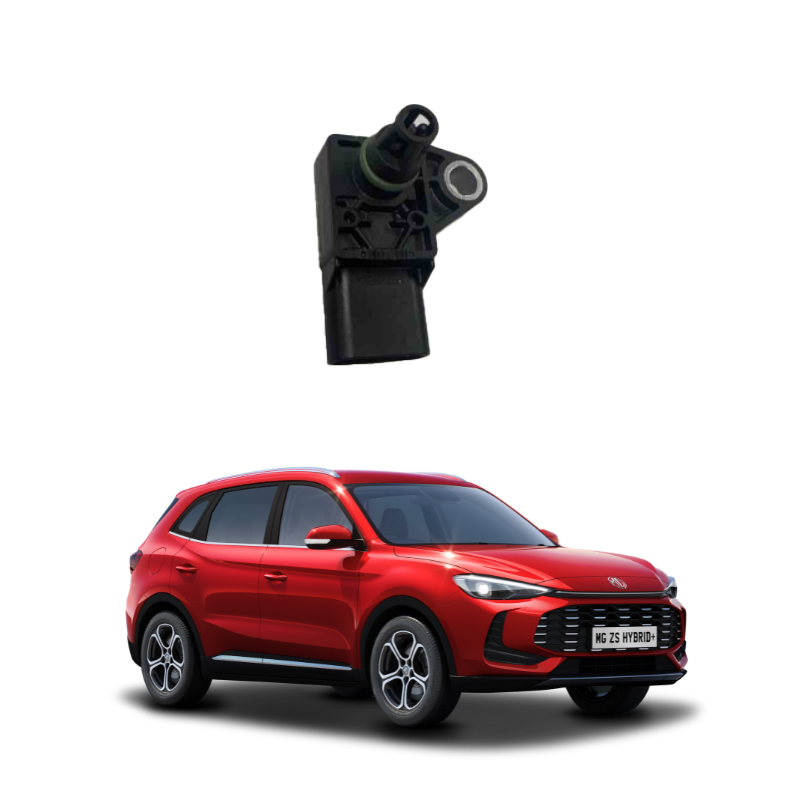

The core function of the automotive intake pressure sensor (MAP sensor) is to monitor the absolute pressure in the engine intake manifold and convert the pressure signal into an electrical signal to be transmitted to the engine ECU (Electronic Control Unit), which serves as the key basis for the ECU to calculate the fuel injection volume and ignition advance Angle.
Its specific working logic and functional extension can be divided into the following two points:
The intake manifold pressure of the engine will change at different speeds and loads when fuel supply is matched to different working conditions. For instance, when the throttle opening is large (under heavy load), the intake manifold pressure is high, and the ECU increases the fuel injection volume based on the sensor signal. When the throttle opening is small (under low load), the pressure is low, and the ECU reduces the fuel injection volume to ensure that the air-fuel ratio of the engine remains within the optimal range under various operating conditions and improve combustion efficiency.
In an engine equipped with turbocharging, the intake pressure sensor can also assist in monitoring whether the boost pressure is normal, preventing excessive boost from causing engine failure. Some models will also combine its signals to optimize idle control and exhaust purification efficiency.
The common faults of automotive intake pressure sensors (MAP sensors) and the corresponding vehicle symptoms mainly fall into the following categories:
Sensor circuit fault
This includes situations such as short circuits, open circuits, oxidized plugs, and poor contact.
Corresponding symptoms: Unstable engine idle speed, weak acceleration, and in severe cases, stalling may occur. The ECU may record the fault code and light up the engine fault indicator.
The internal components of the sensor are damaged
The core issue lies in the failure of components such as the pressure sensing chip and signal amplification circuit of the sensor, which makes it impossible to accurately feedback the intake manifold pressure signal.
Corresponding symptoms: Inaccurate calculation of fuel injection volume, resulting in overly rich or lean mixture. When the mixture is too rich, black smoke comes out of the exhaust pipe and fuel consumption increases. When the mixture is too lean, the engine power decreases and backfire occurs.
The air inlet of the sensor is blocked or leaking
The sensor is connected to the intake manifold through a vacuum tube. If the vacuum tube is blocked, bent or leaking, it will cause the pressure signal collected by the sensor to be distorted.
Corresponding symptoms: idle vibration, acceleration lag. Some models may experience idle speed that is either too high or too low.
Sensor signal drift
This is a latent fault. The sensor has not completely failed, but the output signal value deviates from the normal range.
The corresponding symptoms: The vehicle shows no obvious signs of malfunction, but problems such as abnormally increased fuel consumption and reduced power response may occur. These issues can only be detected by using a diagnostic instrument to read the data stream.
To determine whether the signal of the car intake pressure sensor (MAP sensor) is normal, there are mainly two ways: reading the data stream with a diagnostic instrument and measuring the voltage/resistance with a multimeter. The specific operation is as follows:
I. Reading the data stream with a diagnostic instrument (the most commonly used and accurate)
Connect the car diagnostic instrument to the vehicle's OBD interface, enter the engine control system, select the "Read Data Stream" function, and find the "Intake Manifold Absolute Pressure" item.
Compare the pressure values under different working conditions to see if they fall within the standard range (standards may vary slightly among different vehicle models, please refer to the maintenance manual)
Idle condition: The normal pressure value is generally between 20 and 40kPa.
Under the condition of fully open throttle (sudden acceleration), the pressure value will rapidly rise to 80 to 100kPa (close to the external atmospheric pressure).
Unplug the vacuum tube of the sensor: The pressure value will rise instantly, approaching the external atmospheric pressure, indicating that the sensor and the pipeline are conducting normally.
If the data stream values remain fixed all the time, deviate too much from the standard range, or show no response to changes in working conditions, it indicates that the sensor signal is abnormal.
2. Measure the voltage with a multimeter (suitable for manual troubleshooting)
Find the plug of the MAP sensor. Generally, the sensor has three wires: the power line (5V), the ground wire, and the signal wire.
Turn the ignition switch to the "ON" position (do not start the engine), and measure with the DC voltage range of a multimeter:
The voltage between the power line and the ground wire should be around 5V (if the voltage is 0 or too low, it indicates a power supply fault in the line or ECU).
The voltage between the signal line and the ground line is generally 0.5 to 1.5 volts at idle speed. When the throttle is fully open, the voltage will rise to 3.5 to 4.5 volts.
After starting the engine, slowly press the accelerator pedal and observe whether the signal line voltage rises steadily as the throttle opening increases. If the voltage remains unchanged, jumps or exceeds the range, it indicates that the sensor signal is abnormal.
Iii. Auxiliary Judgment Methods
Observe the fault phenomenon: If the vehicle shows unstable idle speed, weak acceleration, high fuel consumption, and the fault light is on, and the fault code read is "P0106/P0107/P0108" (fault code related to the intake pressure sensor), it is highly likely that the sensor signal is abnormal.
Check the vacuum tube: Unplug the vacuum tube connected to the sensor to see if there is any blockage, cracking or detachment. If the vacuum tube leaks, it will cause the pressure signal collected by the sensor to be distorted and wrongly judged as an abnormal signal.
