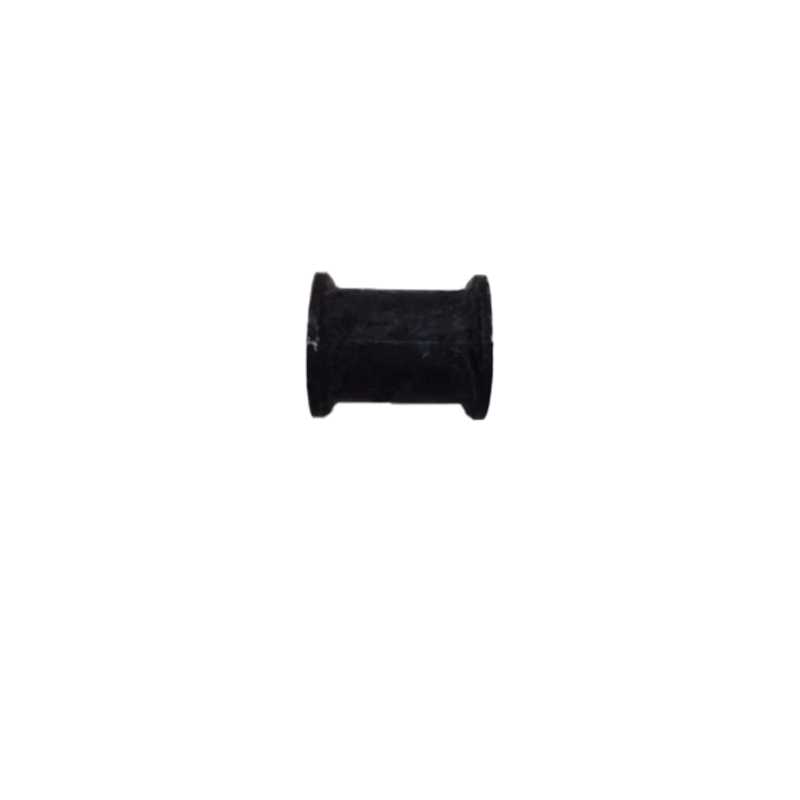

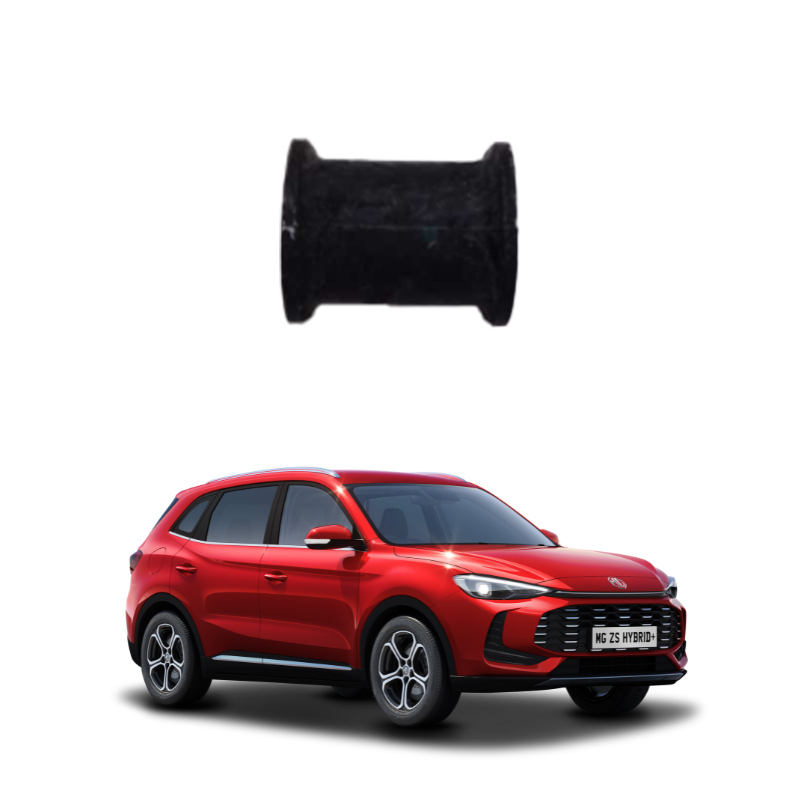

What is the bushing of the front stabilizer bar of a car
The front stabilizer bar bushing of a car is a key component in the car suspension system. Its main function is to reduce direct friction between metal parts, absorb vibration and shock, and improve ride smoothness and handling stability .
Core function
Buffering and shock absorption: Through the elastic deformation of rubber or polyurethane materials, it absorbs road vibrations and noise, reducing the discomfort transmitted into the vehicle.
Reduce abnormal noise: Minimize the friction between the stabilizer bar and other components to prevent abnormal noise caused by jolts during driving.
Torque transmission: Effectively transmits the torsional torque of the stabilizer bar when turning or jolting, suppressing vehicle body roll.
Materials and Design
Materials: Usually rubber or polyurethane composite materials are adopted, with hardness controlled at 50-60 Shore hardness to ensure durability.
Interference fit: Designed as 10%-15% of the cross-sectional area, balancing installation tightness and aging risk.
Q&A
The cause of abnormal noise: Rubber aging, insufficient interference fit or material wear may lead to a "clunk" sound during driving.
Replacement suggestion: If cracks or obvious abnormal noises occur, it should be replaced in time to avoid further damage.
The core function of the front stabilizer bar bushing (rubber sleeve) of a car is to reduce metal friction, buffer vibrations and maintain the function of the stabilizer bar. The following is the specific analysis:
Buffering vibration and shock absorption
The bushing absorbs the vibration of the suspension system through rubber material, reducing the vertical vibration amplitude of the vehicle body on bumpy roads (such as reducing the left and right swaying when changing lanes at high speed).
Reduce the risk of roll
When turning, the bushing shares the pressure on the outer suspension through elastic deformation, making the force on both sides more uniform and reducing the body roll Angle (measured to be reduced by 25% to 40%).
Protect the stabilizer bar structure
The bushing prevents direct metal friction from causing wear or breakage of the connecting rod, especially on unpaved roads or after the chassis is bottomed out, it can avoid extreme failures.
The main manifestations of faults in the front stabilizer bar bushing of a car include abnormal noises from the chassis, decreased driving stability, and signs of physical wear, etc. It is necessary to choose to replace the bushing or the entire component based on the specific damage situation.
Typical fault manifestations
Abnormal undercarriage noise: When passing over potholes or speed bumps, the undercarriage makes a "creaking" or "clank" sound, which mostly comes from the sides near the wheels.
Decreased driving stability: The body roll increases when turning, the steering wheel feedback is sensitive, and slight deviation may occur.
Physical wear signs: Visible cracks, deformations or displacements of the bushing to the naked eye, and leakage of grease from the ball joint.
Maintenance suggestions
Only the bushing is damaged: If the ball head has no clearance, the bushing can be replaced separately (about 30 minutes).
Ball head wear: The entire set of pull rods needs to be replaced to prevent chain damage.
Regular inspection: It is recommended to check the condition of the bushing every 30,000 kilometers or in bad road conditions.
Precautions
When replacing, original factory parts that match the vehicle model should be selected to ensure performance and safety.
If the four-wheel alignment is inaccurate or the tires are abnormal, the alignment parameters need to be adjusted simultaneously.
The damage of the front wheel stabilizer bar of a car can have a significant negative impact on the vehicle's driving safety, handling performance and component lifespan, mainly including decreased driving stability, accelerated tire wear and increased safety hazards , etc. The following is a detailed description of the specific impact:
The influence on driving stability
The core function of the front wheel stabilizer bar is to suppress the roll of the vehicle when turning. If it is damaged, it will cause:
Youdaoplaceholder0 Increased vehicle roll : When turning or on bumpy roads, the degree of vehicle roll significantly increases, the handling feel deteriorates, and drivers need to be more cautious in dealing with it.
Youdaoplaceholder0 Driving trajectory deviation : The vehicle may veer to one side, requiring the driver to frequently correct the direction, which increases driving fatigue.
Youdaoplaceholder0 Reduced high-speed stability : Especially during high-speed driving, roll and swing phenomena are more likely to cause the risk of loss of control.
