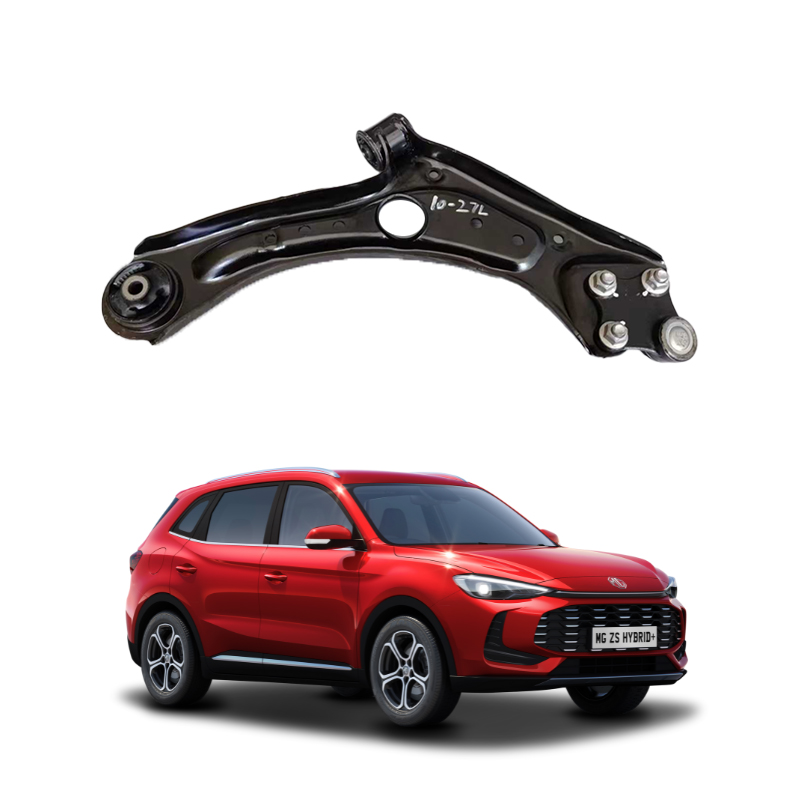

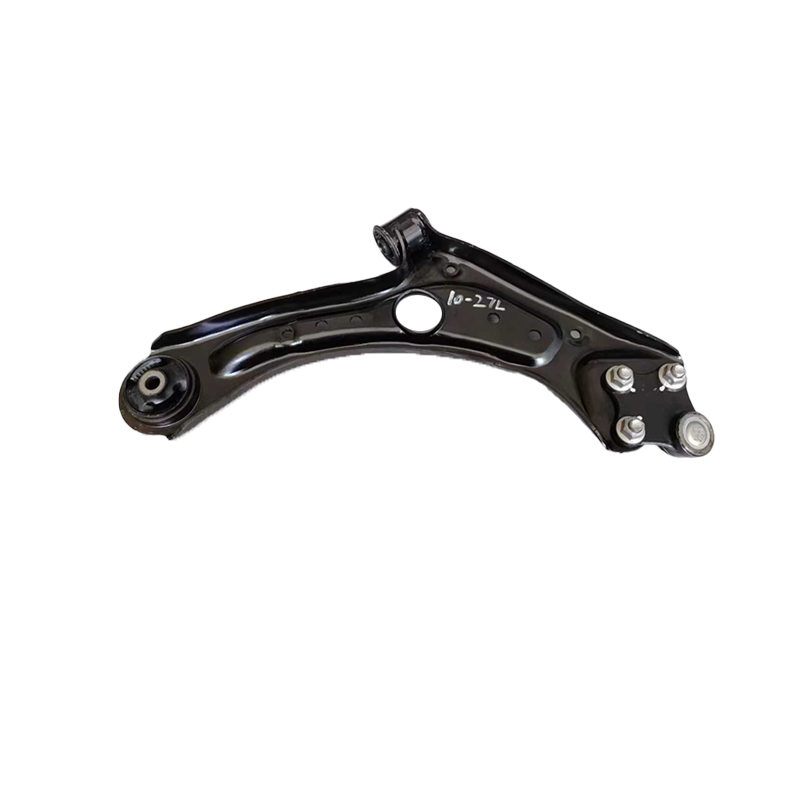

What is the front lower swing arm
The key component of the front wheel suspension system of a car
The front lower control arm is a key component in the front wheel suspension system of a car. Youdaoplaceholder1 connects the wheels to the body or frame , responsible for supporting the body, buffering road vibrations and controlling the wheel alignment Angle. It is crucial for driving stability, handling and comfort.
Core function
Youdaoplaceholder0 Mechanical support and connection : As a triangular load-bearing structure, it works in conjunction with the shock absorber and spring to form the rigid foundation of the suspension system, bearing the weight of the vehicle body and the steering load.
Youdaoplaceholder0 Dynamic buffering and shock absorption : By absorbing and dispersing the impact force of the road surface through the internal rubber bushing, it effectively filters out high-frequency vibrations and enhances NVH performance (noise, vibration and acoustic roughness).
Youdaoplaceholder0 Precise positioning control : By using geometric hard point parameters to control the camber Angle of the front wheels and the toe-in Angle, it ensures that the tires maintain the optimal ground contact area under dynamic conditions, guaranteeing steering accuracy and handling limits.
Structure and Material
It is usually made of high-strength steel or aluminum alloy, taking into account both lightweight and strength requirements.
The structure consists of a steering knuckle arm (connected to the vehicle body) and a hub support (connected to the wheels), and flexible movement is achieved through ball joints.
Youdaoplaceholder0 Rubber bushings are its vulnerable parts. Aging can cause abnormal noise, delayed operation and even arm breakage. Regular inspection and replacement are required.
The front lower control arm of a car is a core component of the suspension system, mainly undertaking the key functions of supporting the vehicle body, buffering vibrations and stabilizing the wheel movement trajectory .
Core role
Youdaoplaceholder0 Support and connection : As a mechanical bridge between the frame and the wheels, it bears the weight of the vehicle body and the steering load, and works together with the shock absorber and spring to form the foundation of the suspension system.
Youdaoplaceholder0 Shock absorption and vibration damping : Through the rubber bushing and ball joint structure, it absorbs road impact, filters high-frequency vibration, and enhances driving and riding comfort.
Youdaoplaceholder0 Guidance and positioning : Control parameters such as wheel camber Angle and toe-in Angle to ensure the tire contact area, maintaining the stability of straight-line driving and steering accuracy.
Material and Maintenance
The materials are mostly high-strength steel or aluminum alloy, balancing the requirements of strength and lightweight.
Regularly check the rubber sleeves for aging, rust or cracks, replace them in time and perform four-wheel alignment to avoid safety hazards such as steering wheel shaking and deviation.
When the front lower control arm of a car is damaged, the main manifestations are poor handling, abnormal noise from the chassis, vehicle deviation and abnormal steering , which seriously affect driving safety and comfort. Here are the specific manifestations:
The handling and comfort have declined
Youdaoplaceholder0 The steering wheel becomes heavy or the steering is not precise : it feels difficult to turn and the direction return is slow.
Youdaoplaceholder0 The bumpy feeling is significantly enhanced : when passing over speed bumps or potholes, the vehicle body vibrates violently, and the shock absorption effect deteriorates.
Youdaoplaceholder0 Unstable driving at high speed : When the vehicle speed is high, it is prone to shaking and it is difficult to maintain a straight line.
Abnormal noises and a loose feeling from the chassis
Youdaoplaceholder0 makes a " dada" or " clunk" sound on bumpy roads : especially on uneven road conditions, the abnormal noise from the chassis on the faulty side is obvious.
Youdaoplaceholder0 The chassis feels loose : when driving, one can feel that the clearance of the chassis components has increased and the overall integrity has deteriorated.
Driving deviation and abnormal tires
Youdaoplaceholder0 The vehicle automatically shifts to one side : the steering wheel needs to be adjusted frequently to keep going straight.
Abnormal wear of tires : Due to inaccurate positioning parameters of , tires may experience uneven wear or increased noise.
