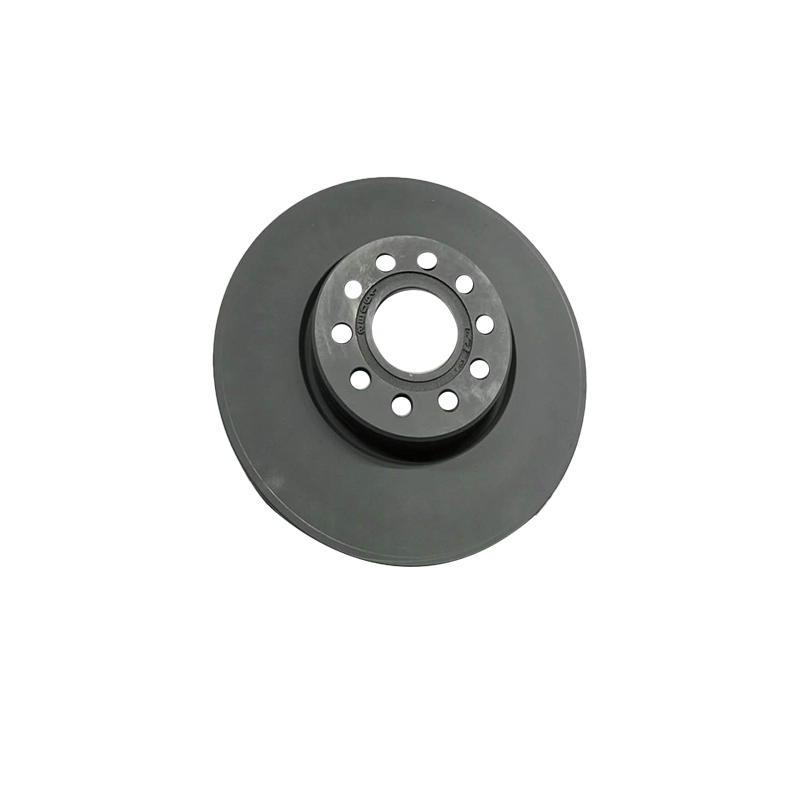

What is the front brake disc of a car
The front brake disc of a car is a circular metal component that rotates synchronously with the wheel in the disc brake system. It is mainly cast from cast iron and generates friction through the clamping of the brake caliper to achieve deceleration or stopping.
Core function
Rotating coaxially with the wheel, it serves as a frictional contact surface, converting the braking force of the brake caliper into frictional heat energy.
Due to the high usage frequency of front-wheel drive vehicles, the front brake discs usually adopt ventilation and heat dissipation designs (such as air duct discs), while the rear wheels are mostly solid discs.
Material and Structure
Material: High-hardness alloy cast iron with heat dissipation pores on the surface, enhancing high-temperature resistance.
Structure: It consists of a disc (friction surface) and a hub (connecting the wheel), and some parts are designed with a double-layer ventilation structure to enhance heat dissipation.
Performance influencing factors
Size: The larger the diameter, the higher the braking torque (a 10% increase in diameter can shorten the braking distance by approximately 8%). An increase in thickness can enhance the heat capacity and wear resistance.
Defects: Porosity or shrinkage porosity may affect heat dissipation and strength, and the casting process must be strictly controlled.
Key points of maintenance
Regularly check for wear, deformation or abnormal noise. Replace when the wear is severe.
Avoid continuous high-load braking to prevent thermal fade from causing a decline in braking efficiency.
The core function of the front brake disc of a car is to convert the vehicle 's kinetic energy into thermal energy through friction, achieving deceleration or stopping . Meanwhile, its ventilation structure can effectively dissipate heat, ensuring braking stability.
Braking force transmission
When the driver steps on the brake pedal, the hydraulic system pushes the brake caliper piston, causing the brake pads to clamp the rotating brake disc. The frictional force converts kinetic energy into thermal energy, achieving deceleration.
Heat dissipation performance
The front wheel brake discs mostly adopt a ventilated disc design. Through circular air ducts, they accelerate air convection, and their heat dissipation efficiency is over 30% higher than that of solid discs. When braking continuously (such as on a long downhill slope), the temperature can be controlled at 200-300°C to avoid the attenuation of braking force caused by thermal fade.
Precise control and stability
The thickness tolerance of the brake disc is controlled within ±0.01mm to ensure uniform distribution of braking force. Its rapid response (within 0.1 seconds) and high-frequency braking capability (more than 15 times per second) match the requirements of the ABS system, enhancing the handling stability during emergency braking.
Environmental adaptability
The surface slotted design can drain over 90% of water, reducing the risk of poor braking in rainy days. The perforated ventilation discs of some high-performance models can also reduce the residual brake dust by 50% and extend the service life of brake pads.
Common causes of faults in the front brake discs of a car include brake disc deformation, brake pad wear, and brake system failure, etc. These issues need to be resolved through professional inspection and repair .
Common causes of faults
Youdaoplaceholder0 Brake disc deformation or damage : Long-term high temperature, external impact or material issues may cause the brake disc to become dented, cracked or notched, resulting in brake vibration or abnormal noise.
Youdaoplaceholder0 Excessive wear of brake pads : When the wear reaches its limit, the brake pads and brake discs rub unevenly, resulting in reduced braking effect or abnormal noise.
Youdaoplaceholder0 Brake system failure : Damage to the brake caliper, brake hose or brake fluid leakage may cause insufficient brake pressure or uneven force distribution.
Typical fault manifestations
When braking, the vehicle body shakes or makes abnormal noises (such as the sound of metal friction).
The braking distance increases or the brake pedal becomes softer.
Rust, dirt or obvious damage appears on the surface of the brake disc.
Solution
Youdaoplaceholder0 check the condition of the brake discs :
If the brake disc is deformed or has grooves, a new brake disc needs to be replaced.
If there is only slight rust, it can be ground clean and then observed.
Youdaoplaceholder0 replace brake pads :
It must be replaced when worn to the limit thickness (usually ≤3mm).
Youdaoplaceholder0 repair brake system :
Replace the brake fluid or exhaust to deal with the problem of air entering.
Inspect and repair components such as the sub-pump and hoses.
preventive measure
Regularly check the thickness of the brake pads and the wear of the brake discs.
Avoid overheating of the brakes due to prolonged overloading or high-speed driving.
When abnormal noise or vibration is detected, send it for repair in time to prevent the fault from expanding.
