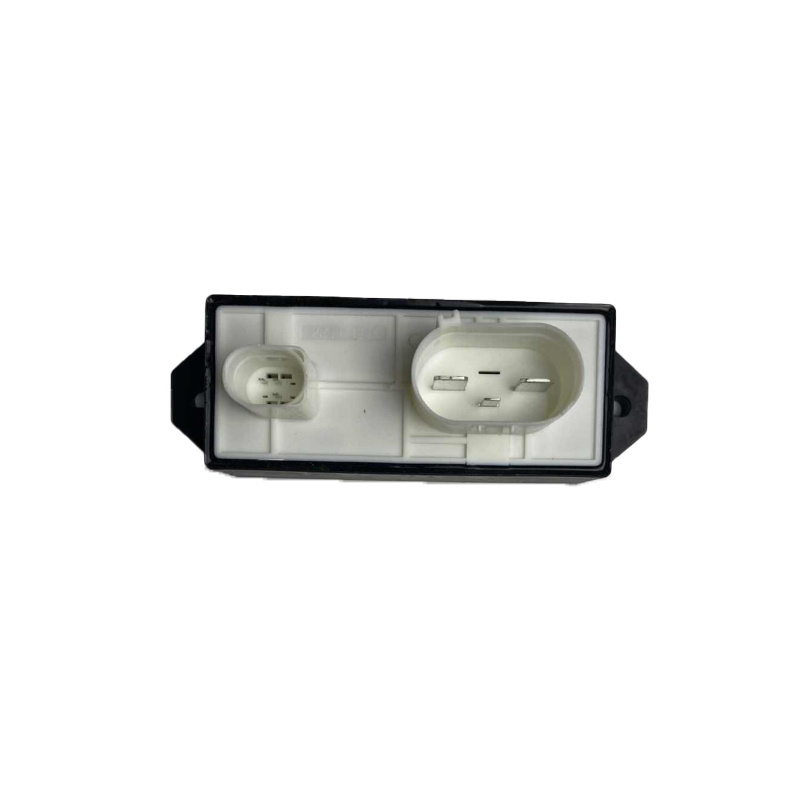

What is the resistor of an automotive electronic fan
The automotive electronic fan resistor is an electronic component that controls the fan speed and current . By adjusting the resistance value, the intelligent control of the cooling system can be achieved.
Core function
Adjust the rotational speed: By changing the resistance value to control the current size, the fan speed can be adjusted. For instance, the resistance of the electronic fan on the left side of the Regal 2004 model is 0.5Ω, and that on the right side is 0.2Ω, both meeting the standards.
Heat dissipation protection: When the engine overheats, the resistor senses the temperature change and activates the fan to enhance the heat dissipation efficiency.
Energy conservation and emission reduction: Reasonable control of rotational speed can reduce energy consumption, fuel consumption and emissions.
Typical resistance value
For traditional models, such as the high-speed electronic fan of Regal, the resistance is approximately 0.2 to 0.5 Ohms.
For new energy vehicle models: The low-speed resistance range of Geely Emgrand EV450 is from 1Ω to several megohms.
Fault impact
A damaged resistor may cause the fan to fail to start or be overloaded. Regular inspection and replacement are necessary to prevent the engine from overheating.
The main function of the automotive electronic fan resistor is to regulate the fan speed, protect the circuit, optimize the heat dissipation efficiency and achieve energy conservation and emission reduction . The following is the specific function analysis:
Adjust the fan speed
The current size is controlled by changing the resistance value, thereby adjusting the fan speed. When the engine temperature rises, the resistance will automatically decrease, increasing the current to raise the fan speed. When the temperature drops, the opposite is true, achieving precise heat dissipation.
Protection circuit
Resistors can limit current overload, prevent fan short circuit or motor damage. If the resistor malfunctions, it may directly cause circuit problems. Therefore, its current-limiting function is crucial for circuit safety.
Optimize heat dissipation efficiency
Intelligent adjustment of fan speed can prevent over-cooling or insufficient heat dissipation, ensuring that the engine operates within the optimal temperature range while reducing energy consumption.
Energy conservation and emission reduction
Reasonably controlling the fan speed can reduce the engine load, decrease fuel consumption and exhaust emissions, and meet environmental protection requirements.
Other functions
Some resistors also have the functions of voltage division and current division, stabilizing the circuit voltage and ensuring the normal operation of electronic components.
The main symptoms of a faulty car fan resistor include abnormal air volume regulation, loss of control over fan speed, increased noise and vibration, warning lights coming on, and the risk of engine overheating . These symptoms may lead to air conditioning system failure or severe engine damage and require timely repair.
Core symptom manifestations
Youdaoplaceholder0 Abnormal air volume regulation .
The air volume is fixed at the maximum or a single setting and cannot be adjusted by a knob.
Some gears have no wind (such as only operating at gear 4), or the fan has completely stopped rotating.
Youdaoplaceholder0 fan speed issue .
The rotational speed is too slow or it stops rotating, resulting in insufficient heat dissipation.
The rotational speed is too fast and uncontrolled, or the fan keeps rotating without stopping.
Youdaoplaceholder0 Other abnormal manifestations .
Abnormal noise or vibration occurs during operation.
The coolant temperature warning light on the dashboard or the engine fault light is on.
Air conditioning system failure, such as the compressor not working or a decline in cooling/heating effect.
Potential impacts and risks
Youdaoplaceholder0 Engine overheating : Insufficient heat dissipation may cause the engine temperature to rise, and in severe cases, it may lead to stalling, cylinder sticking or permanent damage.
Youdaoplaceholder0 system interlocking failure : Long-term high-load operation may accelerate the wear of the compressor or damage the blower.
