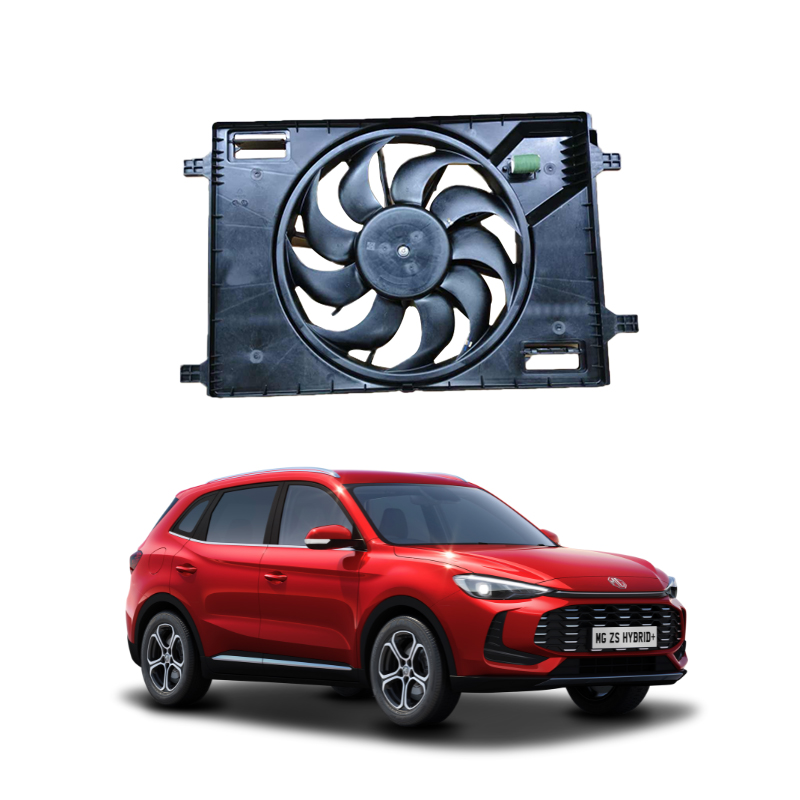

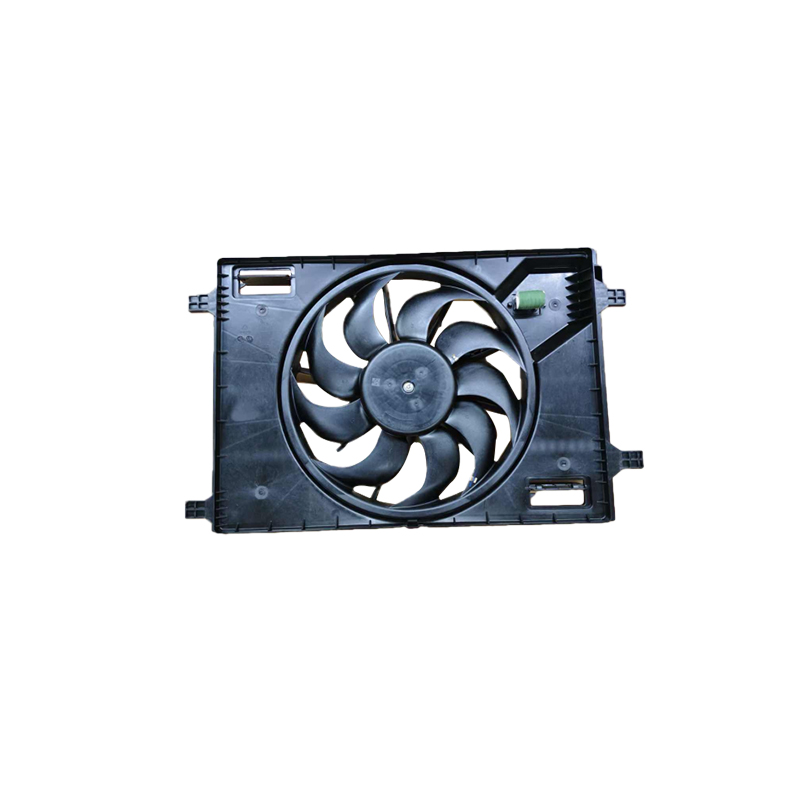

What is an automotive electronic fan
Youdaoplaceholder0 The automotive electronic fan is a core component of the car cooling system. It automatically adjusts its speed through a thermostat to dissipate heat for the engine, transmission and air conditioning condenser , preventing damage from high temperatures.
Core function
Heat dissipation protection: When the water temperature reaches the set upper limit, the thermostat starts the fan to accelerate air flow and remove heat. It will automatically shut off when the water temperature drops.
Air conditioning auxiliary: Dissipates heat for the air conditioning condenser to enhance the cooling efficiency.
Working principle
Temperature control trigger: Relying on a temperature sensor to detect water temperature, it automatically starts and stops or adjusts the rotational speed.
Intelligent mode: Some models support three modes: low speed, high speed and forced start.
Technology type
Traditional brushed motors: They are driven by converting current through brushes and commutators.
Brushless motor: Utilizing electronic commutation technology, it features higher efficiency and longer lifespan.
Installation location
It is usually located near the water tank, and the specific location varies by vehicle model.
The main reasons why a car electronic fan does not rotate include water temperature not meeting the start-up requirements, relay failure, temperature control switch failure, problems with the electronic fan itself (such as motor damage or short circuit), control module failure, power line problems, blown fuse, etc. Youdaoplaceholder1. A systematic investigation is needed to solve the problem.
Classification of core causes
Youdaoplaceholder0 control and sensing system failure .
The water temperature does not meet the requirements: Most electronic fans are electronically temperature-controlled. They will not start when the water temperature is lower than the set value (usually around 90°C).
Temperature control switch malfunction: Unable to accurately read water temperature or send instructions, resulting in the fan failing to start.
Control module failure: The module that controls the fan speed has malfunctioned, affecting the operation instructions.
Youdaoplaceholder0 electrical and mechanical component failure .
Relay failure: A damaged relay can cut off the power supply to the fan, a common cause.
Blown fuse: A blown fuse causes a power supply interruption.
Power line issues: Short circuit, open circuit or poor contact in the line.
Motor issues: Poor lubrication, overheating, aging or wear of the shaft sleeve of the motor can lead to a decrease in load capacity.
Starting capacitor failure: The capacitance of the capacitor has decreased, resulting in insufficient starting torque.
Fan blade or radiator blockage: Dust or debris hinders rotation.
Youdaoplaceholder0 Other associated factors .
Insufficient thermostat opening: Slow cooling water circulation, affecting water temperature.
Idling of the water pump: Causes abnormal increase in water temperature.
The core function of an automotive electronic fan is to control the engine block, transmission and air conditioning condenser through a thermostat to dissipate heat, maintaining an appropriate operating temperature for the engine and ensuring the efficient operation of the air conditioning system , thereby enhancing engine performance, extending service life and ensuring driving and riding comfort.
Core function and working principle
The electronic fan is a key component of the automotive cooling system. Its function and working mechanism are as follows:
Youdaoplaceholder0 Core function :
Youdaoplaceholder0 cooling the engine and transmission : When the engine or transmission is too hot, the electronic fan starts to lower the radiator temperature, preventing performance degradation or component damage caused by overheating.
Youdaoplaceholder0 Auxiliary air conditioning system heat dissipation : In the air conditioning cooling mode, the electronic fan cools the condenser, accelerating the circulation of cold air; In heating mode, it assists in delivering hot air, enhancing the comfort level inside the vehicle.
Youdaoplaceholder0 Guiding airflow to optimize heat dissipation : At low speeds, the electronic fan enhances heat dissipation efficiency by forcing airflow, making up for the insufficiency of natural wind.
Youdaoplaceholder0 working principle :
The electronic fan is controlled by a thermostat or sensor. It automatically starts when the water temperature rises to the upper limit (such as 95°C) and stops when it drops to the lower limit (such as 90°C), achieving precise temperature regulation.
It usually has two rotational speeds: low speed for mild heat dissipation (90°C), and high speed for emergency high temperatures (95°C).
When the air conditioner is turned on, the temperature of the condenser or the pressure of the refrigerant will also trigger the electronic fan to operate, ensuring the stability of the air conditioning system.
Electronic fans are crucial for the operation of cars:
Youdaoplaceholder0 Ensure engine performance : Maintain water temperature within the optimal range (approximately 90-95°C) to prevent power loss or mechanical failure caused by overheating.
Youdaoplaceholder0 Extend component life : Effective heat dissipation reduces wear and tear on the engine, transmission and air conditioning system.
Youdaoplaceholder0 Enhance energy efficiency and comfort : Electronic fans operate on demand to reduce energy consumption; At the same time, optimize the efficiency of the air conditioning to ensure a comfortable interior environment.
