What is an automotive camshaft sensor

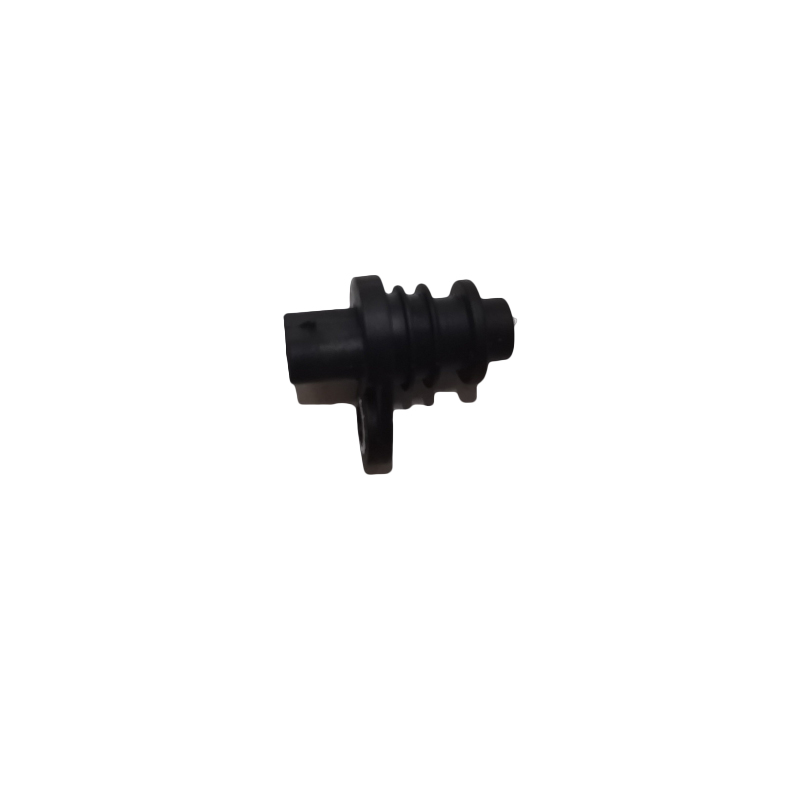

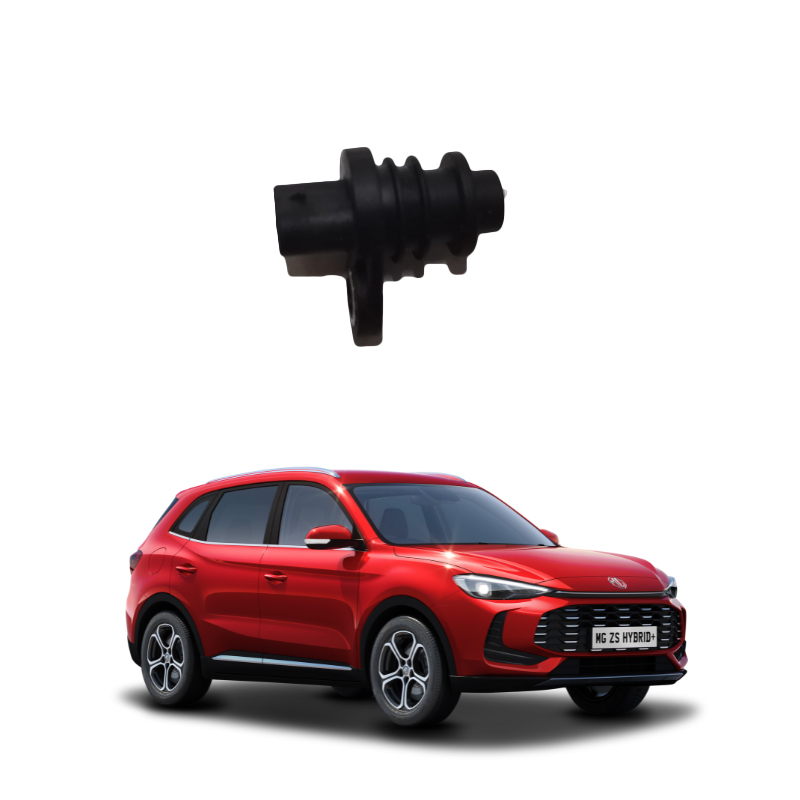

Youdaoplaceholder0 The automotive camshaft position sensor (CPS) is a device used to detect the position and Angle of the camshaft, providing signals to the ECU (Engine Control Unit) to control key engine parameters such as ignition timing, fuel injection timing, and detonation control .
Core function
Cylinder positioning: By detecting the position of the camshaft, the compression top dead center (BTDC) of the first cylinder piston is determined to achieve precise fuel injection and ignition control.
Synchronous signal: As the main control signal for ignition control, it ensures that each cylinder of the engine operates in sequence.
Working principle
Signal generation: The sensor contains a light-emitting diode (LED) and a phototransistor inside. Through the light-transmitting holes and the light-blocking parts of the signal disk, high and low level pulse signals are alternately generated.
Signal type
Ne signal: It reflects the position of the crankshaft and generates 360 pulses per revolution.
G signal: Reflects the position of the camshaft, generating 6 pulses per revolution (corresponding to a 120° crankshaft rotation Angle).
Common types
Photoelectric type: Utilizing photosensitive elements to detect the light-transmitting holes of the signal disk.
Magnetic induction type: It is divided into Hall type (fixed amplitude signal) and magnetoelectric type (amplitude varies with rotational speed).
Fault impact
Fault manifestations: It may cause the engine to fail to start, power to decrease, fuel consumption to increase or knocking.
Typical models: For instance, the 2015 Audi Q5 is equipped with dual camshafts and requires two sensors for separate monitoring.
When the camshaft sensor of a car malfunctions, symptoms such as difficulty in starting, decreased power, increased fuel consumption, body shaking, and the warning light coming on usually occur. It is manifested as follows:
Youdaoplaceholder0 Abnormal start-up : The engine fails to ignite or is difficult to start. It may take multiple attempts to succeed. This can occur in both cold and hot engine conditions.
Youdaoplaceholder0 Power output issue : weak acceleration, sluggish throttle response, and a noticeable lack of power during driving, even accompanied by body shaking.
Youdaoplaceholder0 Deterioration of fuel economy : Fuel consumption has significantly increased due to the ECU's inability to precisely control the fuel injection volume, resulting in incomplete fuel combustion.
Youdaoplaceholder0 Unstable operation : The engine speed is unstable and the vibration is obvious at idle. The vibration intensifies under high load. Some vehicles may experience driving jerks or sudden stalling when warming up.
Youdaoplaceholder0 Fault prompt : The engine fault light on the dashboard (such as OBD fault codes P0340-P0344) remains on continuously, indicating that the system has detected an abnormal signal.
If the above symptoms occur, it is recommended to have the engine inspected and repaired in a timely manner to prevent further wear of the engine.
After the camshaft position sensor malfunctions, the vehicle cannot run normally. Forcing driving may cause serious damage to the engine and potential safety hazards such as stalling while driving. Immediate repair is required.
The impact of faults on driving capacity
The camshaft position sensor is a core component of the engine control system, responsible for providing camshaft phase signals to the ECU (Electronic Control Unit) to precisely control the ignition sequence, fuel injection timing, and detonation suppression. Once damaged, the ECU cannot accurately identify the cylinder position, resulting in engine control failure and the vehicle being unable to maintain normal operation. Specifically manifested as:
Youdaoplaceholder0 Difficult to start or unable to start : After sensor failure, the ECU needs to rely on the crankshaft position signal to indirectly infer the camshaft position, causing ignition and fuel injection synchronization delays. During cold start, multiple attempts may be required or even complete failure may occur.
Sudden engine stalling during driving : Especially under hot or high-load conditions, the engine may unexpectedly shut down due to control disorder, increasing the risk of accidents.
Youdaoplaceholder0 Limited power output : The ECU will enter a fault protection mode (limping mode), limiting the vehicle speed (such as up to 80km/h) and disabling some functions, resulting in weak acceleration and difficulty climbing slopes.
Typical symptoms caused by a malfunction
After the camshaft position sensor is damaged, the vehicle will immediately exhibit the following observable phenomena, which further confirm the infeasibility of driving:
Youdaoplaceholder0 Unstable idle speed and severe shaking : The ECU fails to coordinate the timing of valve opening and closing, resulting in an imbalance between intake and exhaust volumes. The engine is in a state similar to a "missing cylinder", with significant fluctuations in rotational speed.
Youdaoplaceholder0 Deterioration of fuel economy : Incorrect timing of fuel injection leads to incomplete combustion, increasing fuel consumption by 10% to 15%, and black smoke may come out of the exhaust pipe at the same time.
The fault light remains on : the dashboard will display an engine fault warning (such as code P0011 or P0340), indicating a system anomaly.
The risk of forced driving
If the malfunction is ignored and the vehicle continues to drive, the following serious consequences may occur
Youdaoplaceholder0 engine mechanical damage : Incorrect ignition timing can cause knocking or crankshaft reversal. Long-term operation may damage core components such as pistons and connecting rods, significantly increasing maintenance costs.
Youdaoplaceholder0 Emission system failure : Incomplete combustion causes excessive emissions of CO and HC, which may clog the three-way catalytic converter and violate environmental protection regulations.
Youdaoplaceholder0 Safety hazards intensify : Stalling or power interruption while driving can directly affect systems such as brake assist and steering assist, posing a threat to driving safety.
