The Front Wiper Motor: The Invisible Guardian of Car Vision
Among the numerous components of a car, the front wiper motor may seem insignificant, but it is a crucial role in ensuring driving safety. Its core function is to convert electrical energy into mechanical energy, through a series of transmission mechanisms, to drive the wiper arm to swing back and forth, thereby clearing obstacles such as rain, snowflakes, and sand particles on the front windshield, providing the driver with a clear view.

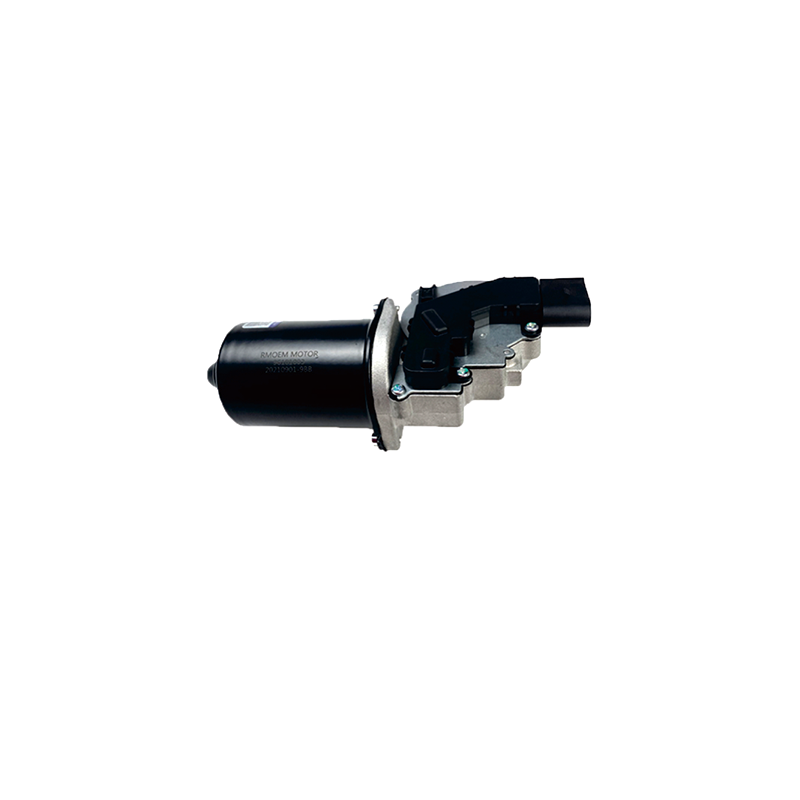

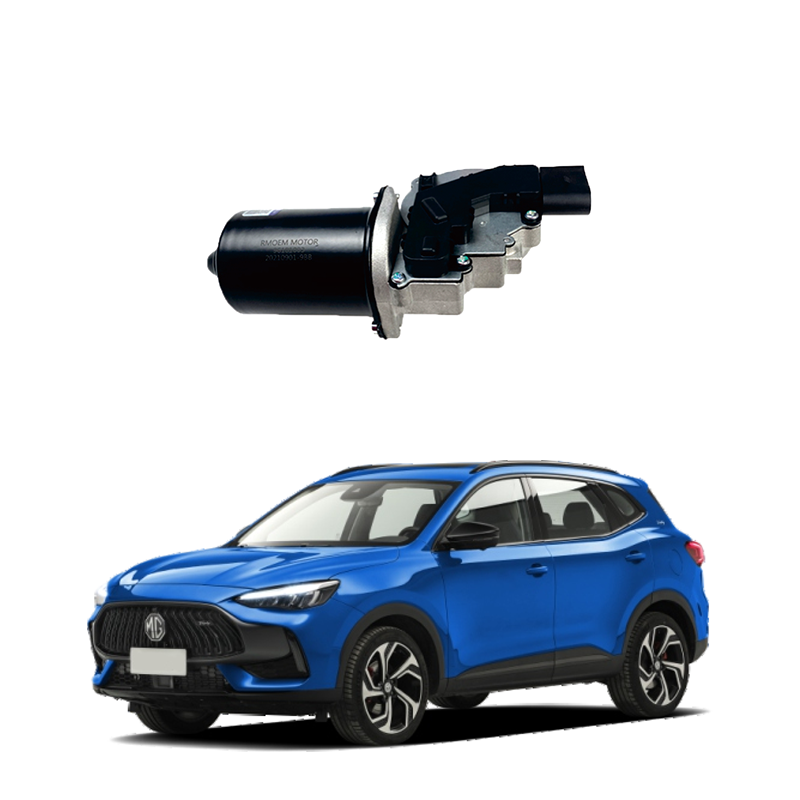

From a structural perspective, the current widely used in automobiles is the permanent magnet DC wiper motor. It mainly consists of a DC motor, a reduction mechanism, an automatic stopper, etc. When the motor is powered on, it generates rotational power, which is reduced in speed and increased in torque through a worm gear and worm wheel reduction mechanism, and then the rotational motion is transformed into the reciprocating swing of the wiper arm. To adapt to different weather conditions, the wiper motor usually has multiple speed adjustment functions. The driver can select low speed, high speed, or intermittent mode through the control switch. For example, in light rain conditions, using the intermittent mode can meet the cleaning needs; while in heavy rain, the high-speed mode can quickly clear the rain on the windshield to ensure clear vision.
In addition, the wiper motor is equipped with an automatic reset device. When the wiper switch is turned off, this device allows the wiper arm to accurately stop at the lower edge of the windshield, without blocking the driver's view. This seemingly simple function reflects the humanized details of car design, greatly enhancing the convenience and safety of driving.
Common Faults and Troubleshooting Methods of the Front Wiper Motor
The wiper completely stops working
This is one of the most common faults, which may be caused by various reasons. First, check the fuse. The wiper circuit of the vehicle usually has a dedicated fuse. When the current is overloaded, the fuse will automatically melt to protect the circuit. The owner can open the fuse box under the driver's side dashboard and find the corresponding fuse position for the wiper in the manual. If the metal wire is broken, simply replace it with a fuse of the same specification.
If the fuse is not the problem, then consider the motor failure. The average lifespan of the wiper motor is about 8-100,000 kilometers. After this mileage, the internal carbon brushes may be severely worn, or the rotor coils may be burned out or short-circuited. At this time, the motor may not operate normally when powered on, or it may emit abnormal noises. In such cases, generally, the motor assembly needs to be replaced. Additionally, a control switch failure may also cause the wiper to not work. If the internal contacts of the steering wheel right-side wiper control lever are worn due to frequent operation, it will cause the signal to fail to be transmitted normally. The owner can use a multimeter to measure the conductivity of each gear position of the switch. If there is a short circuit, the control switch needs to be replaced.
The wiper operates abnormally
The manifestations of abnormal wiper operation are diverse, such as weak swing of the wiper arm, uneven swing amplitude, or abnormal noise. If the wiper arm swings weakly, it may be due to the wear of the carbon brushes inside the motor, resulting in the inability to pass the current normally, and insufficient torque output by the motor. It may also be due to the jamming of the connecting rod mechanism. When exposed to the outside environment for a long time, the ball joint of the connecting rod is prone to clogging due to dust and rain erosion, especially in winter, if the windshield is frozen and the wiper is forcibly started, it may cause the connecting rod to deform.
For this situation, the owner can first check the connecting rod mechanism, clean the dust and debris at the ball joint, and apply an appropriate amount of lubricating oil. If it is a problem with the carbon brushes of the motor, then the carbon brushes or the motor assembly need to be replaced. If the wiper makes abnormal noise during operation, it may be due to the aging and hardening of the wiper blade, which rubs against the glass and generates noise, or the gears inside the motor may be loose in their bite. The owner can first replace the wiper blade, if the noise still exists, then further check the gears inside the motor.
The wiper does not return to position normally When the wiper switch is turned off, the wiper arm cannot accurately stop at the lower edge of the windshield. This might be due to a malfunction in the automatic reset device. If the copper ring contacts or the reset switch in the automatic reset device are damaged, it will be impossible to accurately control the stop position of the wiper arm. In this case, professional maintenance personnel need to inspect or replace the automatic reset device.
Daily maintenance suggestions for the front wiper motor
To extend the service life of the front wiper motor and reduce the occurrence of faults, car owners should pay attention to some maintenance details during daily driving. Firstly, avoid turning on the wiper when the glass is dry. This will increase the load on the motor and accelerate the wear of the wiper blade and the motor. Secondly, regularly clean the debris on the wiper blade and the windshield to keep the wiper blade clean. Additionally, when using the wiper in winter, check if the glass is frozen. If there is ice, clear it first before turning on the wiper to avoid deformation of the connecting rod or damage to the motor due to forced operation. Finally, lubricate the connecting rod mechanism of the wiper motor regularly to ensure smooth operation.
