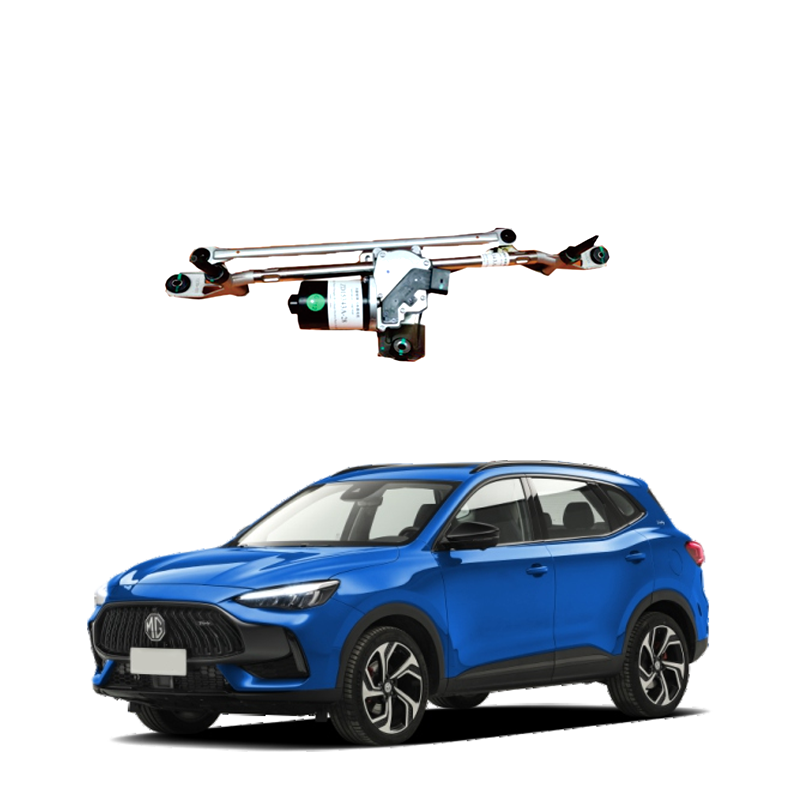

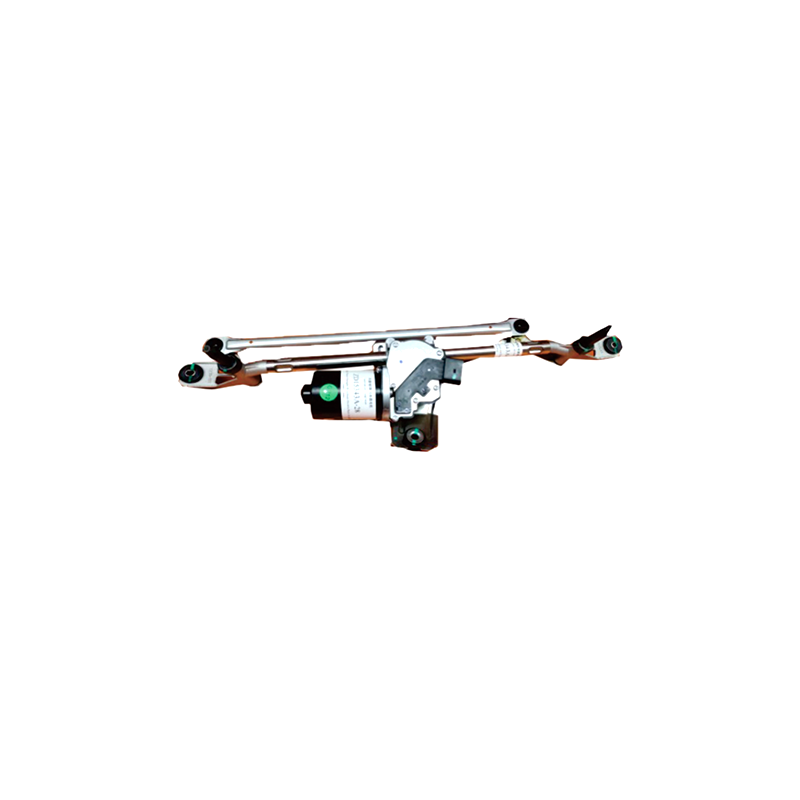

Wiper Link Rod Assembly: The "Power Hub" of the Wiper System
In the automotive wiper system, the wiper link rod assembly is an easily overlooked yet crucial core component. It is like a precise power bridge, connecting the wiper motor with the wiper arm, silently determining the working efficiency of the wiper system.
From a core function perspective, it undertakes the key task of power conversion and transmission. The wiper motor generates rotational power, while the wiper arm requires reciprocating swinging power. The link rod assembly, through the precise cooperation of components such as cranks, connecting rods, and swing arms, smoothly converts the rotational power into left and right reciprocating motion, allowing the wiper arm to swing according to the preset trajectory and clean the windshield precisely. At the same time, it also ensures the synchronous control of the wiper arm, ensuring that the two wiper arms move identically to avoid problems such as wiper fighting and missed cleaning areas, and guaranteeing that the entire windshield can be cleaned evenly.
Furthermore, the link rod assembly also has functions of stroke control and angle adjustment. Through specific mechanical structures, it strictly limits the swinging range and angle of the wiper, preventing it from scraping onto the A-pillar or engine hood and causing component damage, nor leaving a blind area under the glass. High-quality link rod assemblies can also balance the pressure between the wiper blade and the glass, reducing the jitter during scraping, and buffering the vibration transmission between the motor and the wiper arm, improving the stability and lifespan of the wiper system.
Fault Warning: The "Breakdown Signal" of the Wiper Link Rod Assembly
The wiper link rod assembly is not indestructible. During long-term use, frequent swinging, adverse weather conditions, and complex road conditions can all lead to its failure, and these failures often send out warnings through abnormal manifestations of the wiper system.
The most common fault signal is abnormal wiper operation. For example, one side of the wiper does not move, which is usually due to the detachment or fracture of a certain connection part of the link rod, or the aging and failure of the rubber sleeve at the joint, resulting in the inability to transfer power to the corresponding wiper arm. Some vehicles may also experience uneven wiper swinging, stalling, or abnormal noise, which is likely due to loose pins, deformed connecting rods, or aging and hardening of rubber components, causing power transmission obstruction and deviation in the movement trajectory.
A decrease in wiper wiping effect is also an important fault indication. When you notice obvious missed cleaning areas on the windshield, or the wiper blade jumping on the glass and not cleaning properly, do not rush to replace the wiper blade. It is very likely that the link rod assembly is deformed, causing abnormal angles and pressures of the wiper arm, affecting the wiping effect. Additionally, if the wiper does not return accurately to the preset position below the glass when stopping, it may be due to worn limit devices of the link rod, unable to precisely control the stroke of the wiper.
Fault Diagnosis and Resolution: Getting the Wiper System Back on Track
When the wiper system exhibits the above abnormalities, car owners can follow certain steps to troubleshoot the faults of the link rod assembly. First, open the hood and visually inspect the appearance of the link rod assembly to see if there are obvious deformations of the link rod, detachment of connection parts, or rupture of the rubber sleeve. If the link rod is dislocated, try to reinstall it to reset it; if the rubber sleeve is aging, cracked, or the connecting rod is deformed, usually a replacement of the entire link rod assembly is required.
For car owners with strong manual skills, they can also replace the link rod assembly themselves. Before replacement, take photos to record the original installation position of the link rod assembly to avoid installing it incorrectly. When disassembling, first remove the wiper arm cover cap, unscrew the fixing screws, remove the wiper arm, and then remove the fixing bracket and connection plug of the link rod assembly. When installing the new link rod assembly, ensure the correct positions of the left and right brackets, and the matching of the installation holes with the vehicle, and test the swinging range and synchronization of the wiper after installation to avoid problems such as wiper hitting the A-pillar or abnormal noise.
Regular maintenance can also effectively extend the service life of the link rod assembly. When performing maintenance on other vehicle components, such as replacing shock absorbers and needing to remove the wiper arm, it is also possible to carry out maintenance on the linkage rod assembly at the same time. Use a screw loosening agent to lubricate the joint area, clean the dust and oil stains on the surface of the components, and for the nylon material moving parts, only keep them clean is sufficient, without applying too much grease, to avoid the dust adhering and further increasing the wear.
