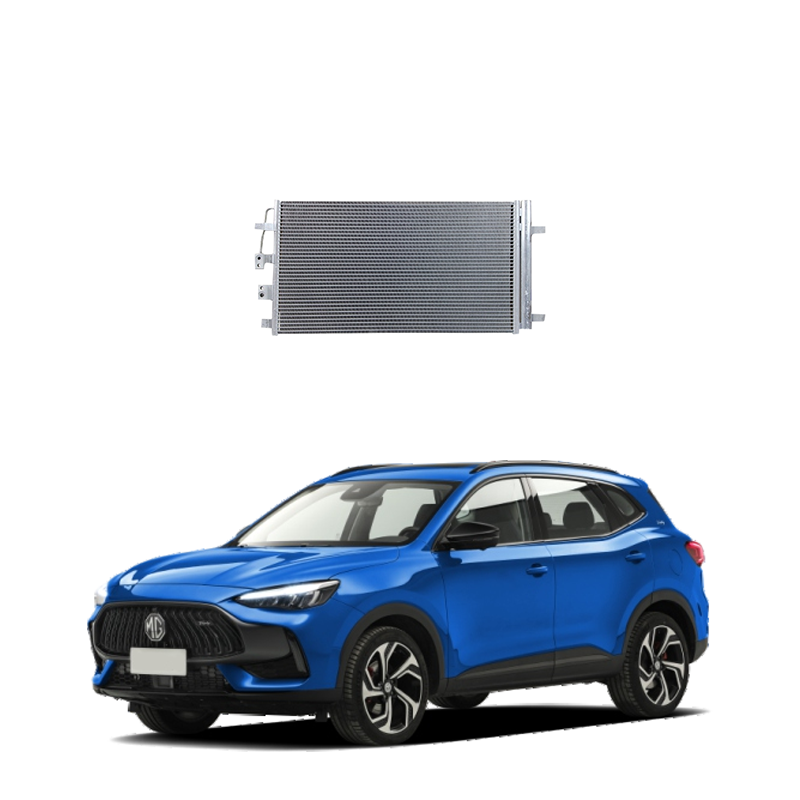

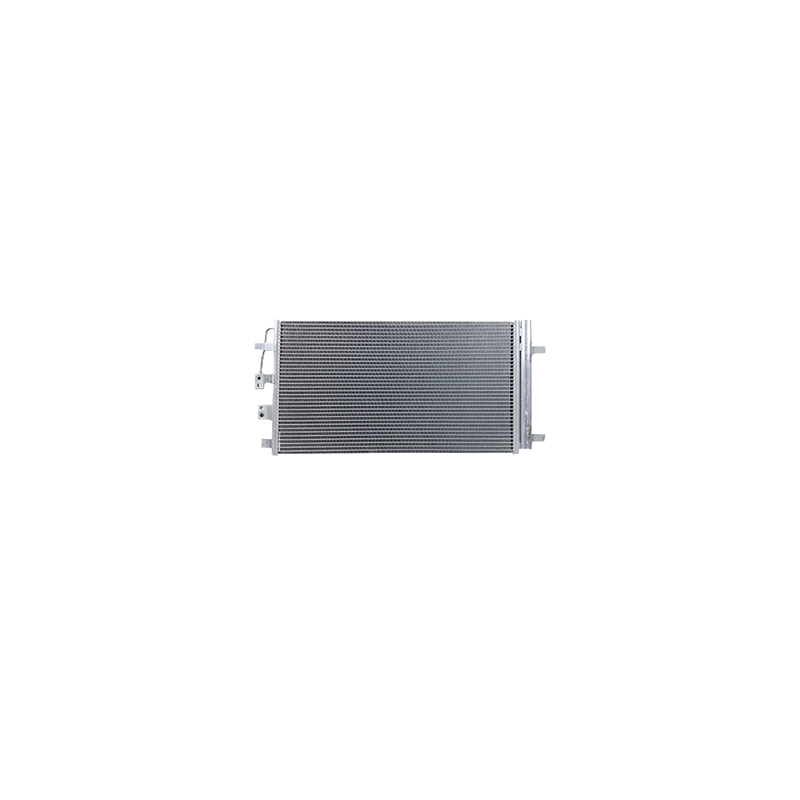

Car Condenser Assembly: The Guardian and Fault Response of the Cooling Core
In the automotive air conditioning system, the condenser assembly is like a dedicated "heat dissipation guardian", being one of the core components that ensure the comfort temperature inside the vehicle. It is not a single component but an integrated device consisting of the condenser body, heat sinks, electronic fans, drying bottles, etc., working together in the refrigeration cycle to play an indispensable role.
The core function of the car condenser assembly
The primary responsibility of the car condenser assembly is to transfer and discharge heat. After the compressor compresses the low-temperature and low-pressure gaseous refrigerant into a high-temperature and high-pressure gaseous refrigerant, this refrigerant carrying a large amount of heat is sent to the condenser assembly. Inside the condenser, the high-temperature and high-pressure gaseous refrigerant exchanges heat with the external aluminum fins through copper tubes, quickly transferring the heat absorbed from the vehicle and the heat generated by the compressor to the outside air, while gradually cooling and condensing into medium-temperature and high-pressure liquid refrigerant, completing the transfer of indoor heat to the outdoor, creating a cool environment inside the vehicle.
Secondly, it can promote the phase change of the refrigerant, creating conditions for the subsequent refrigeration process. After the gaseous refrigerant in the condenser assembly transforms into liquid, it enters the throttling device, where the pressure drops sharply, turning into low-temperature and low-pressure liquid refrigerant, and then flows into the evaporator, absorbing the heat from the vehicle and converting it back into gaseous, thus repeating the cycle to achieve continuous refrigeration. Without the condenser assembly completing the refrigerant liquefaction process, the entire refrigeration cycle would be interrupted, and the high temperature in the vehicle would not be effectively relieved.
In addition, the condenser assembly maintains the pressure difference balance of the refrigeration system. It works in coordination with the compressor to ensure the stability of the pressure on both the high-pressure and low-pressure sides of the refrigeration system. When the condenser assembly operates efficiently, it can maintain an appropriate pressure on the high-pressure side, providing a stable working environment for the compressor and preventing it from overloading due to abnormal pressure, thereby extending the lifespan of the compressor and reducing the vehicle's energy consumption.
For vehicles that often operate in high-temperature environments or during long-distance driving, the role of the condenser assembly is even more crucial. For example, in construction vehicles working on hot construction sites for long periods, the driver's cab is prone to becoming a "steambath", and a high-performance condenser assembly can continuously and efficiently dissipate heat, ensuring the stable output of the air conditioning system, providing a comfortable driving environment for the driver, and improving work efficiency.
Common faults and manifestations of the car condenser assembly
Although the condenser assembly plays a crucial role, during long-term use, it is prone to various faults that affect the normal operation of the air conditioning system.
One of the common faults is clogging by dirt. As the condenser is usually installed at the front of the vehicle, during driving, dust, chaff, insect corpses, etc., will adhere to the surface of the heat sinks and gradually accumulate, blocking the air flow and reducing the heat dissipation efficiency. When the condenser does not dissipate heat adequately, the refrigerant cannot be fully liquefied, the proportion of liquid refrigerant entering the throttling device decreases, the heat absorption capacity of the evaporator decreases, the cooling speed in the vehicle slows down, the cooling effect significantly weakens, and in high-temperature environments, the air conditioning may almost not be able to cool.
Leakage faults also occur from time to time. The pipes of the condenser may be damaged due to corrosion, wear, or external impact during long-term use, resulting in refrigerant leakage. After refrigerant leakage, the refrigerant in the air conditioning system is insufficient, and the refrigeration cycle cannot operate normally. The most direct manifestation is that the air conditioning stops cooling completely. At the same time, the leakage point usually seeps oil, because the refrigerant contains refrigerating oil, which flows out when leaked. Owners can initially determine the leakage location by observing the oil stain.
Electronic fan faults can also affect the operation of the condenser assembly. When the vehicle is stationary or moving at low speed, the electronic fan will actively supply air to assist in heat dissipation. If the electronic fan motor is damaged, the circuit is faulty, or the fan blades are broken, it will be unable to provide sufficient airflow to the condenser, resulting in a decrease in the condenser's heat dissipation efficiency and subsequently affecting the cooling performance of the air conditioner. At this time, even if the vehicle is in motion, the cooling performance of the air conditioner will be greatly reduced, especially during traffic jams, where the interior temperature will rise rapidly.
Prevention and Handling of Condenser Assembly Failures
For the failure of the dirt blockage, car owners should regularly clean the condenser. They can use a high-pressure water gun at a distance of about 20 - 30 centimeters from the condenser to rinse the debris on the surface of the heat sink with appropriate water pressure. However, be careful not to use too much water pressure to damage the heat sink. They can also use a dedicated condenser cleaner and follow the instructions for cleaning to keep the heat sink unobstructed.
For the leakage failure, if the air conditioner does not cool and there is oil on the surface of the condenser, they should promptly go to a professional repair shop for inspection and repair. The repair personnel will accurately locate the leakage point through tests such as air tightness, repair the damaged pipes or replace the condenser assembly, and refill the refrigerant to ensure the air conditioning system operates normally.
To prevent electronic fan failures, car owners should regularly check the working condition of the electronic fan. They can turn on the air conditioner while the vehicle is idling and observe whether the electronic fan is operating normally, and listen for any abnormal noises. If they find that the fan does not rotate or operates abnormally, they should promptly check the motor, circuit, and fan blades, and if necessary, repair or replace them.
In conclusion, the condenser assembly of the car is the core component of the car's air conditioning system. Understanding its function, common failures, and handling methods can help car owners better maintain the vehicle's air conditioning system and ensure a comfortable driving experience even in hot summer days.
