The working principle of the transmission oil pan

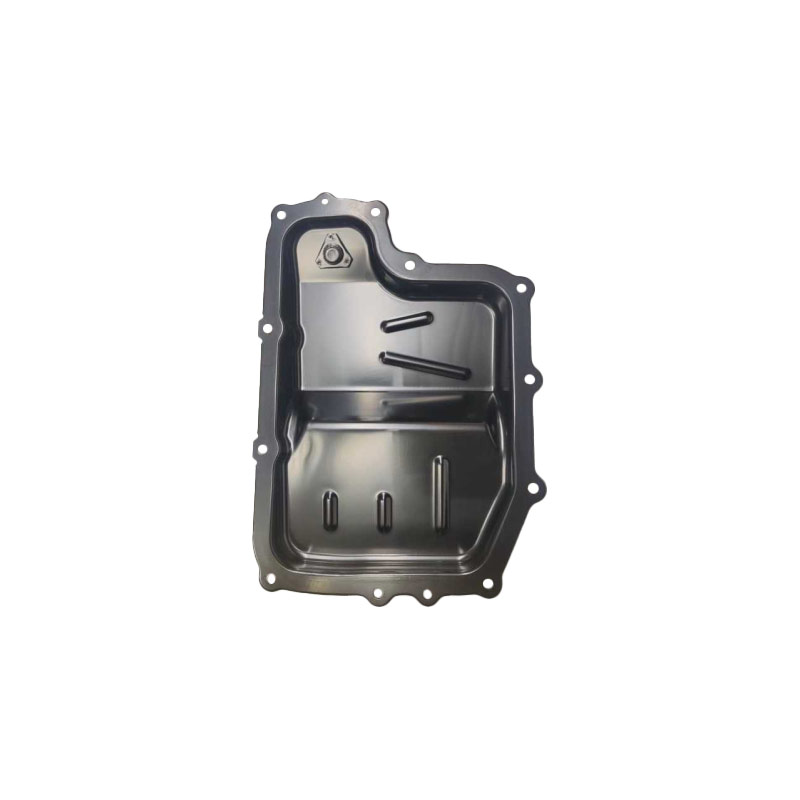

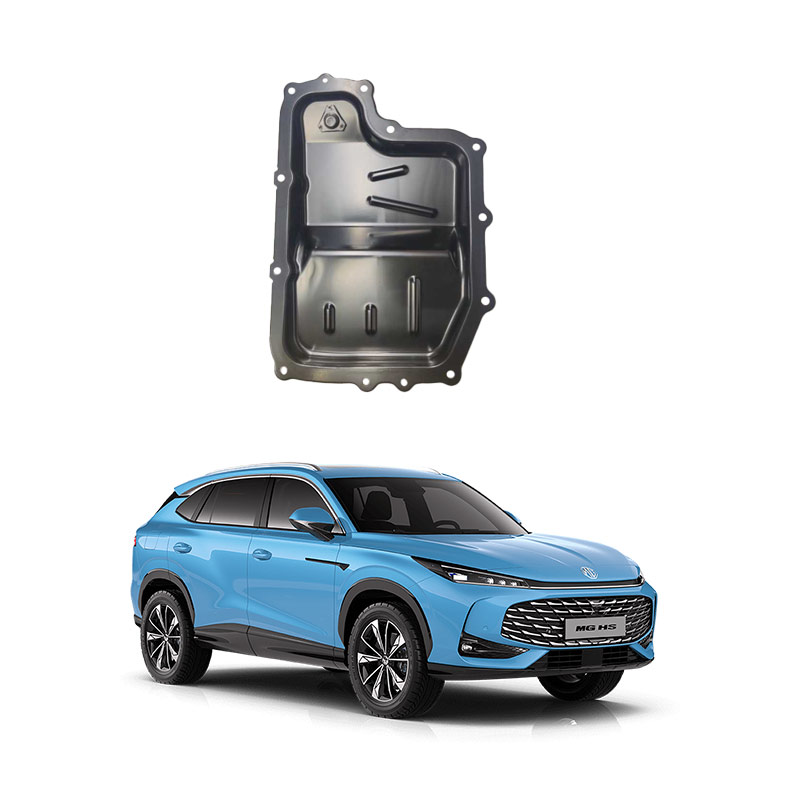

The oil pan of the gearbox is a crucial component at the bottom of the gearbox. Its working principle mainly lies in four aspects: storage, sealing, cooling, and auxiliary cleaning. Together, they ensure the normal and efficient operation of the gearbox.
Storage and sealing of gearbox oil: The oil pan acts as the "oil tank" of the gearbox, responsible for collecting and storing the lubricating oil (gearbox oil) that flows back from various moving parts inside the gearbox. This ensures a sufficient and stable supply of oil in the system. It is closely connected to the gearbox housing through a sealing gasket, forming a sealed space that effectively prevents oil leakage and isolates external dust, moisture, and other impurities from entering, maintaining a clean working environment inside.
Auxiliary heat dissipation and cooling: The gearbox generates a large amount of heat during operation. The oil pan is located at the bottom of the gearbox and directly contacts the vehicle's air flow. It can conduct part of the heat from the oil to the external air through the metal housing, achieving passive heat dissipation. Especially in high-performance vehicles, using aluminum material and combining with a hollow rib structure with increased surface area can significantly improve the heat conduction efficiency (the heat conductivity of aluminum is approximately three times that of steel), making the oil temperature more stable and preventing oil oxidation and viscosity reduction due to excessively high temperatures, thereby protecting key components such as clutch plates and gears.
Accumulation and interception of impurities: Inside the oil pan, there is usually a stabilizing baffle that can reduce the shaking of the oil and promote the sedimentation of metal debris, wear particles, and other impurities at the bottom, preventing them from circulating and causing secondary wear. At the same time, the cleaning additives in the gearbox oil will break down and deposit tiny contaminants on the oil pan, providing an auxiliary filtering function. Regular maintenance can remove these accumulated pollutants.
Buffering and stabilizing the oil flow: The design of the oil pan helps stabilize the oil flow and reduces the violent oscillation of the oil when the vehicle is jolted or tilted, ensuring that the oil pump can continuously and stably draw oil and avoiding lubrication failure due to suction loss.
In conclusion, the oil pan of the gearbox is far from being a simple "oil collection box", but an important part of the thermal management system and the cleaning system. Its design (such as material, shape, and internal structure) directly affects the heat dissipation efficiency and service life of the gearbox, especially in high-load conditions, an efficient heat dissipation design (such as an aluminum oil pan) can significantly improve the smoothness of gear shifting and system reliability.
When the oil pan of the gearbox is damaged, the handling method should be determined based on the specific type and severity of the damage. The following are common situations and corresponding handling suggestions:
Oil pan with slight deformation or scratches, no oil leakage
If the oil pan only shows slight dents or scratches and no oil leakage is found, and the vehicle operates normally (such as smooth shifting and no abnormal sounds), it can be temporarily not replaced. But it is necessary to closely observe:
Regularly check if there are any signs of cracks or oil leakage in the oil pan.
Pay attention to whether the oil level in the gearbox is decreasing.
Avoid driving over bumpy roads or shoulders to prevent the damage from worsening.
Oil pan severely deformed or cracked, damaged
If the oil pan is significantly deformed, cracked, or damaged, even if the oil leakage is not severe at the moment, it must be repaired as soon as possible. The reasons are as follows:
Deformation will cause the oil pan and the gearbox housing to not fit tightly together, easily leading to oil leakage.
Leaking oil will cause insufficient lubrication in the gearbox, accelerate the wear of internal gears and bearings, and in severe cases, lead to the complete damage of the gearbox.
Handling methods:
Replace the new oil pan: This is the safest and most reliable solution. Even if the old part is repaired, it is difficult to ensure long-term sealing.
Replace the gearbox oil and filter screen: When replacing the oil pan, it is usually recommended to replace the gearbox oil and filter screen at the same time. Because the deformed or damaged oil pan may produce metal debris, contaminating the gearbox oil, continuing to use it will accelerate internal wear. Choose a formal repair point: It is recommended to go to a 4S store or a professional transmission repair shop for replacement, ensuring the quality of the parts and the installation process. Although the cost at a 4S store is higher, the original factory guarantee of the parts and more professional technical skills are provided.
Oil pan leakage (regardless of deformation)
Leakage is the direct manifestation of oil pan damage. The handling methods include:
Check and tighten bolts: Sometimes leakage is caused by bolts not being tightened or loosened during installation, so check and retighten them according to the specified torque.
Replace the sealing gasket/sealing glue: If the oil pan body is intact but the sealing gasket is aged or damaged, replacing the gasket can solve the problem.
Welding repair (only for minor cracks): For minor cracks, some repair shops can use welding repair, but this method is not applicable to severely damaged or aluminum alloy oil pans, and it cannot guarantee long-term reliability.
Replace the oil pan: For leakage caused by severe cracks, damage or deformation of the oil pan, replacing the new part is the only recommended solution.
Important reminder
Do not delay: Transmission oil is the "blood" of the transmission, and leakage will cause lubrication failure. Internal parts will quickly deteriorate due to high temperature and dry grinding. The repair cost is much higher than replacing the oil pan.
Regular inspection: It is recommended to have the technician check if there is any abnormal deformation or oil stains in the oil pan during vehicle maintenance.
Use qualified oil products: Use transmission oil that meets the manufacturer's specifications and replace it regularly according to the maintenance manual to extend the lifespan of the oil pan and the entire transmission.
Summary: Whether the oil pan is deformed, cracked or leaking, the most reliable and safe way to handle it is to replace the new oil pan, along with replacing the transmission oil and filter, to ensure the long-term reliable operation of the transmission.
