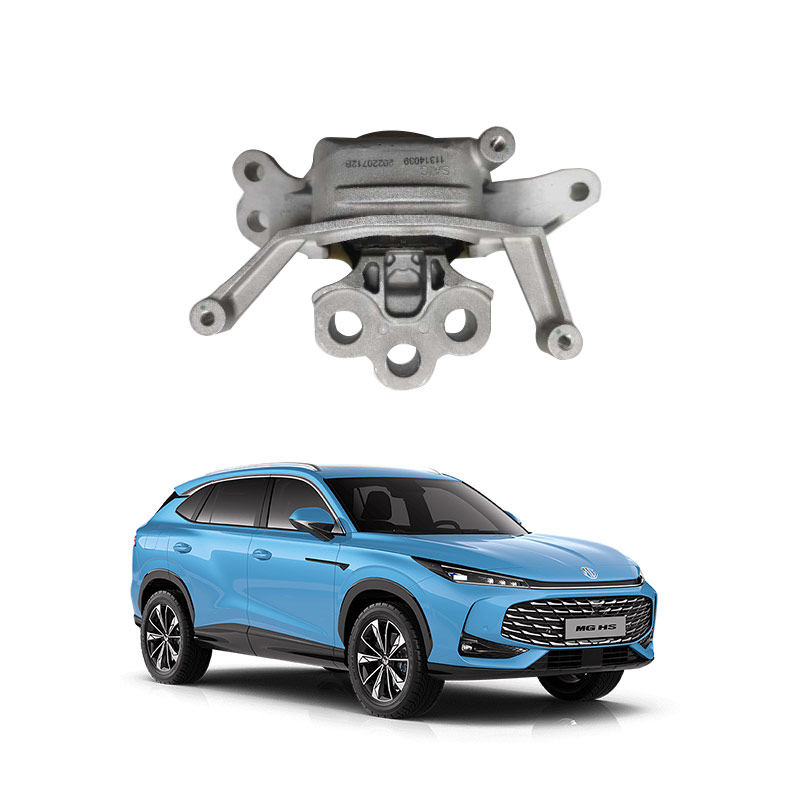

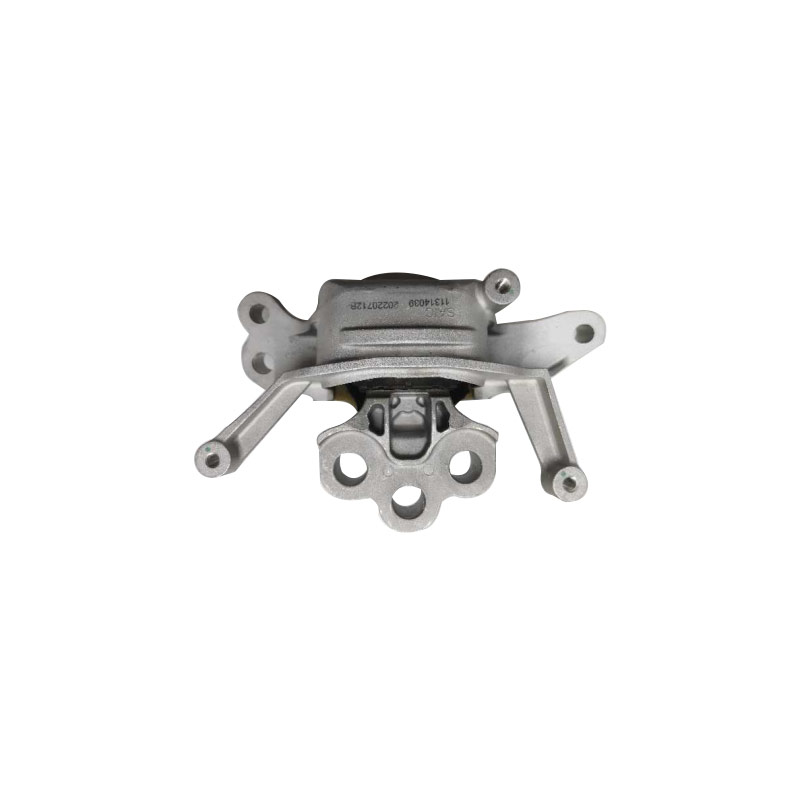

The function of the car transmission housing support
The car transmission housing bracket is a crucial component in the vehicle's transmission system, primarily functioning to support, fix, dampen vibrations, and ensure alignment. It directly affects the vehicle's driving stability, comfort, and component lifespan.
Main functions
Support and fixation of the transmission housing: The transmission housing bracket firmly fixes the transmission on the vehicle chassis, bearing its weight and preventing it from shifting or shaking during driving, acceleration, deceleration, or turning. This ensures the precise coordination between the transmission and components such as the engine and drive shafts, forming the basis for smooth power transmission.
Absorption and isolation of vibrations: The interior of the bracket usually contains flexible materials such as rubber, which effectively absorb and buffer vibrations and impacts generated by engine operation and road bumps. This significantly reduces vibration transmission to the vehicle body, lowering interior noise, and providing a quieter, smoother driving experience for passengers.
Mitigation of resonance and improvement of stability: Through shock absorption and fixation functions, the bracket can counteract the resonance generated by the transmission's operation. When the bracket is aged or damaged, vehicles may exhibit noticeable shaking, jolting, or jerking during start-up, idling, gear shifting (especially in second and third gears for acceleration), or reversing, potentially causing vibrations in the steering wheel, accelerator pedal, and brake pedal, and even endangering driving stability.
Protection of components and extension of lifespan: By reducing vibrations and impacts, the bracket effectively protects the precision gears and bearings inside the transmission from excessive shaking and abnormal wear. At the same time, it also reduces the impact on surrounding components such as the engine and vehicle structure, thereby extending the lifespan of related components.
Additional explanation
In actual maintenance and discussions, there may be confusion between the concepts of "transmission housing bracket" and "engine bracket" (engine foot gasket). Both have similar functions, but they target different objects: The transmission housing bracket specifically fixes the transmission, while the engine bracket fixes the engine. However, they together form the vehicle's shock absorption system, with one's damage affecting the other's operation.
The car transmission housing bracket is a key component in the vehicle's transmission system, primarily responsible for supporting and fixing the transmission, ensuring its stability during driving. It is usually made of high-strength metal materials (such as steel or aluminum alloy) and connected to the vehicle chassis or subframe through rubber bushings or hydraulic components to absorb vibrations, reduce noise, and enhance driving comfort and vehicle safety.
Main functions
Support and fixation: Firmly installs the transmission on the frame, preventing it from shifting or shaking during acceleration, deceleration, or bumpy roads, ensuring precise coordination between the transmission and the engine.
Vibration absorption and noise reduction: Through internal elastic components (such as rubber bushings), it absorbs and disperses vibrations and impacts generated by the transmission's operation, reducing vibration transmission to the vehicle body and lowering noise, enhancing passenger comfort.
Extension of lifespan: Effectively buffers impact loads, reducing stress on the transmission housing and adjacent components, helping to extend the lifespan of the transmission system.
Structure and types
The structure of the transmission housing bracket typically includes fixed points and supporting points, connected to the chassis via bolts. Depending on the vehicle model and design, its specific form varies:
Main bracket: Performs the main supporting function, often located at the connection between the transmission and the vehicle body or subframe.
Torque bracket: In some vehicle models, this component integrates with the engine bracket to suppress the torsional deformation of the powertrain during acceleration, ensuring smooth power transmission.
Subframe connection point: Some vehicle models indirectly support the transmission through the subframe, forming a multi-point fixation structure to enhance overall stability.
Maintenance suggestions
Regularly inspect the bracket for signs of cracks, deformation, rubber aging, or rust. If the transmission exhibits abnormal vibrations, abnormal noises, or increased body shaking, it is necessary to repair or replace it promptly to avoid secondary damage to the transmission and other components.
The car transmission housing bracket is a crucial component in the vehicle's transmission system, primarily functioning to support, fix, dampen vibrations, and ensure alignment. It directly affects the vehicle's driving stability, comfort, and component lifespan.
Main functions
Support and fix the transmission housing: The transmission housing bracket firmly fixes the transmission to the vehicle chassis, bearing its weight and preventing it from moving or shaking during driving, acceleration, deceleration, or turning. This ensures the precise coordination between the transmission and components such as the engine, drive shaft, etc., and is the foundation for smooth power transmission.
Absorb and isolate vibrations: The interior of the bracket usually contains flexible materials such as rubber, which can effectively absorb and buffer vibrations and impacts generated by engine operation and road bumps. This significantly reduces the transmission of vibrations to the vehicle body, lowering interior noise, and providing a quieter, smoother driving experience for passengers.
Dampen resonance and enhance stability: Through shock absorption and fixation functions, the bracket can counteract the resonance generated by the transmission's operation. When the bracket is aged or damaged, the vehicle will exhibit noticeable shaking, jolting, or bumping during startup, idling, gear shifting (especially in second and third gears for acceleration), or reversing, and may even cause vibrations in the steering wheel, accelerator pedal, and brake pedal, and in severe cases, endanger driving stability.
Protect components and extend lifespan: By reducing vibrations and impacts, the bracket can effectively protect the precision gears and bearings inside the transmission from abnormal wear and collisions caused by excessive shaking. At the same time, it can also reduce the impact on surrounding components such as the engine and vehicle structure, thereby extending the lifespan of related components.
Additional explanation
In actual maintenance and discussions, there is sometimes confusion between the concepts of "transmission housing bracket" and "engine bracket" (foot glue). Both have similar functions, but they target different objects: The transmission housing bracket specifically fixes the transmission, while the engine bracket fixes the engine. However, they together form the vehicle's shock absorption system, and one damage will directly affect the working state of the other.
