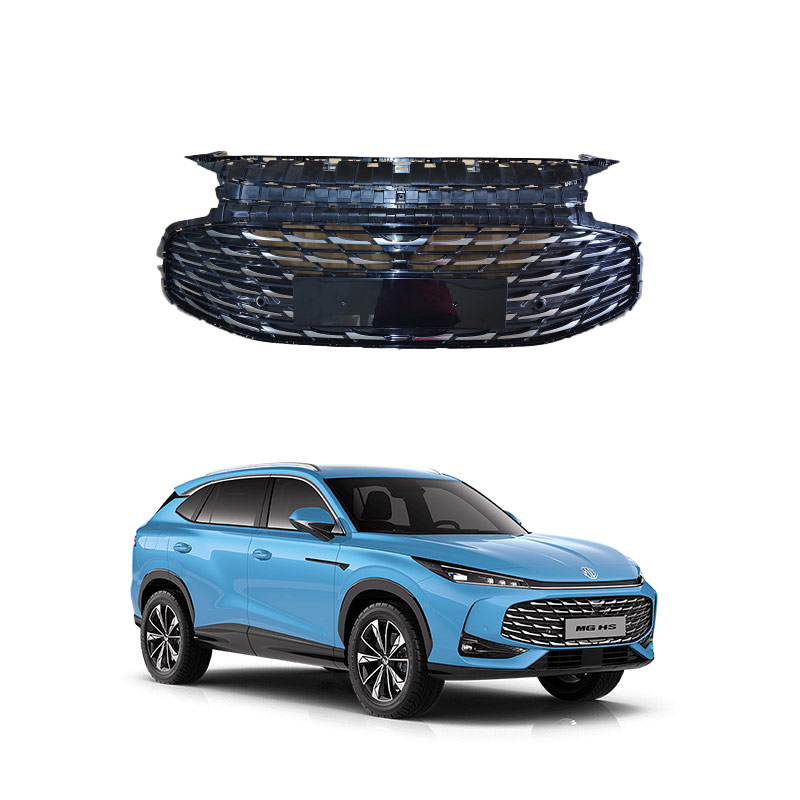

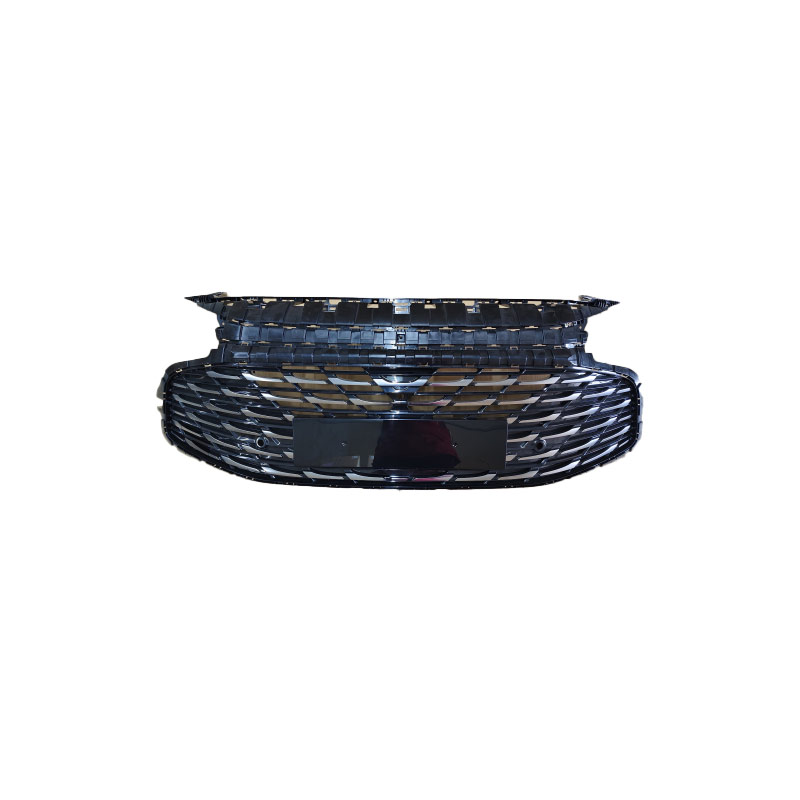

Car grille - with radar holes function
The design of car grilles with radar holes is a typical manifestation of integrating functionality and intelligence in modern automotive engineering. This design is not simply opening holes on the grille; instead, it aims to integrate advanced driver assistance system sensors while maintaining the original core function of the grille.
The main functions of car grille with radar holes can be summarized as follows:
Integrating intelligent driving sensors: The core purpose of the radar holes is to provide installation positions and detection channels for sensors such as millimeter-wave radars or ultrasonic radars. These sensors are the "eyes" of advanced driver assistance systems (ADAS) such as adaptive cruise control (ACC), automatic emergency braking (AEB), and forward collision warning (FCW). Integrating radars within the grille ensures that the sensors have the best forward vision and can precisely detect the distance and relative speed of vehicles, pedestrians, or obstacles.
Maintaining aerodynamic performance: Compared to installing radars separately at the bumper or other positions, integrating radars within the grille design can make the front-end styling more smooth and unified. This helps reduce air turbulence and optimize the vehicle's aerodynamic performance, thereby reducing the drag coefficient and having a positive impact on improving fuel economy and range (especially for electric vehicles).
Ensuring core heat dissipation and protection functions: The design of radar holes is an optimization based on the original grille structure of the grille. It does not replace the traditional functions of the grille. It can still effectively:
Heat dissipation and ventilation: Guide cold air into the engine compartment to cool components such as water tanks and condensers, maintaining the stable operation of the power system.
Foreign object protection: Through honeycomb or grid structures, intercept large-sized foreign objects such as stones and branches, protecting the radiator and other precision components from damage.
Brand design and recognition: The shape, position, and number of radar holes are sometimes incorporated into the overall front-end design language of the brand, becoming a unique visual element that enhances the vehicle's brand recognition. For example, the grille design of certain models may ingeniously incorporate radar holes into the pattern of the grille.
In summary, car grilles with radar holes are a "multi-functional integrated body". They ensure the "basic mission" of engine heat dissipation and driving safety protection while providing a key hardware carrier for the vehicle's intelligent functions, which is an indispensable part of modern automobiles in the pursuit of performance, safety, and technological sophistication. When conducting related maintenance, special attention should be paid to the calibration of radar sensors to ensure the normal operation of the auxiliary driving functions.
The material of car grille with radar holes is usually the same as that of the ordinary grille, mainly using two types: plastic or metal. The specific choice depends on the vehicle model positioning, cost, and functional requirements. The material of the radar hole area needs to take into account structural strength, impact resistance, and compatibility with radar signals (such as avoiding excessive reflection or shielding of radar waves by metal).
Main material types
Plastic material: This is the most mainstream choice, especially suitable for grille with radar integration.
ABS plastic: Low cost, easy to process and shape, suitable for complex structures (such as the curved surface around the radar holes), but has relatively poor impact resistance and is prone to cracking at low temperatures.
Polycarbonate (PC): Excellent impact resistance and high transparency, often used in areas that need to balance aesthetics and strength, able to better withstand stress concentration around the radar holes.
Polypropylene (PP): Heat-resistant, corrosion-resistant, low cost, commonly seen in mid-range models, but the surface texture and strength are not as good as ABS or PC.
Metal material: Mostly used in high-end or performance models, but the radar hole area requires special design.
Aerospace aluminum/aluminum alloy: Lightweight, resistant to oxidation and corrosion, surface can be polished or sprayed for a high-end visual effect. However, metals can interfere with radar waves, so the radar hole area usually uses non-metallic materials (such as engineering plastics) to be embedded or partially replaced to ensure the normal operation of the radar.
Carbon fiber: It has high strength and is lightweight, often used in modification parts or high-end vehicles, but it is costly and is prone to electrochemical corrosion when combined with metals. Non-metallic transitions are also required at the radar hole area.
Key design points
The material selection for the radar hole area not only concerns durability but also radar performance. To avoid metal interference with the signal of millimeter-wave radars, manufacturers usually adopt the following solutions:
Embed engineering plastics or composite materials at the radar hole position to form "non-metallic windows".
Use special coatings or structural designs to make the metal mesh form a signal path around the radar hole.
Some models will integrate the radar directly into the bumper or headlights instead of the grille to avoid material interference issues.
In summary, the main body of the grille with radar holes is mostly ABS, PC, etc. engineering plastics, or non-metallic materials are partially used on the metal substrate to balance aesthetics, strength, and radar function requirements.
