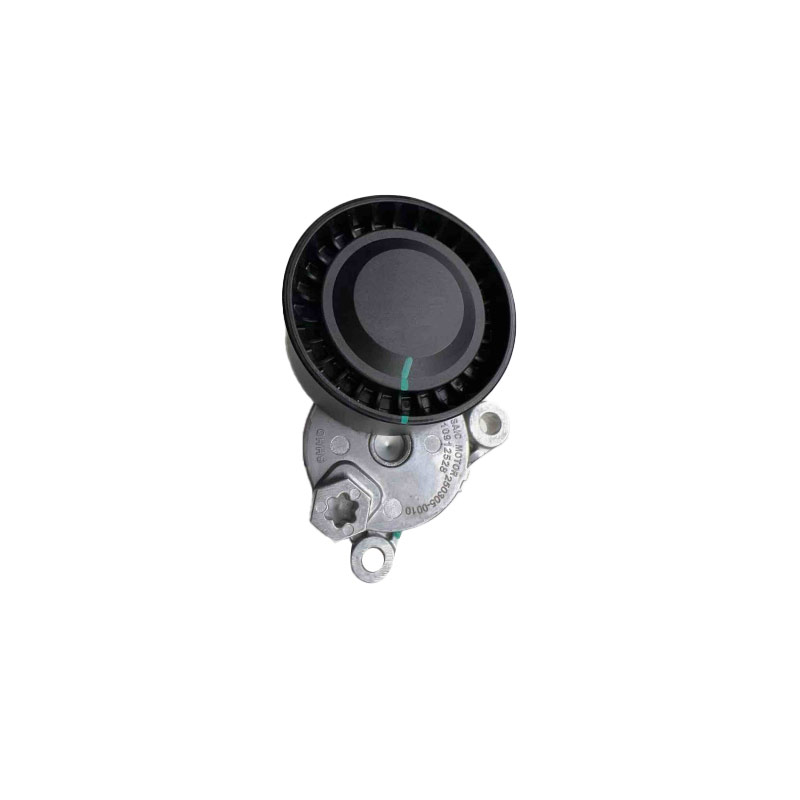

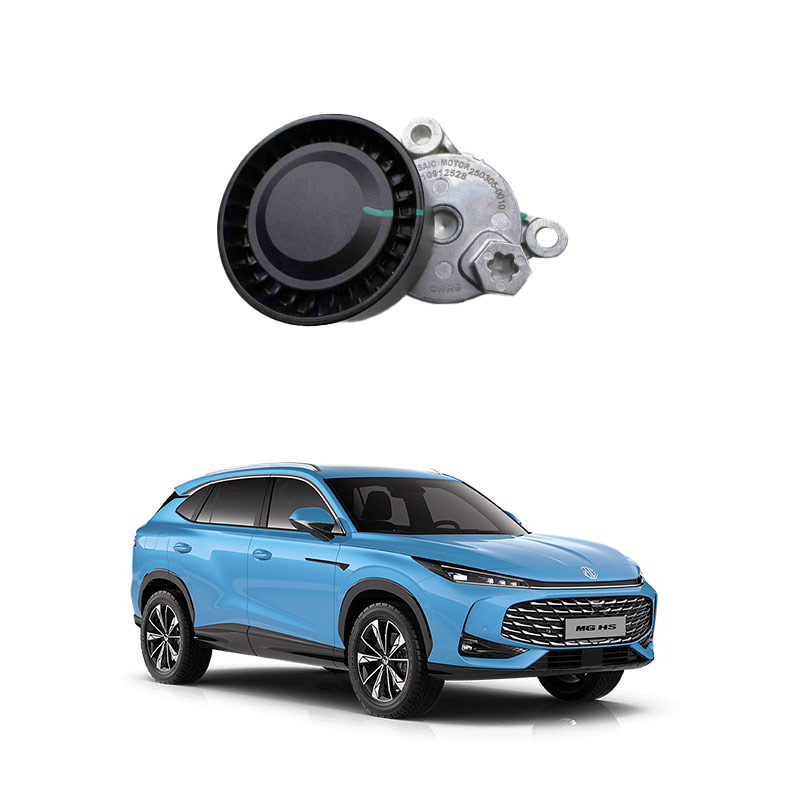

What is the tensioning wheel of the car generator?
The tensioning wheel of the car generator is a crucial component in the accessory transmission system of the car engine. It is mainly used to regulate and maintain the appropriate tension of the driving belt, ensuring that the accessories such as the generator can operate stably and efficiently.
Essentially, it is an automatic tensioning device, usually consisting of a fixed housing, tensioning arm, wheel body, torsion spring, rolling bearing, and spring sleeve, etc. When the belt undergoes slight elongation or relaxation due to long-term use, the torsion spring or hydraulic system inside the tensioning wheel will automatically adjust the tension force, causing the wheel body to always press against the belt, thereby:
Preventing belt slipping: ensuring that the accessories such as the generator receive sufficient driving force, avoiding insufficient power generation due to slipping.
Reducing vibration and noise: making the belt run more smoothly and reducing abnormal noises such as "clicking" or "howling" at the front end of the engine.
Extending belt lifespan: maintaining the optimal tension to avoid accelerated wear of the belt due to being too loose or too tight.
Common fault manifestations include: continuous "clicking" noise during engine startup or operation (especially more obvious in cold engines), increased noise during acceleration, abnormal operation of the generator (such as dim lights), etc.
Due to its collaborative work with the belt and being a wear-prone part, it is generally recommended to replace the generator tensioning wheel along with the belt when replacing the belt to ensure the reliability and safety of the transmission system.
The recommended replacement cycle is 6-8 thousand kilometers of driving or every 2 years.
The main function of the car generator tensioning wheel is to regulate the tension of the driving belt, ensuring the stable and efficient operation of the engine accessory system.
It automatically adjusts the tension force to reduce vibration and noise during belt operation, prevent belt slipping, and thereby guarantee the normal operation of accessories such as the generator, air conditioning compressor, etc.
The core functions are summarized as follows:
Maintaining belt tension: automatically compensating for the tension force according to the elongation caused by belt wear or aging, avoiding slipping due to too loose tension or excessive wear of bearings due to too tight tension.
Reducing vibration and noise: making the belt run more smoothly and reducing abnormal noises in the engine compartment (such as continuous "clicking" sounds).
Preventing system failures: if the tensioning wheel fails, it may cause belt slipping, unstable generator output, and even belt breakage, resulting in interruption of engine power transmission.
Common fault manifestations: increased noise during acceleration (especially at 1500 rpm), engine shaking, ignition difficulty, or continuous sharp noises. Maintenance Advice: The tensioner pulley of the generator is a wear-prone component. It is recommended to replace it along with the drive belt and idler wheel at 60,000 to 80,000 kilometers or when abnormal sounds occur, to ensure the reliability of the transmission system.
The malfunction of the tensioning wheel in the car generator refers to an abnormality in the component used to regulate the tension of the generator belt, causing instability in the belt-driven system. This component is a wear-prone part. After long-term use, it may fail due to aging, wear, or insufficient lubrication, thereby triggering a series of engine operation problems.
Main fault manifestations
Increased engine noise during rapid acceleration: Especially when the engine speed reaches around 1500 revolutions per minute, a distinct "buzzing" or "chirping" noise can be heard, which is a typical sign of damaged tensioning wheel bearings or failed springs.
Engine timing skipping teeth: If the generator belt is shared or associated with the timing system, insufficient tension may cause the belt to slip or skip teeth, disrupting the ignition and valve timing, and in severe cases, causing valve collisions with the piston, resulting in significant damage such as valve deformation.
Engine shaking: Due to the unstable belt drive, the engine loses coordination in operation, manifesting as obvious shaking at idle or during driving.
Difficulty in starting or inability to start the engine: Due to timing disorder, the mixture cannot be ignited at the correct time, making it difficult to start the vehicle or even completely unable to start.
Tensioning belt slipping or abnormal noise: When the air conditioning or other loads increase, a "gurgling" or "popping" sound of the tensioning belt slipping can be heard, especially more pronounced when the engine is cold or the battery is depleted.
The dashboard fault light turns on: The engine control unit detects abnormal operation (such as engine misfire, speed fluctuations), triggering the fault light (such as the Check Engine light).
Impact and risks of the fault
If the early symptoms are ignored, the fault will gradually worsen:
Initially, only noise or slight shaking are present;
In the middle stage, power loss and increased fuel consumption occur;
In the later stage, it may cause severe misalignment of the timing system, resulting in valve bending, piston damage, and extremely high repair costs.
Suggested handling methods
Timely inspection: If any of the above symptoms occur, it is necessary to promptly check the tensioning wheel and belt condition at a professional repair station.
Suggestion for replacement: The tensioning wheel is usually replaced at the same time as the timing belt, as both have similar lifespans and overlapping assembly procedures. Replacing them together can save costs and avoid frequent repairs in the short term.
Regular maintenance: According to the maintenance manual of most vehicle models, the tensioning wheel should be inspected or replaced at 8-10 thousand kilometers of driving or 3-5 years of use.
Daily observation: Check if the belt is loose, if the wheel body has cracks or oil stains.
Note: In some materials, "generator tensioning wheel" and "tensioning wheel" are different names for the same component, with the same function, both referring to the belt tensioning device.
