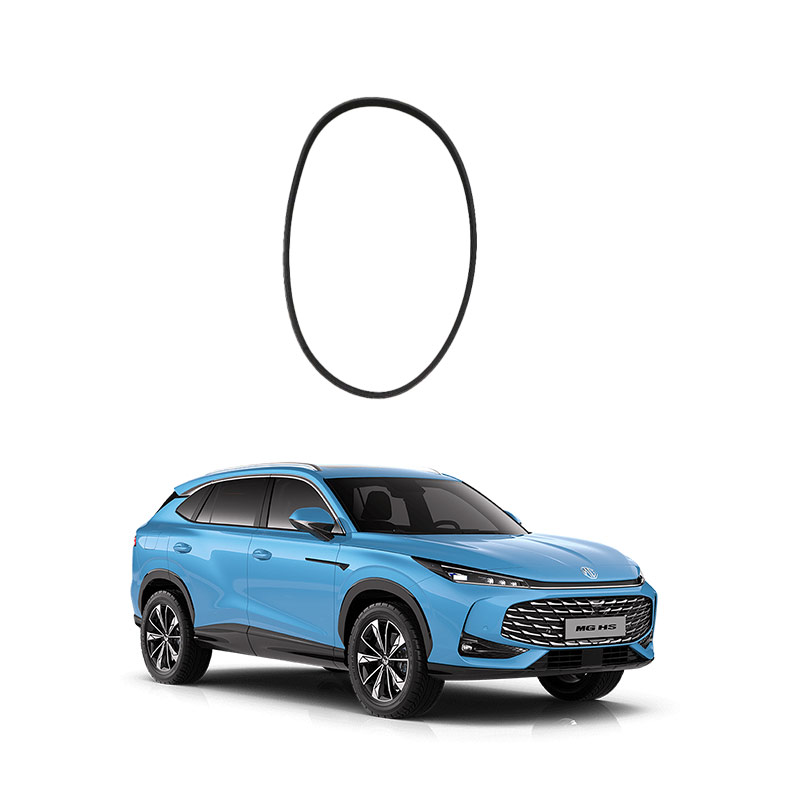

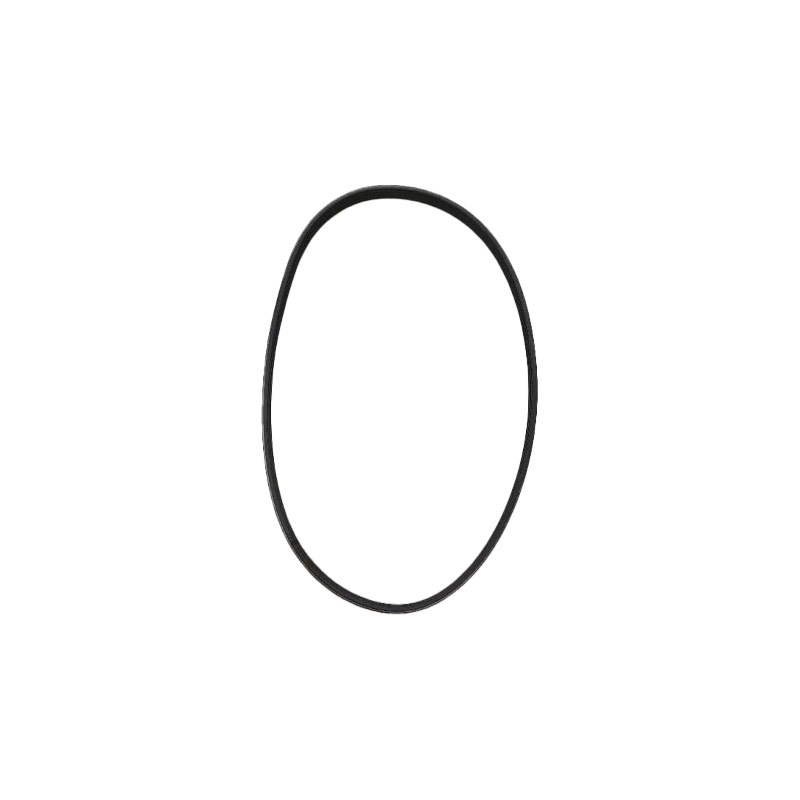

The working principle of the belt in an automotive generator
The working principle of the car generator belt is to transfer power to the generator through the rotation of the engine crankshaft by means of friction. This drives the generator to generate electricity.
The specific process is as follows:
When the engine is running, the crankshaft drives the pulley connected to it to rotate.
The generator belt is placed on multiple pulleys (including the crankshaft pulley and the generator pulley, etc.), and the rotation of the crankshaft pulley is transmitted to the generator pulley through the belt.
The rotation of the generator pulley drives the rotor inside the generator to rotate, cutting the magnetic lines of force to generate electricity, which charges the car battery and supplies power to the electrical devices in the car. During operation, the belt needs to maintain an appropriate tension to ensure smooth and efficient power transmission.
The belt of the car generator is broken and cannot continue driving. It is necessary to stop immediately for inspection.
The belt of the generator (also known as the accessory belt or drive belt) is responsible for driving multiple key accessories of the engine. Once it breaks, it will cause a series of chain failures, and in severe cases, it can lead to permanent damage to the engine.
The main consequences of a generator belt breakage
Power system collapse: The generator stops working, and the vehicle will rely entirely on the battery for power. The battery's capacity is limited, usually depleting after 3-5 kilometers, after which the vehicle will stall due to power loss, and all lights, gauges, steering assist, etc. will fail.
Cooling system interruption: The belt simultaneously drives the water pump. Once it breaks, the cooling fluid cannot circulate, and the engine temperature will rapidly rise, easily causing cylinder gasket burning, cylinder seizure, and even engine.
Steering assist loss： If the vehicle is equipped with a hydraulic assist steering system， a broken belt will make steering extremely heavy， greatly increasing the difficulty of control and endangering driving safety.
Air conditioning failure： The air conditioning compressor stops working， and the cooling or heating function in the vehicle is lost.
Other components damage： When the belt breaks， it may fly and damage surrounding wires， sensors， or the engine hood， causing secondary damage.
Emergency handling suggestions
Immediately stop safely： When you notice a broken belt or hear an abnormal noise， turn on the hazard warning lights， try to control the vehicle to slowly pull over to a safe area， and do not attempt to drive.
Do not attempt to restart： Especially when the water temperature gauge has already alarmed， restarting the engine again may cause irreversible severe damage.
Contact professional rescue： Call for road rescue or towing services and send the vehicle to a regular repair shop for inspection.
Replacement and prevention
Replacement cycle： Generally， it is recommended to check once every 6-8 thousand kilometers or every 2-3 years. If the vehicle frequently travels in hot and dusty environments， it should be checked earlier.
Check points： When replacing， also check the tensioner and idler wheel. Their wear will cause the new belt to be damaged prematurely.
Daily observation： Pay attention to whether the belt has cracks， wear， hardening， or abnormal friction sounds. If any abnormalities are found， deal with them immediately.
Important reminder： Do not confuse "generator belt" with "timing belt". A broken timing belt will directly cause the valve to hit the cylinder， and the repair cost will be extremely high； while a broken generator belt， although not directly damaging the engine internals， will cause the engine to overheat and lose power， indirectly causing serious failures.
The main reason for the squeaking sound of the generator belt is aging， loosening， or malfunction of the tensioner causing slipping and friction. It is necessary to check in time to avoid the risk of breakage. The following is a detailed analysis and handling suggestions：
The core reason for the squeaking sound of the generator belt
The generator belt squeaking is mainly caused by the following problems， ranked by frequency of occurrence：
Belt aging or wear： After long-term use， the rubber hardens and cracks， the friction coefficient decreases， and it slips during operation， making a rubbing sound (more obvious during cold start).
Tensioner failure： The spring elasticity decreases or the bearing wears， causing the belt to be slack (the middle part sinks more than 0.5 cm is abnormal)， causing a rubbing sound.
Belt pulley contamination or damage： The surface is stained with oil， dust， or the bearing is worn， destroying the fit between the belt and the pulley groove.
Excessive load on accessories： If the air conditioning compressor fails or the bearing is stuck， it increases the load on the belt， causing it to slip.
Self-check and temporary handling steps
Check the belt condition：
After cooling down， press the middle of the belt， if the sinking depth is >0.5 cm， adjust the tension.
Observe surface cracks， chipping， or shiny marks (aging indicators).
Emergency handling：
If it is due to oil or dust： Use a dry cloth to wipe the belt pulley and the belt surface.
If slightly loose： Reduce the use of air conditioning， drive at low speed to the repair point.
Risk warning： If the squeaking sound persists or the belt breaks， it will cause the generator to fail， the vehicle to break down， and it needs to be repaired within 48 hours.
