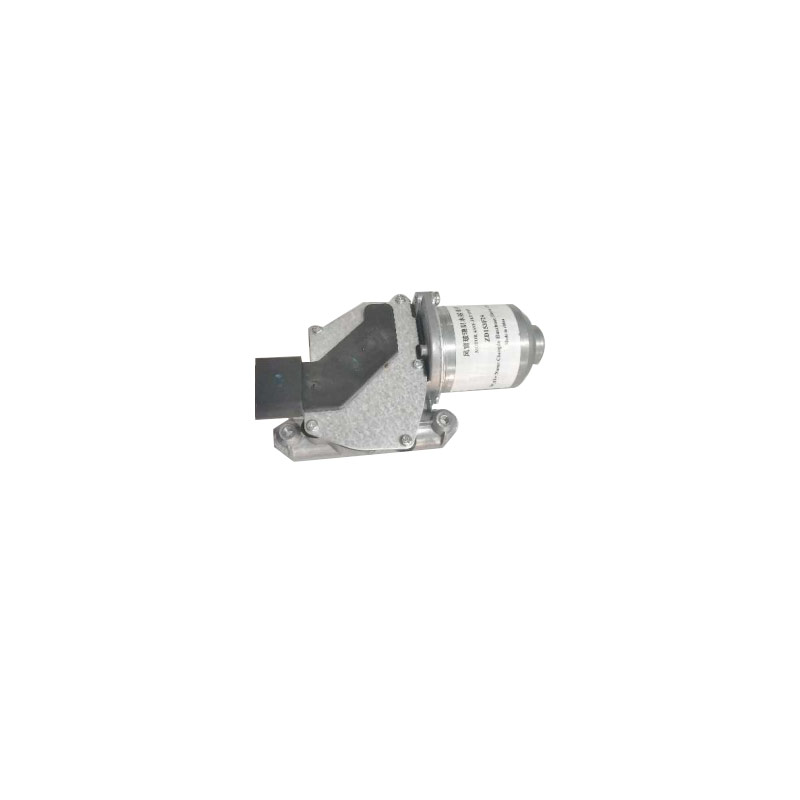

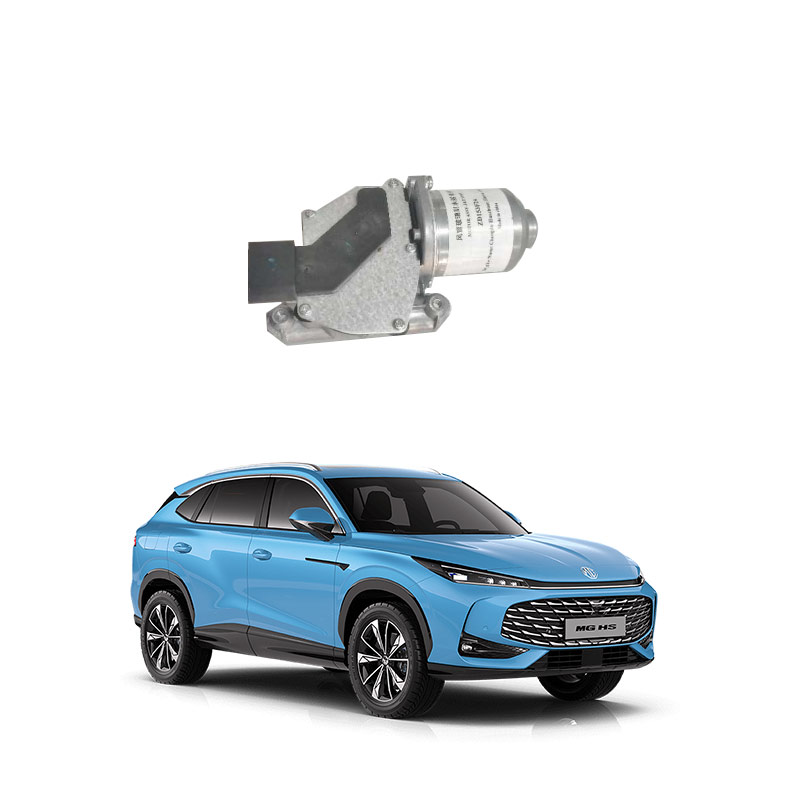

What is the front windshield wiper motor of a car?
The front windshield wiper motor of a car is installed below the front windshield and is the core electric device that drives the front wipers to operate. It is the heart of the entire wiper system and converts electrical energy into mechanical motion, thereby driving the wiper arm and wiper blade to swing back and forth, removing rain, snow, dust, and other obstructions from the windshield, ensuring the driver has a clear view ahead and enhancing driving safety.
Its main features and working principle are as follows:
- Power source and type: Most modern cars' front wiper motors use a DC permanent magnet motor, which is directly powered by the car's battery. This motor has a relatively simple structure, is easy to control, and responds quickly.
- Core working principle: The high-speed rotation motion output by the motor cannot directly drive the wiper arm. Therefore, the motor is usually integrated with a worm gear reduction mechanism. This mechanism serves to reduce speed and increase torque, converting the high rotational speed and small torque output of the motor into a suitable low rotational speed and large torque output for driving the wiper arm.
- Motion conversion: The output shaft of the reduction mechanism is connected to the four-bar linkage mechanism (or crank and connecting rod mechanism). This mechanical structure converts the continuous rotation motion of the motor into the left-right reciprocating swing of the wiper arm on the windshield.
- Control and speed variation: Through the wiper switch, the driver can select different gears (such as intermittent, low speed, high speed). The motor usually adopts a multi-brush structure, and by changing the number of coils in series between different brushes, the input current intensity can be adjusted, thereby achieving multi-speed control of the motor.
In summary, the front windshield wiper motor is a precise component that integrates an electric motor, a reducer, and a motion conversion mechanism. Although small, it is crucial for driving safety.
The front windshield wiper motor is the core power device of the wiper system. Its main function is to convert electrical energy into mechanical energy to drive the wiper arm to swing back and forth, thereby removing rain, snow, dust, and other obstructions from the windshield, ensuring the driver has a clear view ahead and enhancing driving safety.
The specific working principle and functional characteristics are as follows:
- Power conversion and motion mechanism: The motor generates rotational force through a built-in permanent magnet DC motor, which is reduced in speed and torque by a worm gear reduction mechanism, and then converted into a low rotational speed and large torque output suitable for driving the wiper arm through a four-bar linkage mechanism (or crank and connecting rod mechanism).
- Multi-speed control: A three-brush structure or electronic control method is adopted, and the input current intensity is adjusted to achieve the switching between low speed, high speed, and intermittent gears, adapting to different rainfall conditions.
- Automatic reset function: A reset device is equipped to ensure that the wiper arm accurately returns to the preset position at the bottom of the windshield when it stops working, avoiding blocking the view.
- System integration: It is usually integrated with the reducer, output shaft, and other components in the wiper drive assembly and installed below the windshield, with a compact structure and high reliability.
In addition, some high-end models of modern vehicles have adopted brushless DC motors or ECU electronic control units to achieve more precise and energy-efficient wiper control.
When the front windshield wiper motor fails, first, it is necessary to determine the specific problem through observation and simple checks, and then decide whether to handle it yourself or seek professional repair.
Common manifestations of wiper motor damage
- Abnormal noise: There is a distinct "squealing" or "clattering" sound when the wiper is running, rather than the normal smooth running sound.
- Poor operation: The wiper arm moves slowly, stops, or cannot continuously swing.
- No action but water spraying: The wiper only sprays water but does not swing, which may indicate a motor failure (first, check the water sprayer motor or relay problem).
- Smoky smell: When starting the wiper, a distinct burnt smell is detected, which is a signal that the motor's internal coils are overheating and burning. Silent Response: When operating the wiper switch while the vehicle is powered on, no sound of the motor's operation can be heard.
Fuse Failure: The wiper does not work, and it is also found that the related fuse is burned out. This might be caused by an internal short circuit in the motor resulting in excessive current.
Preliminary Inspection and Handling Steps
Before confirming it is a motor issue, please first rule out other common causes:
- Check the transmission link rod: Open the hood and check if the transmission link rod connecting the wiper arm is misaligned or broken.
- Check the fuse: Locate the vehicle fuse box (usually in the engine compartment or under the driver's side dashboard), locate the wiper fuse according to the manual, and check if it is blown. If blown, replace it with a new part of the same specification, but if it blows again, there must be a circuit or motor fault.
- Check the power supply: Disconnect the battery negative terminal to ensure safety. Remove the wiring connector of the wiper motor, turn on the ignition switch, and use a multimeter to measure if there is 12V or so at the connector. If there is no voltage, the problem lies in the wiring or the wiper switch; if there is voltage but the motor does not turn, the motor itself is highly likely to be damaged.
Maintenance Suggestions
- Cases that can be handled by yourself: If it is only a slight corrosion of the conductive plate (you can disassemble the motor and sandpaper it) or aging and water ingress of the sealing gasket (you can temporarily handle it with engine sealant), and you have the ability to do it yourself, you can refer to the maintenance manual to try. Carbon brushes are also replaceable components.
- Cases that require professional repair: If the motor has a severe burnt smell, internal magnetic pole damage, or severe jerking during operation, it is strongly not recommended to disassemble it yourself. Modern wiper motors are mostly of a sealed design, and random disassembly can easily cause irreversible damage. At this time, replacing a brand-new motor is the safest and most reliable solution.
Summary: For wiper motor failures, safety comes first. Simple circuit and link rod checks can be performed by yourself, but any issues involving the internal of the motor, especially when there is a burnt smell, please immediately go to a professional car repair shop for diagnosis and replacement to ensure your driving safety.
