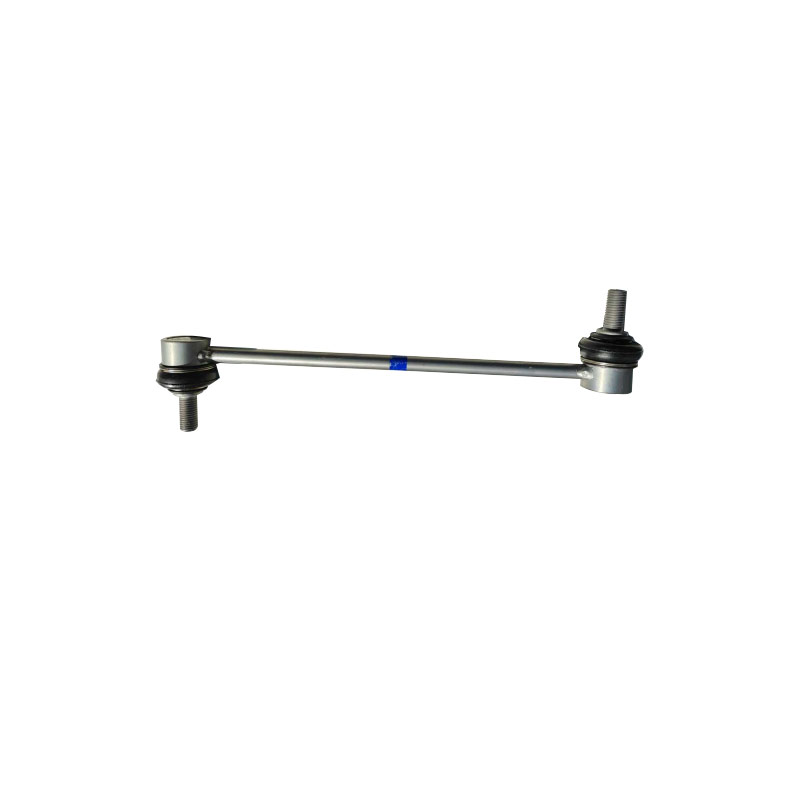

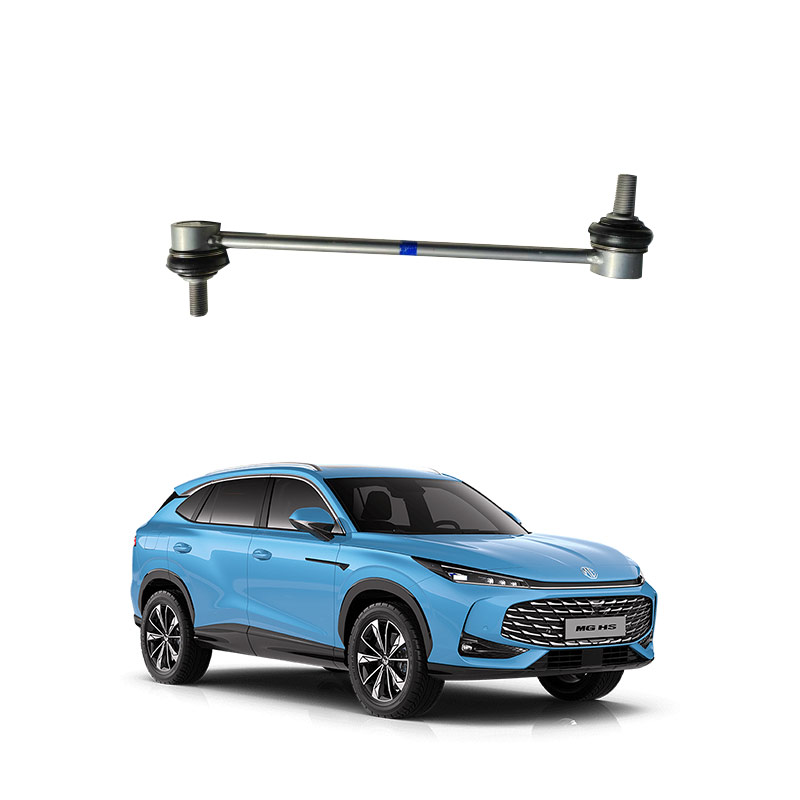

What is the front stabilizer bar connecting rod of a car?
The front stabilizer bar connection rod is a crucial component in the vehicle's front suspension system. It typically works in conjunction with the front stabilizer bar (also known as a sway bar or lateral stabilizer bar), and its main function is to suppress the vehicle's side roll during turns, enhancing handling stability and driving safety.
Core Function
Reduce Side Roll: When the vehicle turns, centrifugal force causes the vehicle body to tilt outward. The front stabilizer bar connection rod connects the stabilizer bar to the suspension system (such as the shock absorber arm or spring seat), transferring the pressure from the outer suspension to the inner suspension, making the left and right wheels more evenly loaded, and significantly reducing the amplitude of the vehicle's tilt.
Improve Handling: By enhancing the vehicle's rigidity, it reduces the vehicle body's twisting during cornering, making the steering response more precise and lane changing more stable, especially at high speeds or during emergency avoidance.
Improve Comfort: When passing over uneven road surfaces, it helps to distribute the impact force and avoids excessive pressure on a single suspension, improving the riding comfort.
Structure and Position
Material: Usually made of high-strength steel (such as 60Si2MnA) or composite materials, it has good elasticity and torsional resistance.
Installation Position: Located in the vehicle's front suspension system, one end is connected to the frame or the side of the vehicle body, and the other end is connected to the upper arm of the front shock absorber or the spring seat, running laterally beneath the chassis, often found inside the chassis guard.
Connection Method: Connected to the stabilizer bar and the suspension system through rubber bushings or ball joints. These bushings tend to age and are common failure points.
The front stabilizer bar connection rod (also commonly known as the front stabilizer bar link or front sway bar link) is a key component in the vehicle's suspension system. Its main function is to connect the front stabilizer bar (sway bar) to the control arm or shock absorber of the suspension system, thereby playing a core stabilizing role during vehicle operation.
The specific functions can be summarized as follows:
Suppress Side Roll: When the vehicle turns, due to centrifugal force, the vehicle body tends to tilt outward. At this time, the movements of the left and right suspensions are not synchronized, and the force is transmitted through the front stabilizer bar connection rod to the stabilizer bar, causing it to twist, generating an opposing elastic force to resist the side roll and keep the vehicle body stable.
Improve Handling Stability and Steering Performance: By effectively controlling the side roll, the vehicle can better maintain tire contact with the ground during cornering, improving grip, and making the steering response more precise and the vehicle's posture more controllable, thereby significantly enhancing driving confidence and safety.
Reduce Abnormal Tire Wear: With reduced side roll, the tire contact area becomes more uniform, avoiding excessive wear on a single tire, and helping to extend the tire lifespan.
Improve Ride Comfort: The stabilizer bar connection rod assists the stabilizer bar in absorbing and buffering lateral impacts caused by uneven road surfaces or steering, reducing vehicle body vibrations and improving riding comfort.
Enhance Chassis Rigidity: During high-speed cornering or intense driving, the stabilizer bar link and the stabilizer bar work together to effectively suppress chassis distortion and enhance the overall structural rigidity of the vehicle.
Important Note: If the front stabilizer bar connection rod is damaged or aged (such as cracked rubber bushings or worn ball joints), the lateral stabilizing function will fail, resulting in a significant increase in the vehicle body's side roll amplitude during turns, unstable handling, and in extreme cases, a risk of rollover, and it may also cause secondary damage due to loose components colliding with other chassis parts. Therefore, although this component is small, it is of vital importance to the safety and handling of the vehicle. It is recommended to check its condition regularly.
The front stabilizer bar connecting rod is a key component in the suspension system, primarily serving to connect the vehicle body with the stabilizer bar and suppressing the side roll during vehicle转弯， thereby enhancing driving stability and handling performance. If this component fails， it will pose a direct threat to driving safety.
Consequences of failure
Significant decline in handling performance： A damaged connecting rod will cause the lateral stability function to fail， resulting in a significant increase in the side roll amplitude during turning or lane changing， and the steering wheel response becoming sluggish or erratic， increasing the risk of loss of control.
Increased safety hazards： If the connecting rod breaks or is in a free state， its end may collide violently with other components of the chassis (such as shock absorbers， suspension arms) during driving， generating abnormal sounds and even causing secondary damage. In extreme cases， it may lead to a rollover accident.
Damage to driving comfort： The faulty component will cause abnormal noises such as "thumping" and "clattering" from the chassis， especially more noticeable when passing over bumpy roads or减速bumps， affecting the driving experience.
Chain failure risk： The failure of the connecting rod will increase the load on other components of the suspension system (such as stabilizer rubber sleeves， ball joints， shock absorbers)， accelerating their wear or aging， and forming a chain failure.
Typical failure cases and solutions
Case One： A Cadillac that had traveled 200，000 kilometers experienced wear on the ball joint of the small connecting rod of the stabilizer bar and damage to the dust cover， resulting in internal lubrication failure and looseness. The maintenance personnel temporarily used plastic sheets to pad the rubber sleeve to eliminate the gap， but experts recommended that the original factory rubber sleeve must be replaced to ensure long-term safety.
Case Two： A Zero Run T03 owner in Jiangsu experienced four instances of the front stabilizer bar connecting rod breaking within less than a year. The 4S store determined it to be a batch quality issue of parts and returned the remaining inventory to the manufacturer. This case highlights the systemic risks caused by component quality defects.
Case Three： A Changhe Suzuki Langdi owner in Shanghai suddenly felt the steering wheel wobbling while driving on an elevated road. Inspection revealed that the ball joint of the connecting rod was severely loose. The repair confirmed that it was caused by rubber aging. After replacing with a reinforced part， the stability of the chassis was significantly improved.
Handling suggestions
Stop driving immediately for inspection： Once abnormal noises from the chassis， steering instability， or increased side roll are detected， stop driving immediately to avoid continuing on high-speed or complex road conditions.
Professional maintenance and replacement： Go to a reputable repair shop for a comprehensive inspection. The damaged connecting rod must be replaced， and the status of stabilizer rubber sleeves， ball joints， and other related components should also be checked synchronously.
Choose genuine parts：优先选择 original factory or quality-reliable aftermarket parts to avoid repeated failures due to inferior parts.
Regular maintenance and attention： Especially for vehicles with a vehicle age of over 5 years or a mileage of over 100，000 kilometers， the front stabilizer bar connecting rod should be included in the regular chassis inspection items.
Important reminder： The front stabilizer bar connecting rod is not a "delayed repair" component. Its failure directly affects driving safety. Any侥幸psychology may lead to serious consequences. Timely replacement is the only safe option.
