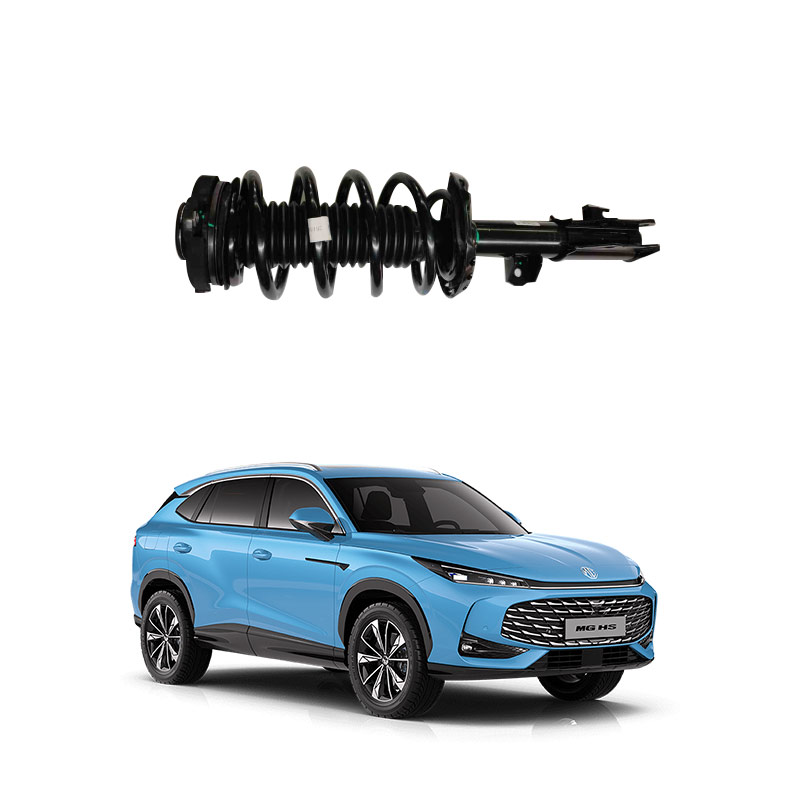

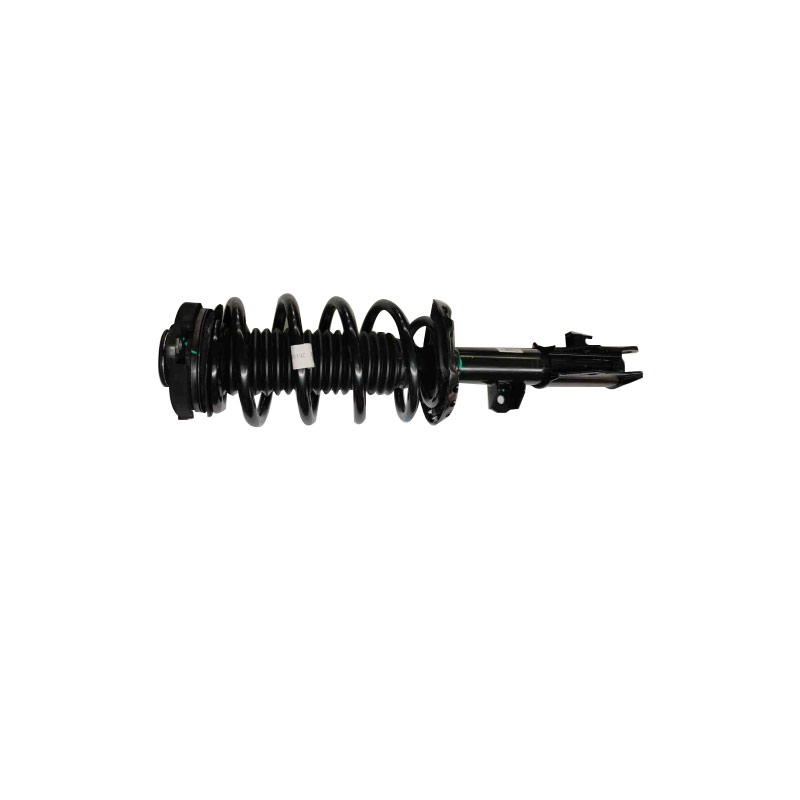

What is the front shock absorber assembly of a car?
The front shock absorber assembly is a complete component installed in the vehicle's front wheel suspension system, mainly used to absorb and buffer road impacts, and to enhance the smoothness and comfort of driving. It is not a single component but an integrated assembly system consisting of multiple functional components.
Main Components
The front shock absorber assembly typically includes the following core components:
Shock Absorber Body: The core component, filled with hydraulic oil, generates damping force through the reciprocating motion of the piston in the oil, converting vibration energy into heat energy and dissipating it, thereby rapidly reducing vibrations.
Spring: Supports the weight of the vehicle and absorbs part of the impact force through elastic deformation, working in conjunction with the shock absorber to achieve a buffering effect.
Dust Cover: Wraps around the shock absorber and spring, preventing dust, mud, and water from entering and protecting the internal components from wear and corrosion, extending the service life.
Lower Spring Pad, Upper Spring Pad, Shock Absorber Pad: Located between the spring and the metal components, they play a role in buffering, dampening, and reducing hard impacts, making the spring extension and retraction more stable.
Spring Mounting Plate: Provides stable support and positioning for the spring, ensuring it remains in the correct position during compression and rebound.
Bearings and Top Rubber: Bearings allow the shock absorber assembly to rotate flexibly during steering; the top rubber (also known as the top rubber pad) connects the vehicle body to the shock absorber, providing buffering, sealing, and dampening functions.
Nuts and Fixing Parts: Used to securely install the entire assembly on the frame and steering knuckle, ensuring structural stability and driving safety.
Functions and Effects
Enhance Comfort: Effectively suppresses the transmission of road bumps to the vehicle body, reducing the fatigue of passengers.
Ensure Stability: Prevents the wheels from bouncing on bumpy roads, ensuring that the tires always grip the ground, improving handling and braking safety.
Extend Lifespan: By buffering impacts, it protects the vehicle body structure, suspension system, and other related components, reducing the risk of damage.
Modern cars, especially family vehicles, generally adopt the front shock absorber assembly design, as it is convenient to install, stable in performance, and highly safe, gradually replacing the traditional "shock absorber + spring" separate structure.
The front shock absorber assembly is a key component of the suspension system, mainly functioning to absorb and mitigate road impacts, enhancing the smoothness, handling, and passenger comfort of driving.
Its core functions are reflected in the following aspects:
Suppress vibrations and impacts: When the vehicle travels on uneven roads, the tires and suspension will be impacted. The front shock absorber assembly uses an internal hydraulic or pneumatic damping system to convert the mechanical energy of the impact into heat energy and dissipate it, effectively reducing the rapid vibration of the vehicle body and wheels, preventing continuous bouncing.
Maintain grip of wheels: By quickly suppressing the rebound of the spring and road impacts, the wheels can always grip the ground, which is crucial for vehicle steering control, braking stability, and driving safety.
Improve comfort and stability: It significantly reduces the vibration transmitted to the vehicle body and passengers, providing a smoother and more comfortable riding experience, while enhancing the stability of the vehicle at high speeds or during turns.
As a suspension pillar: Unlike a separate shock absorber, the front shock absorber assembly (often called a "shock absorber pillar") also has the function of a suspension pillar in structure, being an important load-bearing component connecting the vehicle body and the wheels.
The front shock absorber assembly is usually an integrated module, mainly consisting of the shock absorber body, spiral spring, dust cover, shock absorber fixing parts (such as top rubber, bearings, spring mounting plate, etc.).
Faults in the front shock absorber assembly of a vehicle can significantly affect the vehicle's handling, comfort, and safety, and are usually manifested through various obvious symptoms.
Main Fault Symptoms Include: Abnormal noise during crossing the barrier: When the vehicle passes over the减速bump or potholed road surface, the front shock absorber will make a "clang", "squeak" or "click" sound. This may be caused by worn piston rods, blocked bottom valves, or aged and cracked top rubber sleeves.
Obvious body tremors after impact： After the front shock absorber fails， the body cannot quickly stabilize after the bump and will experience continuous up and down movement for more than 3 seconds. At a speed of 40-60 km/h， the steering wheel will shake regularly； at speeds above 80 km/h， the A-pillar and rearview mirror will have visible oscillations.
Abnormal tire wear： Failure of the front shock absorber can cause imbalance in the tire's grounding， resulting in unilateral wear (zigzag wear on the outer side of the tire)， cup-shaped wear (spherical depression in the center of the tire tread)， or feather-like wear (feather-like patterns on the tire edge)， reducing the tire's lifespan by more than 40%.
Extended braking distance： During emergency braking， the front shock absorber fails to effectively control the vehicle's front tilt， resulting in a reduction in vertical load on the front wheels and a decrease in braking friction coefficient. The measured braking distance at a speed of 100 km/h can increase by 4-6 meters.
Hydraulic oil leakage： Oil stains， oil droplets， or even "oil column"-like oil spraying on the front shock absorber body or dust cover are the most obvious fault signals. A slight decrease in leakage performance is about 15%， a moderate leakage reduces the damping force by 40%， and severe leakage requires immediate parking.
Abnormal steering： At low speeds， the in-place steering feels stuck and difficult； at high speeds， the steering response is delayed， the vehicle is unstable， and the steering wheel's return ability deteriorates.
Recommendation： When any of the above symptoms occur， it is recommended to have a professional repair point inspect it as soon as possible. Generally， a visual inspection is recommended every 20，000 kilometers and a performance test every 40，000 kilometers. If leakage or obvious abnormal noise is found， the front shock absorber assembly should be replaced immediately to ensure driving safety.
