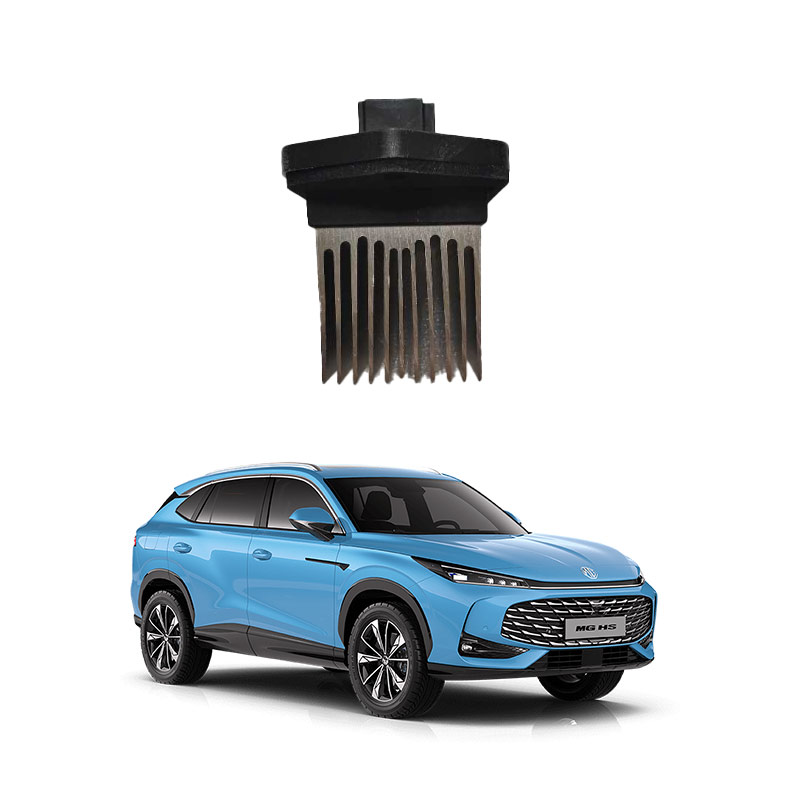

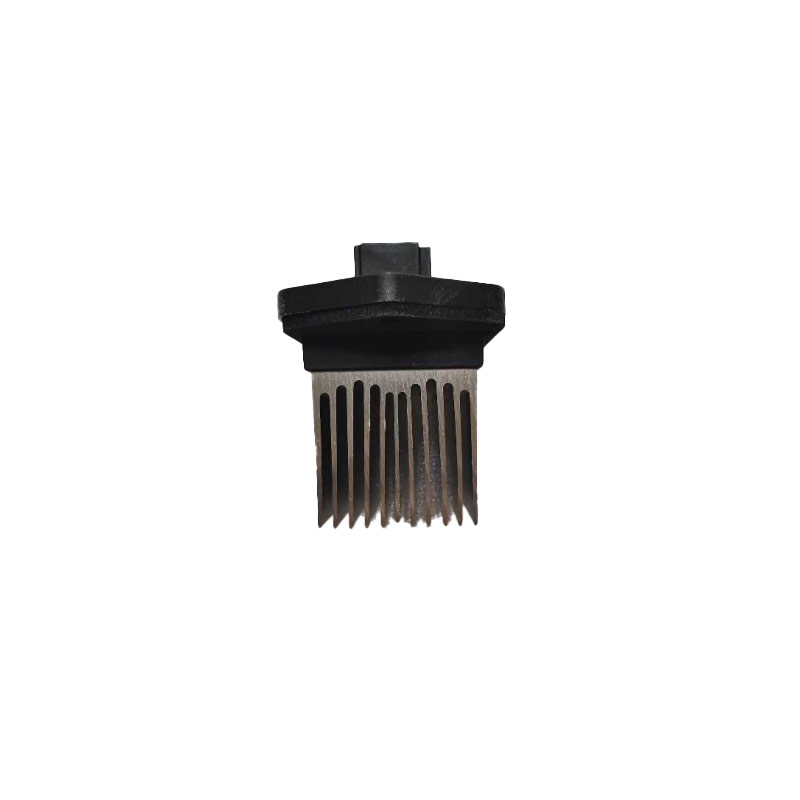

The working principle of the blower motor resistor
The blower motor resistor regulates the blower motor speed by changing the current size, thereby controlling the air conditioning wind speed. Essentially, it is a variable resistor that limits the current by increasing or decreasing the resistance value, achieving the switch from low speed to high speed. Here is a detailed explanation:
How does the resistor regulate the wind speed?
The core of the blower motor resistor is to impede the current flow. The smaller the current, the slower the blower motor rotates; the larger the current, the faster it rotates. Specifically, it is divided into three steps:
Low wind speed (such as 1st gear): The current passes through multiple series resistors (usually 3), the resistance value is the largest, the current is the smallest, and the blower motor rotates at a low speed.
Medium wind speed (such as 2nd to 3rd gear): The current passes through fewer resistors (2 or 1), the resistance value decreases, the current increases, and the blower motor speeds up.
High wind speed (such as 4th gear): The current bypasses the resistors and is directly supplied, the resistance value is close to zero, the current is the largest, and the blower motor rotates at full speed.
What are the differences between traditional and modern control methods?
Traditional resistor control: It relies on physical switches to switch resistor combinations. For example, the knob on the air conditioning panel directly selects the number of series resistors, which is simple but inefficient (part of the electrical energy is converted into heat and wasted).
Modern PWM control: It is commonly used in new cars to adjust with pulse signals (PWM). The air conditioning computer chip sends signals to control the on-off time of power switches (such as MOSFETs), indirectly changing the output voltage and speed, which is more precise and energy-saving.
What happens if the resistor breaks?
If the resistor burns out or has poor contact, the blower motor may only work at the highest gear (current straight through) or have no wind at all (fuse blown).
A burned blower motor resistor can be repaired, but it is usually recommended to replace it with a new one because it may burn out again or have safety hazards after repair. Here is a specific analysis and suggestion:
Repair method (only for emergency)
If the resistor is only partially burned (such as a solder joint coming loose), you can try to repair it:
Power off operation: First disconnect the negative terminal of the car battery to avoid short circuit risks.
Weld the loose solder joint: Use a soldering iron and solder to reconnect the copper sheet of the resistor, and press it tightly before it cools (otherwise the solder may fly off).
Test the effect: After reinstallation, start the air conditioning and check if the wind volume of gears 1 to 3 is restored.
Note: The repaired resistor may burn out again due to aging or heat dissipation problems, and improper operation may damage the circuit.
Why is it recommended to replace the new resistor?
Safe and reliable: The repaired resistor is prone to recurrence of faults, while replacing a new part can solve the problem thoroughly.
Simple operation: For most models, the resistor is located behind the passenger glove box, and it can be replaced by removing two screws (takes about 30 minutes).
Avoiding associated damage: The resistor burnout is often caused by excessive motor resistance. Not replacing the new resistor may damage the blower motor or fuse.
DIY or professional shop?
DIY conditions: You need to prepare an Allen wrench and a soldering iron (only for experienced users), and refer to the repair video of your model.
The blower motor resistor is a key component in the car air conditioning system that controls the blower motor speed. Its failure will affect the normal use of the air conditioning. The following content is based on common situations.
The main manifestations of blower motor resistor failure include:
Abnormal wind volume control: The typical symptom is no wind or weak wind in low-speed gears (such as 1st, 2nd, and 3rd gears), while the high-speed gear (4th gear) is normal. This is because the low-speed gears achieve speed regulation through resistor voltage division, and when the resistor is damaged, it cannot switch gears, resulting in inability to adjust the wind volume or the same wind volume in all gears.
Blower motor does not work or operates abnormally: It may be manifested as the motor not rotating, slow rotation, difficult start, or accompanied by abnormal sounds (such as humming or clicking), which is usually related to resistor burnout, bearing wear, or foreign objects stuck in the blades.
System-related problems: In extreme cases, resistor failure may cause circuit overload, leading to fuse blowout, ECU error, or engine check light on.
The main causes of failure include: Overheating damage: If the resistor works for a long time without proper heat dissipation, or if the fan bearing wears out or dust accumulates on the blades, increasing resistance and causing excessive current, the resistor may overheat and burn out.
Abnormal current: Fan motor failure (such as internal jamming or armature wear) can cause overcurrent, accelerating the aging of the resistor; incorrect fuse specifications or circuit short circuits can also cause abnormal surges.
Quality issues of the resistor itself: Insufficient power, poor material quality, or loose welding (such as loose solder joints) can reduce durability.
Environmental and maintenance factors: High humidity, excessive dust, or poor ventilation at the installation location can affect the resistor's lifespan; lack of regular maintenance (such as not cleaning the air intake) can increase the risk of failure.
Diagnosis and solutions are as follows:
Preliminary inspection: First, check the fuse (usually located in the fuse box under the driver's foot), then use a multimeter to measure the voltage at the fan plug. If it is 12V but the motor does not rotate, the motor may be damaged; if the resistance value measured by the resistor is zero or infinite, it needs to be replaced.
Simple treatment: Abnormal noise may be caused by foreign objects stuck in the blades. Remove the rear storage box on the passenger side (requiring three T20 screws), clean the debris, and lubricate the bearings. When the air volume is abnormal, focus on checking if the 1st, 2nd, and 3rd gears are faulty.
Replacement recommendation: After confirming the fault, replace the original resistor. This is relatively cost-effective, but the operation involves the circuit and requires caution. It is recommended to have it handled by a professional repair shop to avoid secondary damage.
Regular maintenance can reduce the occurrence of faults:
Regularly clean the dust from the fan's air intake and blades to prevent blockage.
Check if the installation location of the fan assembly has good ventilation to avoid poor heat dissipation.
Regularly lubricate the motor bearings and use original or matching specification fuses.
If abnormal air volume or noise is detected, repair it promptly to prevent small problems from worsening.
