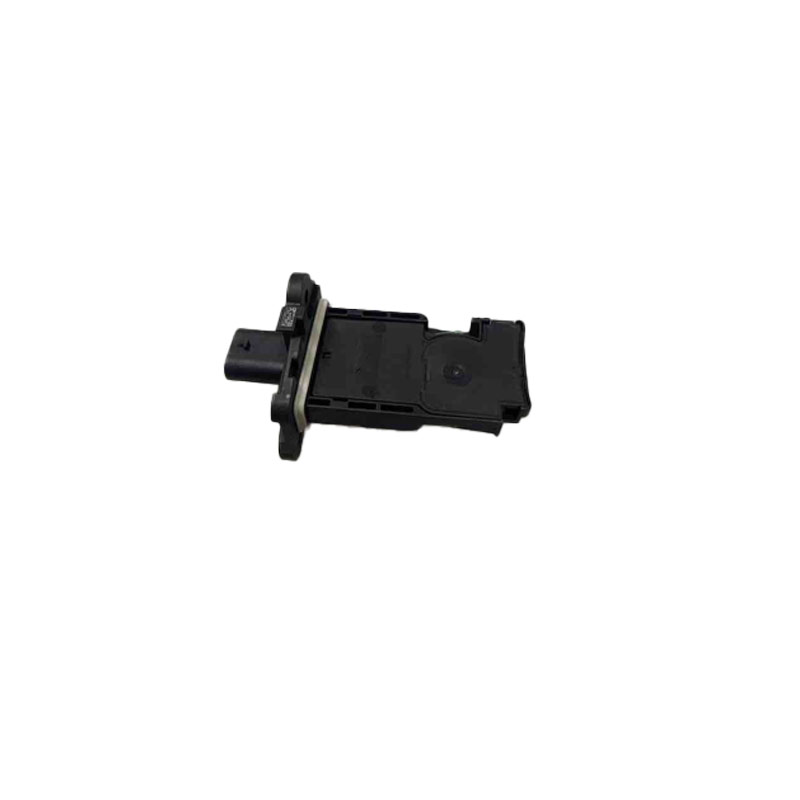

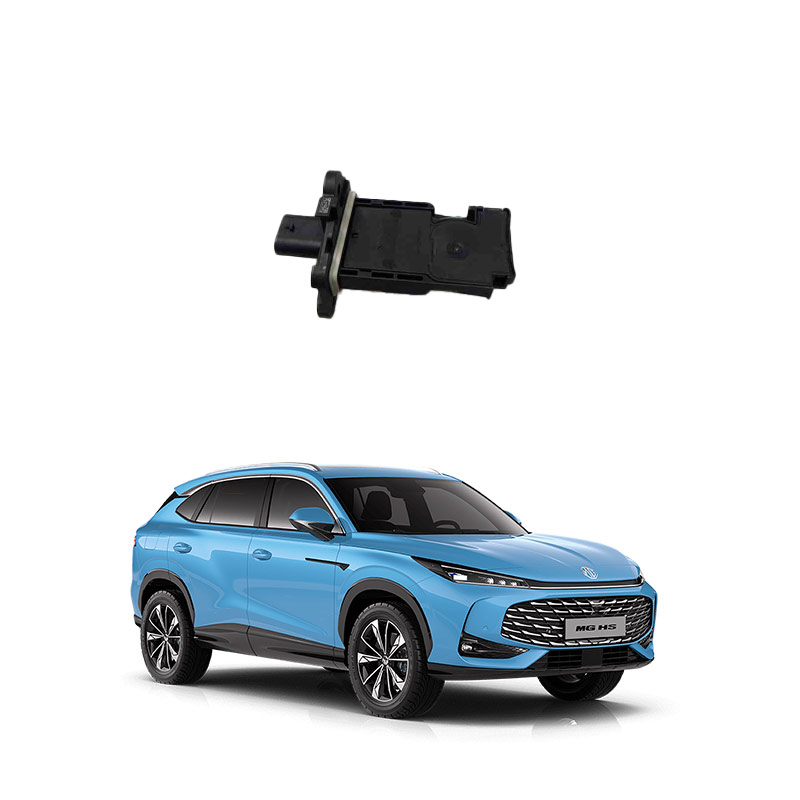

What is an automotive air flow meter?
The automotive air flow meter, also known as an air flow sensor or intake air flow sensor, is a key sensor in the intake system of an electronic fuel injection engine. Its core function is to measure the air flow entering the engine and convert it into an electrical signal that is transmitted to the engine control unit (ECU) to calculate the fuel injection volume.
Installation location and basic principle: The air flow meter is typically installed on the intake pipe between the air filter and the throttle body. By detecting the mass or volume of air flowing into the cylinders within a unit time, it provides the ECU with basic data for calculating the fuel injection volume, ensuring an accurate air-fuel ratio and optimizing engine performance.
Working mode and classification: The main types include blade type (where the wing plates rotate in response to the air flow to adjust the contact output signal, with a simple structure but slower response), and Karman vortex type (utilizing the principle that the alternating vortex frequency generated by fluid flowing over a cylindrical object is proportional to the flow rate, divided into optical and ultrasonic types, with high accuracy and no moving parts). Different designs aim to balance accuracy, response speed, and pressure loss.
Importance and impact of faults: The air flow meter is crucial for achieving closed-loop control, directly affecting the engine's power, fuel economy, and emission performance. If it fails (such as abnormal signals or complete failure), it may cause issues such as unstable idle, poor acceleration, increased fuel consumption, or excessive emissions.
The core function of the automotive air flow meter is to measure the air intake into the engine in real time and convert the data into an electrical signal to be transmitted to the vehicle's computer (ECU), for precise control of the fuel injection volume, ensuring the optimal fuel mixture ratio. The following is a detailed explanation of its specific functions and uses:
Core function of the air flow meter
Measurement of intake air volume: Installed on the intake pipe between the air filter and the throttle body, it directly detects the volume or mass of air entering the engine.
Signal conversion: Converts the air flow data into an electrical signal (such as a current change), transmitting it to the ECU as the core basis for fuel injection calculation.
Dynamic response: Responds quickly (≤10ms) to different operating conditions such as idle and acceleration, ensuring real-time data.
Main uses
Optimizing fuel efficiency:
The ECU calculates the fuel injection volume based on the air flow signal, avoiding overly rich (wasting fuel) or overly lean (insufficient power) fuel mixtures, improving fuel economy. For example: during high-speed driving, it precisely matches the air-fuel ratio to reduce fuel consumption.
Ensuring engine performance:
Maintains stable power output, preventing idle fluctuations, acceleration weakness, or black smoke emissions.
Faults (such as abnormal signals) will trigger a fault code (e.g., P0100) in the ECU, causing abnormal engine operation.
Supporting environmental emissions:
Precisely controls combustion to reduce harmful gas emissions (such as carbon monoxide).
Why it is indispensable
Ineffective alternatives: If the air flow meter is damaged, the ECU cannot obtain the intake air volume data and can only rely on backup programs (such as estimating based on intake pressure), but the accuracy drops by more than 30%, prone to triggering faults.
Collaboration with multiple sensors: Works in conjunction with water temperature sensors, oxygen sensors, etc., to comprehensively adjust the fuel injection strategy.
The air flow meter is a key sensor in the engine management system, responsible for measuring the air intake into the engine and converting the data into an electrical signal to be transmitted to the electronic control unit (ECU) for precise calculation of fuel injection timing and ignition timing.
When the air flow meter fails, it will cause air-fuel ratio imbalance, leading to a series of vehicle performance issues.
Common fault symptoms include:
Idle instability and poor acceleration: A deviation in the air flow meter signal causes the ECU to be unable to accurately adjust the fuel injection volume, resulting in engine shaking at idle, fluctuating speed, or intermittent stalling; during acceleration, the power output is sluggish, with slow response. Increased fuel consumption and abnormal exhaust emissions: Inconsistent fuel injection volume and actual intake volume may result in overly rich mixture and incomplete fuel combustion, manifesting as a significant increase in fuel consumption, black smoke from the exhaust pipe, and increased emission of harmful substances.
Engine fault light comes on: If the ECU detects abnormal signals (such as fault codes P0100-P0103), it will trigger the warning light, indicating a sensor failure.
Difficulty starting and problems with high-speed driving: Cold start or warm-up may cause difficulty in starting due to improper mixture ratio; for some models, inaccurate signal output at speeds over 120 km/h will exacerbate the situation, causing engine wobbling or stalling, which affects safety during high-speed driving.
Fault causes and potential impacts: Air flow meter failure is mostly caused by sensor element wear, circuit shorting, or intake leakage. Ignoring this issue for a long time can lead to carbon deposits in the combustion chamber, damage to the three-way catalytic converter, and other chain problems, intensifying engine wear and reducing overall reliability.
