Function of the car rear bumper bracket

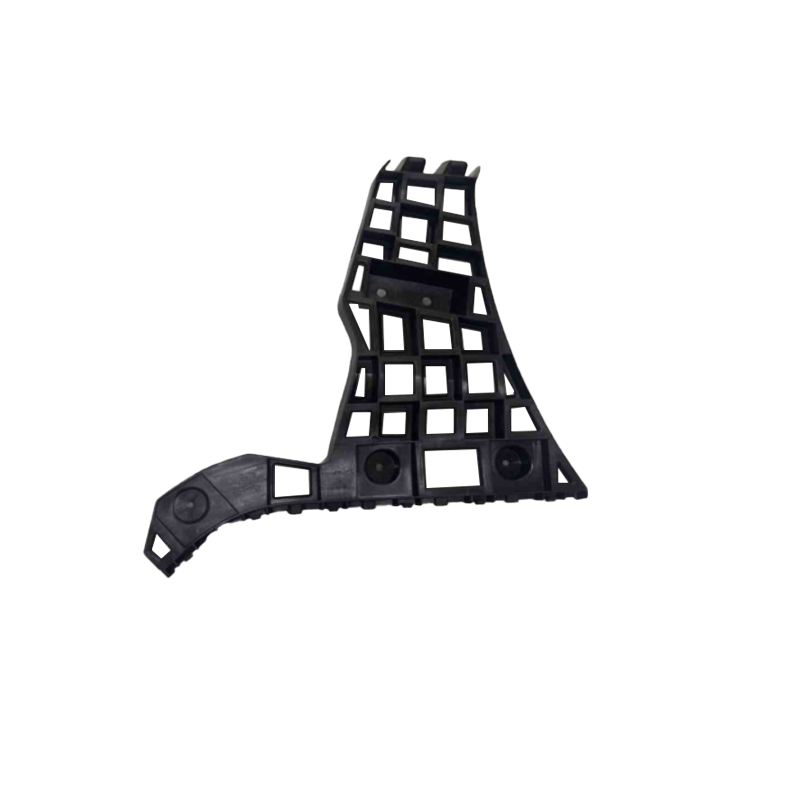

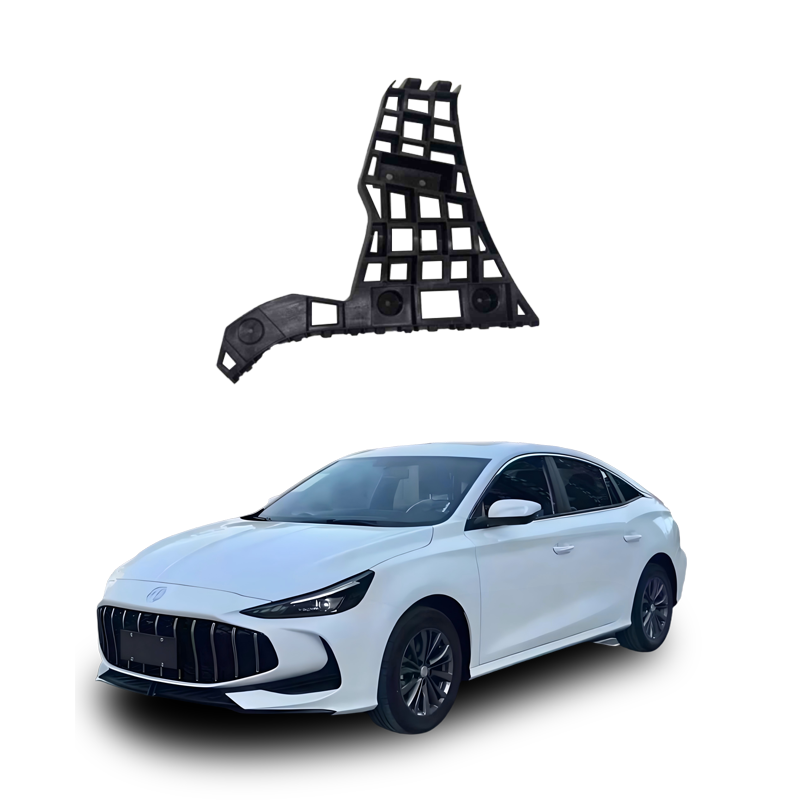

The rear bumper bracket, also known as the rear bumper support or rear bumper frame, is a key structural component that connects the vehicle's rear bumper to the body frame. Its core functions lie in supporting and fixing, as well as providing safety buffering.
Main functions
Support and fix the bumper: The rear bumper bracket provides a stable installation foundation for the rear bumper, ensuring that the bumper maintains its correct position and posture during vehicle movement, preventing it from loosening, making abnormal sounds, or falling off due to vibration or external forces, and maintaining the overall and harmonious appearance of the vehicle.
Absorb and disperse collision energy: In the event of a rear-end collision (such as reversing scrape or rear-end collision), the rear bumper bracket is the first line of energy absorption. It is typically made of high-strength steel, aluminum alloy, or engineering plastics, and through its structural deformation and material properties, effectively absorbs, disperses, and dissipates the impact force, thereby reducing the impact force transmitted to the body frame, fuel tank, exhaust system, and other critical components, protecting the vehicle structure and the safety of passengers.
Assist in assessing the severity of an accident: The damage degree of the rear bumper bracket is one of the important reference indicators for assessing the severity of an accident. Severe deformation or fracture of the bracket often indicates that the vehicle has suffered a strong impact force, suggesting potential damage to the vehicle structure.
Additional explanation
Material and design: Modern rear bumper brackets aim for a balance between lightweight and high strength. Some models adopt innovative structures such as splicing or snap-fit, to improve assembly efficiency and flexibility.
Difference from "vehicle rear frame": Please do not confuse "rear bumper bracket" with "vehicle rear frame" (such as luggage rack, bicycle rack). The rear bumper bracket is an internal component of the bumper, concerning safety, while the rear frame is an additional device installed on the roof or rear of the vehicle for carrying external items.
Common problems with rear bumper brackets usually manifest as loose rear bumper, abnormal sounds, or shaking. Although they do not directly affect the core functions of vehicle movement, long-term neglect may affect the stability of the vehicle structure, sealing performance, and even pose safety risks.
Main symptoms
Abnormal sounds: During driving (especially when passing over speed bumps, on bumpy roads, or reversing), the rear bumper area emits "clicking", "crawling", or "clanging" sounds, which is a typical manifestation of loose or broken brackets.
Shaking or loosening: By gently pushing the rear bumper, one can feel significant shaking, or observe uneven gaps between the bumper and the vehicle body, or the edges lifting.
Decreased sealing performance: Failure of the bracket may lead to an improper fit between the bumper and the vehicle body, allowing water to seep in during rainy days, causing dampness or rust in the trunk lining.
Accompanied by shaking: In extreme cases, if the bracket is severely damaged, it may affect the stability of the vehicle's rear end, causing a slight jolt during driving.
Common causes
Aging or fracture of snap-fit clips: The original plastic snap-fit clips are prone to cracking and breaking due to vibration and temperature differences over time, which is a common failure point.
Loose or fallen screws: The metal screws used to fix the bracket are loosened due to long-term vibration or the failure of the screw holes.
Improper installation: If the bumper is repaired or replaced but not installed according to the specifications, the components may not be fully inserted or not tightened.
External damage: In cases of minor collisions, scrapes, or washing with high-pressure water jets, the bracket may deform or dislocate. Solution
Self-check:
Gently press the edge of the bumper and listen for a "click" sound when it bounces back. Check if the latch is fully inserted into the slot.
Check if the bracket screws are loose, but do not forcefully tighten them as it may damage the screw holes.
Replace the parts:
If the latch or bracket is damaged, it is recommended to replace it with the upgraded version featuring original factory or high-strength engineering plastic + metal reinforcement. These parts offer much better durability than the original plastic ones.
For some models (such as Toyota Highlander, Geely Vision X6, Mazda 6), there are dedicated replacement kits available for self-installation.
Professional repair:
If you are unable to determine it yourself or if there is structural deformation involved, it is recommended to visit a professional repair shop for inspection to avoid causing more damage due to incorrect judgment. Cautionary Notice
Although the rear bumper bracket is a small component, it is crucial for driving safety and vehicle lifespan. It is recommended to inspect it every six months or after experiencing severe bumps. It is advisable to keep a set of universal snap-on kits in the vehicle to handle unexpected situations.
