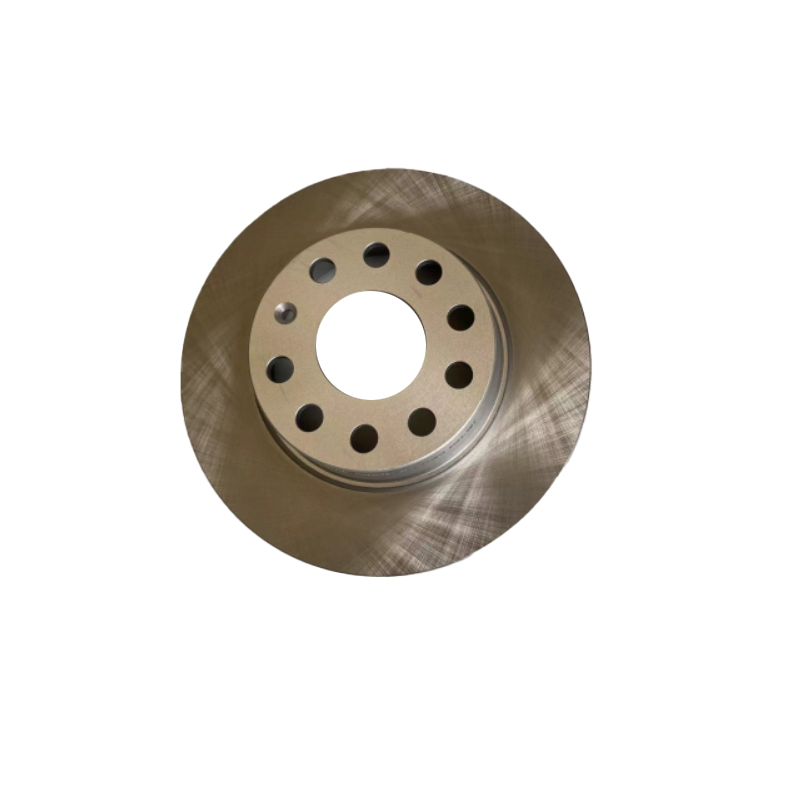

What is the rear brake disc of a car?
The rear brake disc is the core component of the disc brake system installed on the rear wheels of a car. It is a circular metal disc that rotates along with the wheels. When the driver steps on the brake pedal, the brake caliper will clamp the rear brake disc, generating braking force through friction, thereby slowing down or stopping the rear wheels and helping the vehicle to safely stop.The main function of the rear brake disc is to provide braking force to the rear wheels, working in coordination with the front brake disc to ensure the balance and stability of vehicle braking.
Key Features and Types
Structure: The rear brake disc is typically divided into two types: solid disc and ventilated disc (also known as air duct disc or perforated disc).
Solid Disc: Simple in structure and low in cost, with average heat dissipation performance. It is mostly used in vehicles with low braking performance requirements or for rear wheels.
Ventilated Disc: The disc body has ventilation channels or holes, significantly improving heat dissipation efficiency and reducing heat attenuation. It is commonly used in high-performance vehicles or those with higher braking requirements. Some models (such as SAIC Dazhong V80) also adopt perforated design to reduce weight, improve heat dissipation and friction effect.
Material: The mainstream materials are cast iron or alloy steel, with good wear resistance and thermal stability. High-end models may use carbon fiber ceramic materials, but they are extremely expensive and have weak braking force at low temperatures, so they are rarely used on rear wheels.
Functional Advantages:
Better heat dissipation than drum brakes, suitable for continuous braking.
More uniform braking force distribution, less prone to "brake bias".
Good drainage, less likely to cause a decrease in braking force due to water film in rainy or muddy conditions.
Maintenance Tips: The wear rate of the rear brake disc is usually slower than that of the front wheels, but regular checks on thickness and surface condition are still necessary. If there is softening of the brakes, abnormal sounds or an increase in braking distance, timely maintenance is required to avoid affecting driving safety.
In most family cars, solid discs on the rear wheels are sufficient for daily needs; while sporty cars or SUVs are more likely to be equipped with ventilated discs to handle more intense driving conditions.
The rear brake disc is a key component of the vehicle's braking system. Its main function is to convert the vehicle's kinetic energy into heat through friction with the brake pad, achieving deceleration or stopping. The specific functions can be summarized as follows:
- Implementing vehicle braking: During vehicle operation, the rear brake disc works with the brake pad to provide necessary braking force, helping the vehicle to perform forced deceleration or complete stop, especially in emergency braking.
- Assisting in balancing braking force: Although the front brake takes up most of the braking force (about 85%), the rear brake disc works in coordination with the front brake to ensure balanced braking force distribution, avoiding vehicle instability, skidding or "nodding" when braking.
- Supporting parking braking: In many models, the rear wheel braking system (especially drum or integrated disc structure) is mechanically linked with the handbrake (parking brake) to ensure stable parking on slopes or flat ground, preventing vehicle.
- Enhancing braking stability： Disc brakes (including rear-wheel disc brakes) have good heat dissipation， anti-heat attenuation and drainage properties， compared to drum brakes， maintaining more stable braking effects in continuous braking， slippery road conditions or adverse driving conditions.
The rear brake disc is usually a solid disc or ventilated disc. High-performance vehicles may use ventilated discs on both front and rear wheels to enhance heat dissipation， while ordinary family cars may use solid discs on the rear wheels to meet basic braking requirements. Regular checks on the wear and deformation of the rear brake disc are crucial for ensuring driving safety.
