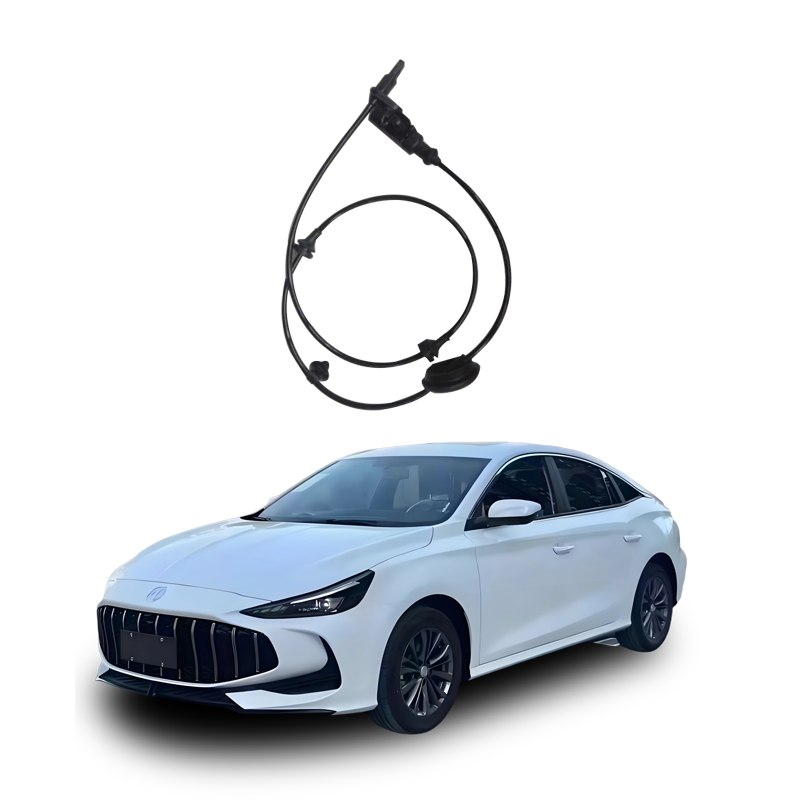

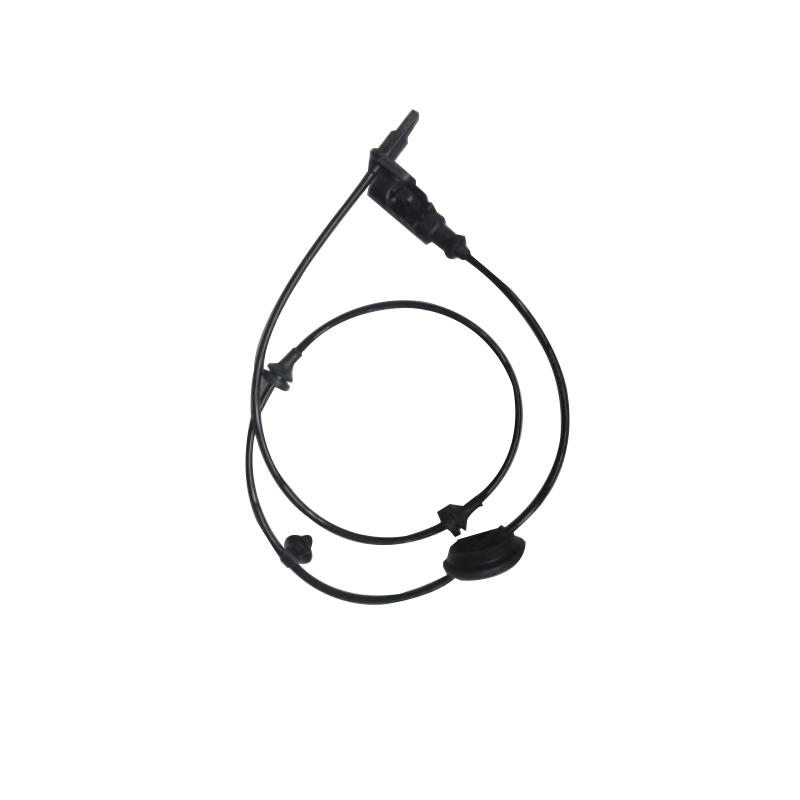

What is the rear ABS sensor of a car?
The rear ABS sensor, also known as the rear wheel anti-lock braking system sensor, is a key component of the vehicle's anti-lock braking system (ABS), specifically designed to monitor the rotational speed of the rear wheels.
Its core function is to transmit real-time information about the rear wheel speed to the ABS electronic control unit (ECU) of the vehicle. When the vehicle is on a slippery surface or during emergency braking, if the rear wheels are about to lock (with a sharp decrease in rotational speed), the ABS system will, based on the data provided by this sensor, quickly adjust the braking force of the rear wheels to prevent them from completely locking, thus ensuring that the vehicle maintains direction stability and handling during braking and avoiding skidding or fishtailing.
Main features and working principle
Installation location: Usually located near the rear wheel hub, close to the brake disc or the inner ring of the rear axle bearing seat, with a very small gap (about 0.3-1.0mm) between the sensing end and a gear ring (or magnetic coding ring) that rotates synchronously with the rear wheel.
Working principle: Through electromagnetic induction or Hall effect, the sensor detects the passing frequency of the teeth and gaps on the gear ring, generating an alternating current signal proportional to the rotational speed of the rear wheel (magnetic-electric output sine wave, Hall output square wave), which is transmitted via the wiring harness to the ABS control unit.
System interconnection: The data from the rear ABS sensor is not only used by the ABS system but also often shared with other active safety systems such as ESP (vehicle stability system) and TCS (traction control system), serving as an important input source for the vehicle's dynamic control.
Fault impact and maintenance
Common fault manifestations: When the rear ABS sensor fails or the signal is abnormal, the ABS/ESP fault light on the dashboard will remain on or flash, potentially causing the rear wheels to lock during emergency braking, prolonging the braking distance, especially on slippery roads with a high risk.
Maintenance suggestions: Regularly check if the sensor is dirty, damaged, or if the wiring harness is worn; avoid damaging the wiring when replacing tires; if the sensor is integrated in the hub bearing (such as in some Audi and BMW models), damage requires replacing the entire hub bearing assembly.
The rear ABS sensor (i.e., the rear wheel speed sensor) is a key component of the vehicle's anti-lock braking system (ABS), with its core function being to monitor the rotational speed of the rear wheels in real time and transmit the data to the vehicle's electronic control unit (ECU) to ensure stability and safety during braking.
The specific functions can be summarized as follows:
Core function: Prevent rear wheel locking, ensuring braking stability
Real-time monitoring of speed: The sensor, through synchronous rotation with the gear ring installed on the rear wheel hub, generates a signal proportional to the wheel speed (such as a sine wave or pulse signal), continuously providing feedback on the wheel's rotation status.
Preventing locking: During emergency braking, if the rotational speed of the rear wheels drops sharply (indicating a locking trend), the sensor will immediately send the signal to the ABS control module. The module then instructs the electromagnetic valve to reduce the braking force of that wheel. This prevents the wheels from locking completely, allowing the tires to maintain an "rolling-sliding" ideal state (slip ratio approximately 20%), thereby:
Shortening braking distance: Utilizing static friction rather than sliding friction, improving braking efficiency.
Preventing skidding and rollover: Especially on slippery roads or during emergency avoidance, avoiding the rear part of the vehicle losing control, skidding, or rotating.
Maintaining steering control: Ensuring the driver can effectively control the direction during braking, enhancing emergency avoidance capabilities.
Auxiliary function: Supporting other vehicle safety systems
The data from the rear ABS sensor is not only used by ABS but also shared by multiple electronic systems, achieving multi-functional integration:
Speed detection: The speed indicator signal of most vehicles directly originates from the rear wheel speed sensor, providing accurate speed information to the dashboard. Indirect Tire Pressure Monitoring (TPMS): By comparing the speed differences of the four wheels, if the speed of the rear wheels is abnormal (such as low tire pressure causing a smaller rolling radius), the system can indirectly determine the abnormal tire pressure and trigger an alarm.
Body Stability Control (ESC/ESP): Provides rear wheel speed data for the electronic stability program, assisting in determining whether the vehicle has skidded or has insufficient or excessive steering, thereby actively intervening in braking and power output.
Traction Control (TCS): Monitors whether the rear wheels are slipping during acceleration, automatically adjusting the power output to prevent the driving wheels from spinning.
Additional functions for specific vehicle models: In models such as Volkswagen and Audi, sensors can also detect changes in the vibration frequency of the rear wheels to monitor whether the tire screws are loose, and trigger corresponding warnings.
Impact of faults
If the rear ABS sensor is damaged or the signal is abnormal, it will result in:
The ABS fault light, ESC/ESP light or tire pressure light will illuminate.
ABS system failure: During emergency braking, the rear wheels may lock up, increasing the risk of skidding.
Other systems downgrade: The vehicle speed display may be inaccurate, tire pressure monitoring may fail, and the body stability function may be limited.
In summary, although the rear ABS sensor is small in size, it is the core "sensing organ" that ensures the braking safety, stability and intelligent functions of the vehicle.
