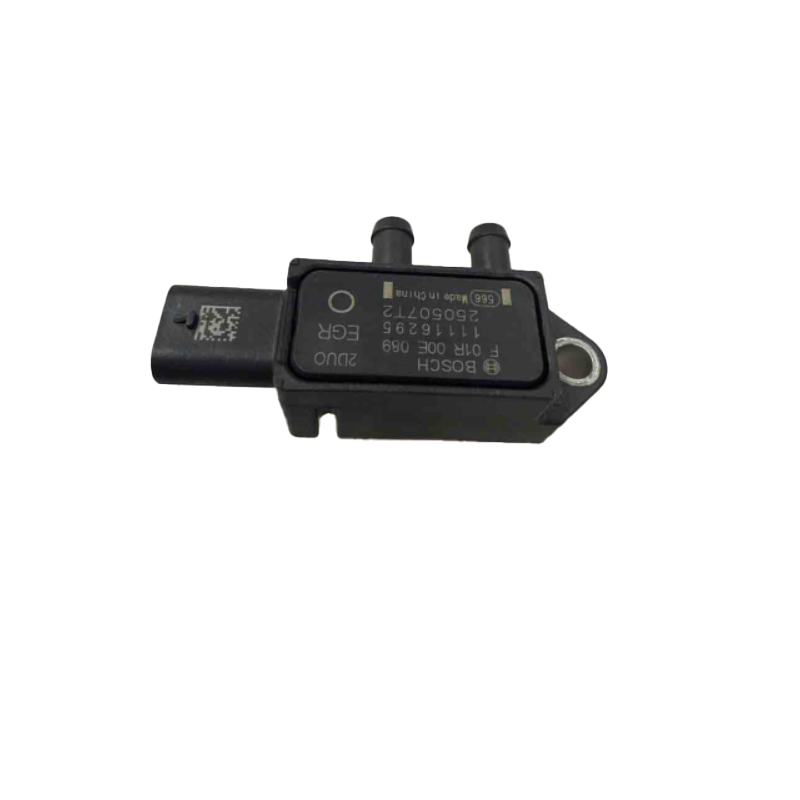

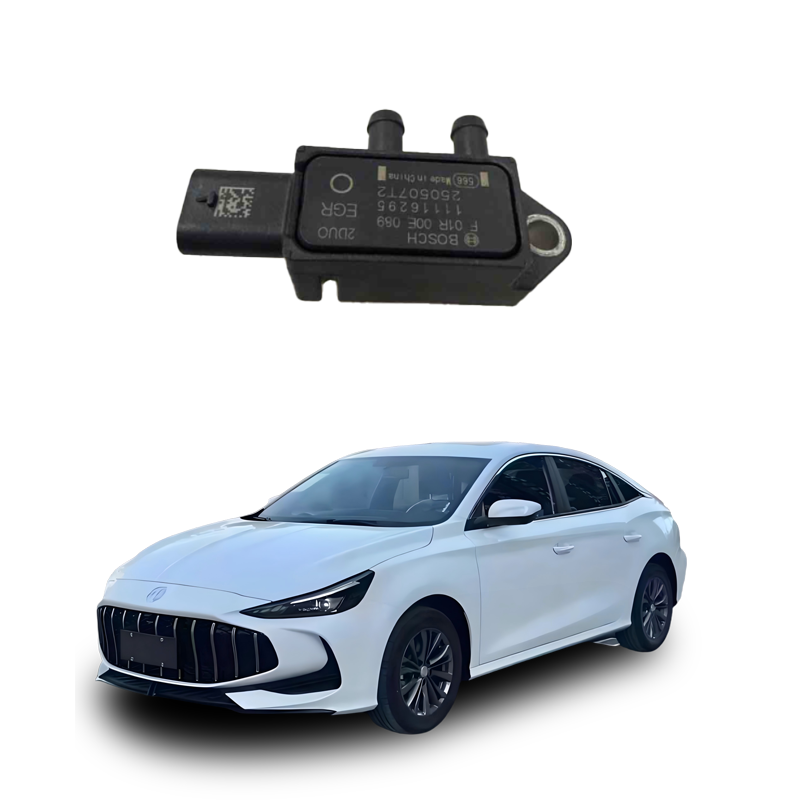

What is the vehicle differential pressure sensor?
The differential pressure sensor is a precise electronic component used to measure the pressure difference between two different positions. It is one of the crucial sensing components in modern automobiles. It does not measure absolute pressure but focuses on detecting the pressure difference (ΔP = P1 - P2) between two points such as "the intake port and the exhaust port" or "upstream and downstream", and converts this pressure difference into an electrical signal, which is then transmitted to the engine control unit (ECU) or other on-board control systems to achieve precise operation regulation.
Core Function and Application Scenarios
The differential pressure sensor plays the role of a "pressure nerve" in multiple key systems of automobiles. Its main applications include:
Exhaust emission management (DPF regeneration control): This is one of its core purposes. The sensor is installed at the front and rear ends of the particulate filter (DPF), monitoring the exhaust back pressure difference. When carbon deposits cause the pressure difference to exceed the threshold, the ECU will trigger the "regeneration program", increasing the exhaust temperature to burn off the carbon deposits to avoid clogging, power loss, and emission超标.
Optimization of engine intake and air-fuel ratio： In some systems， it is used to measure the pressure difference between the intake manifold behind the throttle and the atmosphere or specific pipelines. Combined with other sensor data， it indirectly calculates the intake volume， helping the ECU precisely control the fuel injection volume and ignition timing， improving combustion efficiency.
Monitoring of the fuel system： In high-pressure common rail diesel engines or gasoline direct injection systems， it monitors the pressure difference at different positions of the fuel pipeline， providing millisecond-level feedback to the ECU， achieving precise control of fuel injection volume (with an error within ±0.02ml)， balancing power and fuel economy.
Exhaust gas recirculation (EGR) system： Installed at the ends of the EGR valve or EGR cooler， it measures the pressure difference to determine the actual opening of the EGR valve， whether the pipeline is clogged or leaking， ensuring accurate EGR gas recirculation volume and effectively reducing nitrogen oxide emissions.
Fuel evaporation emission control system (EVAP)： Used to diagnose whether there is leakage or blockage in the fuel system pipelines. The system creates a small pressure difference， and the sensor detects the change. If it does not meet expectations， the system is judged to have a fault and the fault light is illuminated.
Air suspension system： In high-end models， it monitors the pressure difference between the two sides of the air spring， cooperating with the on-board computer to adjust the damping every few seconds， significantly improving the vehicle's ride stability on bumpy roads.
Brief Description of Working Principle
The core of the differential pressure sensor is a sensitive diaphragm that divides the sensor into a high-pressure end (H) and a low-pressure end (L). When the measured pressure P1 and P2 are applied to both ends， the diaphragm undergoes a slight deformation due to the pressure difference. This deformation is detected and converted by the internal conversion mechanism (such as resistance changes in strain gauges， changes in capacitance value， or piezoelectric effect) into an electrical signal， which is amplified and compensated by the circuit， and then output as a standard voltage， current， or digital signal for the ECU to use.
Impact of Faults
If the differential pressure sensor is damaged or the signal is inaccurate， the ECU will receive incorrect pressure difference data， which may lead to：
The engine fault light illuminates
The engine torque is limited， power decreases
The calculation of fuel injection volume is incorrect， resulting in increased fuel consumption， power deficiency， or emission超标
The DPF regeneration program is abnormal， potentially causing severe clogging
The EGR system operates abnormally， affecting emission and combustion stability
In conclusion， although the differential pressure sensor is small in size， it is a key component that ensures the performance， efficiency， compliance with emission standards， and safety of automobiles.
