What is an automotive chopper?

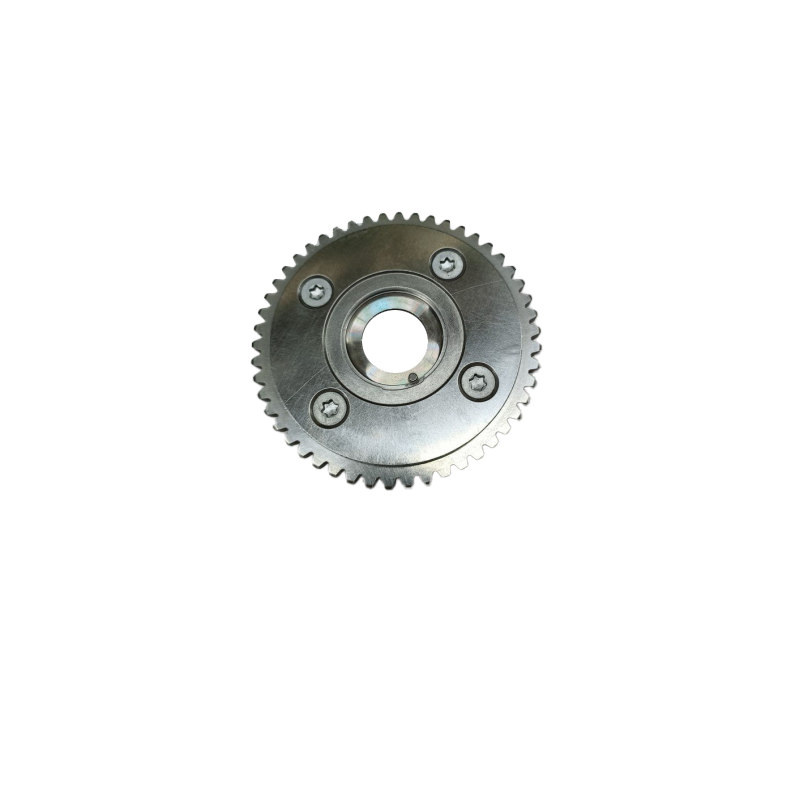

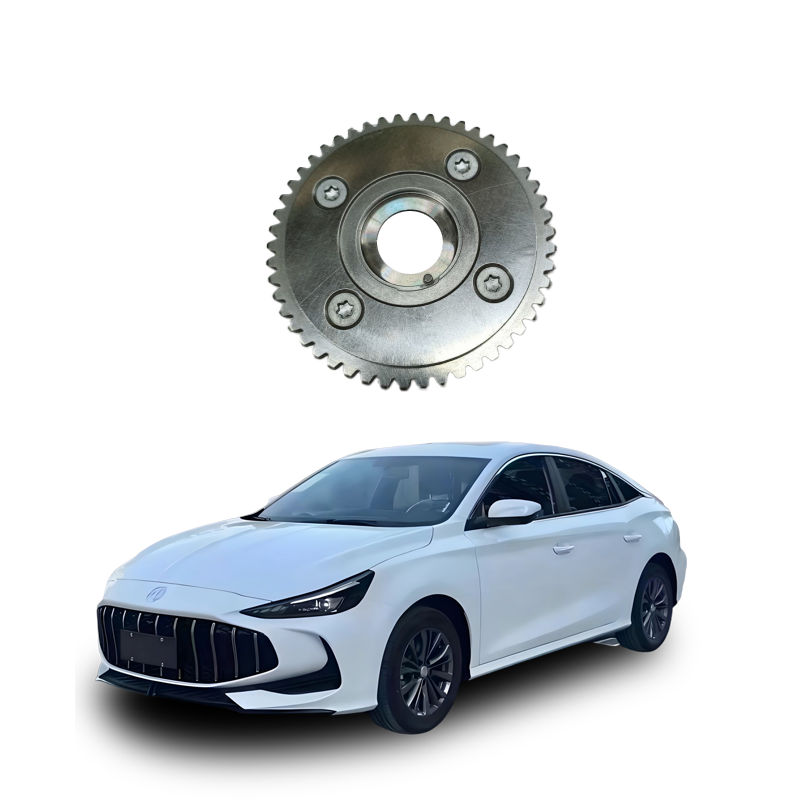

The automotive phase shifter, usually referring to the actuator in the variable valve timing system (VVT), is also known as the camshaft phase regulator or timing regulator. It is not an independent "phase shifter" device but a core component of the engine valve timing system, responsible for dynamically adjusting the opening and closing times of intake or exhaust valves based on engine speed, load, and other operating conditions, in order to optimize power output, fuel economy, and emission performance.
Its core function is to change the relative phase angle between the camshaft and the crankshaft, thereby achieving continuous variable valve timing. Traditional fixed valve timing cannot adapt to all operating conditions, while the phase shifter can achieve "intelligent adjustment":
At low speeds and low loads: Advance the opening of the intake valve to increase intake volume, enhance torque and smoothness.
At high speeds and high loads: Delay the closing of the intake valve, taking advantage of the intake inertia effect to improve charging efficiency and enhance power output.
The types and working principles of the phase shifter
Hydraulic phase shifter (mainstream)
Driven by engine oil pressure through internal blade-type or block-shaped rotors, changing the relative position between the camshaft and the chain wheel. The oil control valve (OCV) regulates the oil circuit according to the ECU command to achieve timing advance or delay.
Structure: Includes stator, rotor, hydraulic chamber, lock pin, and return spring, etc.
Limitations: The adjustment speed and accuracy are affected by engine oil pressure and temperature, and usually can only be adjusted from the "initial phase" in one direction.
Electric phase shifter (emerging technology)
Driven directly by a motor, coordinating the rotational speed difference between the camshaft, chain wheel, and motor through a three-axis mechanical structure to achieve more precise and faster phase adjustment.
Advantages: Faster response, higher control accuracy, not affected by engine oil conditions, and stronger adaptability.
Disadvantages: More expensive than hydraulic type, currently mostly used in high-end vehicles.
Common misunderstandings clarified
Phase shifter ≠ phase sensor: The phase sensor (such as the camshaft position sensor) is the "eye" that detects valve positions, while the phase shifter is the "hand" that executes the adjustment.
Phase shifter ≠ frequency converter or signal modulator: Some non-automotive materials mention "phase shifter" which refers to electronic signal phase adjustment, unrelated to the mechanical structure of the engine. Summary
The automotive chopper is one of the key technologies for modern engines to achieve high efficiency, environmental protection, and high performance. It dynamically optimizes the timing of valve opening and closing, allowing the engine to "breathe" more smoothly under different working conditions. Currently, the mainstream type is hydraulic, while the electric type is gradually becoming the future trend.
The term "chopper" in the automotive field might be a misnomer. What we usually discuss is the generator regulator (also known as the voltage regulator), which is the core component of the vehicle's charging system and is responsible for stabilizing the voltage output of the generator. If it fails, it will directly affect the vehicle's power supply and operation.
Here are the common manifestations, causes, and solutions for faults in the automotive generator regulator:
Main Fault Phenomena:
- Abnormal battery indicator light: The battery (charging) indicator light on the dashboard is constantly on or flashing, which is the most direct warning signal, indicating that the charging system is not working properly.
- Abnormal battery voltage:
- Low voltage (below 12V): Causes insufficient battery charging, resulting in difficulties starting the vehicle, dim headlights, abnormal operation of electronic devices, and even sudden engine shutdown during driving.
- High voltage (above 14.5V): Causes overcharging of the battery, accelerating the consumption of the electrolyte inside the battery, bulging, damage, and in severe cases, may trigger a risk of battery explosion.
- Decreased vehicle performance: Due to unstable power supply, it may cause abnormal operation of the engine control unit (ECU), resulting in engine shaking, insufficient acceleration, unstable speed, and even sudden engine shutdown.
- Electrical equipment failure: Vehicle lights, audio systems, windows, etc., may experience intermittent operation, abnormal brightness, or direct damage due to unstable voltage.
Common Fault Causes:
- Internal electronic components failure: Field-effect transistors (FETs) or Darlington transistors inside the regulator may break down or open due to overvoltage, overheating, or aging, which is the main reason for voltage instability (either too high or too low).
- Environmental factors: High temperatures in the engine compartment, humidity, and long-term driving on bumpy roads accelerate the aging of the regulator.
- Voltage fluctuations in the generator: When the generator output voltage is unstable or the load fluctuates sharply, it increases the burden on the regulator, causing it to work frequently and potentially damaging it.
- Wiring problems: Loose, corroded connector plugs, or broken and short-circuited connection lines may also prevent the regulator from working properly.
Diagnosis and Solution Methods:
- Initial judgment: First, observe the status of the charging indicator light on the dashboard and measure the voltage between the battery terminals with a multimeter (while the engine is running). The normal voltage should be between 13.8V and 14.5V. If the voltage is too low or too high, it can generally be determined that the regulator or the generator is faulty.
- Professional diagnosis: It is recommended to visit a professional automotive repair shop. Technicians will use specialized diagnostic equipment to read fault codes and conduct a comprehensive inspection of the generator, regulator, and entire charging circuit to accurately locate the fault point.
- Repair plan:
- Replace the regulator: For electronic regulators, if the damage is confirmed, replacing it directly is the fastest and most reliable solution.
- Check the wiring: Before replacing the regulator, make sure the connection lines and plugs are in good condition to avoid the new component being damaged due to wiring issues.
- Check the generator: Sometimes, faults in the generator itself (such as brushes, rectifiers) can also manifest as regulator problems, so they should be checked together.
Please note: The "electronic chopper" mentioned on the internet is usually used in electric model cars or drones and is a completely different component from the automotive generator regulator. There is also a "regulator" in the vehicle's air conditioning system, but its function is to control the opening and closing of the air vents, and it is unrelated to the charging system. To ensure driving safety, if any of the above symptoms occur, please have a professional inspection carried out immediately. Do not drive with a faulty vehicle.
