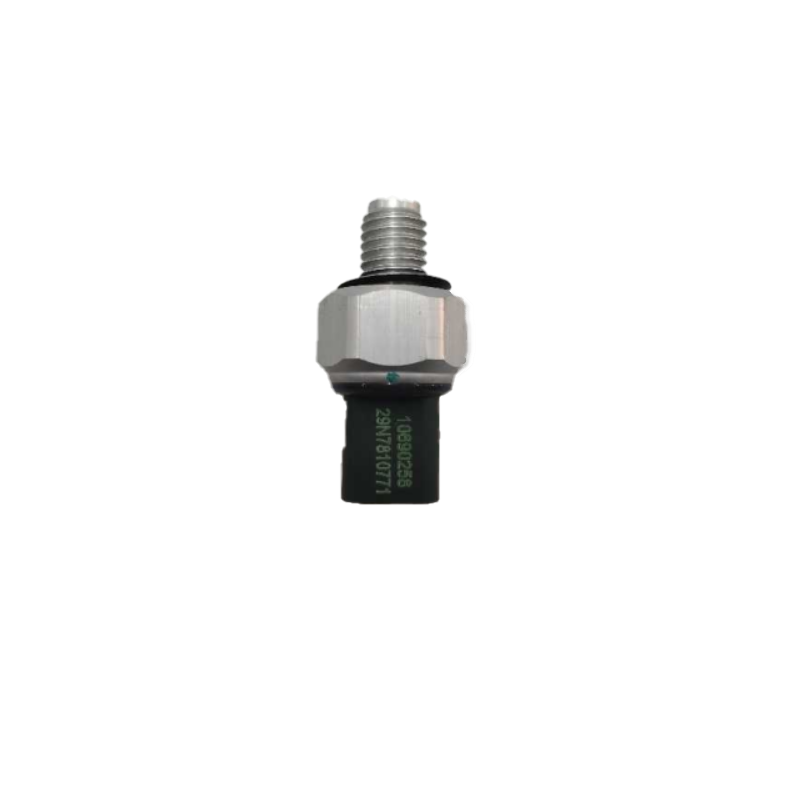

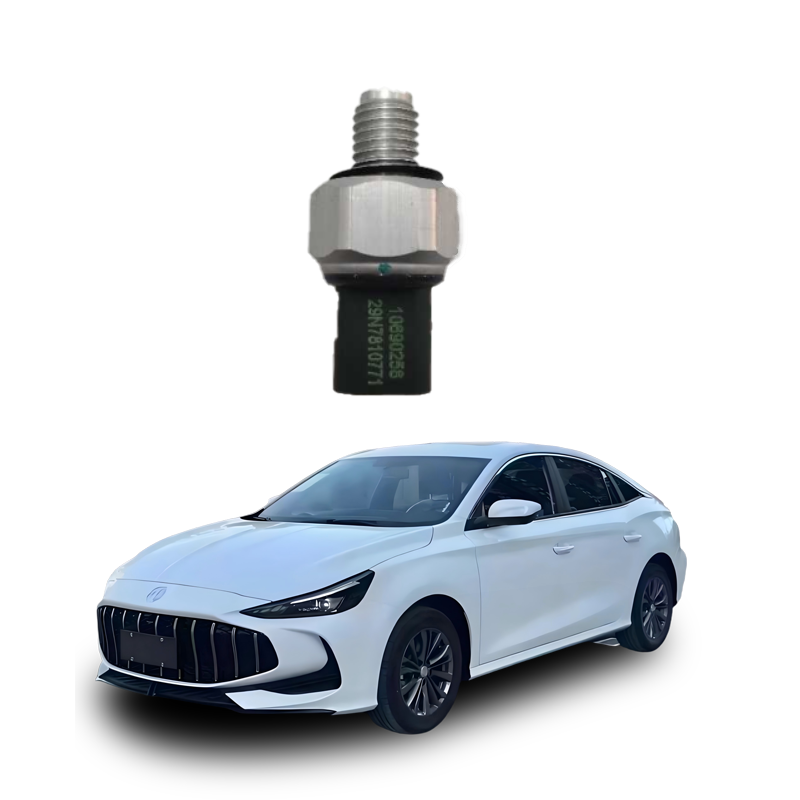

What happens when the oil sensor plug is damaged?
When the oil sensor (oil pressure sensor) is damaged, the vehicle will exhibit phenomena such as instrument alarm, abnormal engine operation, and possibly oil leakage or specific fault codes.
Instrument alarm and display abnormalities
The oil alarm light remains on continuously: This is the most direct and common reaction, indicating that the system detects abnormal oil pressure.
Engine fault light turns on: The vehicle computer (ECU) may trigger an engine fault warning due to receiving an abnormal signal.
Incorrect oil pressure display: The oil pressure indication on the dashboard may show a fixed value (such as always displaying 0.99) or a significant deviation from the actual pressure.
Abnormal engine operation
Power loss and performance limitation: Due to the triggering of the lubrication protection mechanism, the engine power and speed will decrease, making acceleration weak, feeling "lacking energy", and even having speed limitations.
Idle instability or abnormal engine shutdown: There may be idle jitter, fluctuating speeds, or in severe cases, the engine may automatically shut down for self-protection.
Strange noises and vibrations: Due to insufficient lubrication, the internal friction of the engine increases, resulting in metal friction and abnormal vibrations.
Fuel consumption may increase: Long-term poor lubrication leads to increased engine wear, potentially causing an increase in fuel consumption.
Other related signs
Possible oil leakage: If the sensor seal is damaged (such as a broken internal gasket), there may be oil leakage at the installation site.
Read specific fault codes: By connecting the vehicle computer with a diagnostic tool, fault codes such as "P01CA" (high voltage of the oil pressure sensor) can often be read directly pointing to this fault.
The oil pressure sensor is installed on the main oil passage of the engine. When the engine is running, the pressure measurement device detects the oil pressure and converts the pressure signal into an electrical signal sent to the signal processing circuit. After voltage amplification and current amplification, the amplified pressure signal is connected through the signal line to the oil pressure indicator, changing the current ratio through the two coils inside the oil pressure indicator to indicate the engine's oil pressure. The amplified pressure signal is also compared with the alarm voltage set in the alarm circuit. When it is below the alarm voltage, the alarm circuit outputs an alarm signal and lights up the alarm light through the alarm wire.
The wiring method of the electronic oil pressure sensor is exactly the same as that of the traditional mechanical sensor, capable of replacing the mechanical pressure sensor and directly connecting to the vehicle's oil pressure indicator and low-pressure alarm light to indicate the oil pressure of the diesel engine and provide a low-pressure alarm signal. Compared with the traditional piezoresistive oil pressure sensor, the electronic automotive oil pressure sensor has the advantages of no mechanical moving parts (i.e., no contacts), high precision, high reliability, and long lifespan, and is in line with the requirements of automotive electronic development.
Due to the harsh working environment of automobiles, sensors are required to be very strict. In the design of electronic automotive oil pressure sensors, not only high-temperature-resistant, corrosion-resistant, and high-precision pressure measurement devices need to be selected, but also reliable components with a wide working temperature range need to be selected. Moreover, anti-interference measures need to be taken in the circuit to improve the reliability of the sensor.
