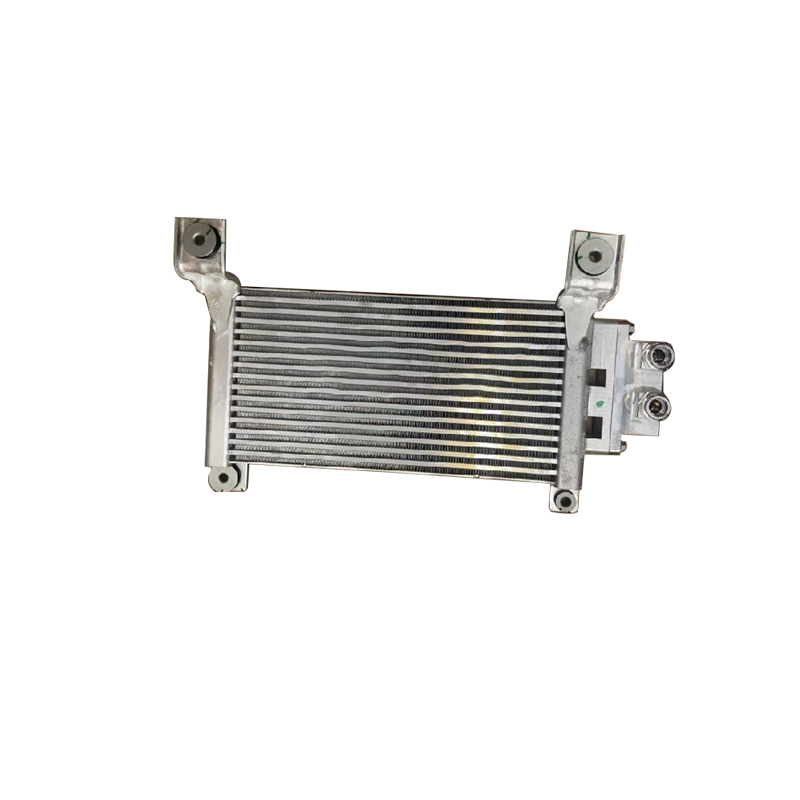

The function of the car oil cooler
The automotive oil cooler is a crucial component that ensures the stable operation of the engine and transmission system. Its core function is to reduce the temperature of the engine oil through heat exchange, ensuring that the lubrication system and related precision components operate within a safe temperature range. The specific functions can be summarized as follows:
Precise cooling to prevent thermal degradation: Even in water-cooled engines, high-temperature areas such as pistons, connecting rods, and turbochargers still rely on the engine oil for heat dissipation. The oil cooler can quickly remove the heat generated by friction, preventing metal components from deforming, wearing, or losing lubrication due to overheating, especially under intense driving or long-term high-load conditions.
Optimize heat exchange efficiency to maintain the optimal oil temperature range: Using materials with high thermal conductivity such as aluminum and copper, the oil cooler stabilizes the oil temperature by water cooling (using engine coolant) or air cooling (using the airflow from driving), controlling the oil temperature within the optimal range of 80–120°C. Compared to systems without an oil cooler, it can reduce the core component temperature by approximately 15°C.
Ensure the lubrication system and extend component lifespan: High temperatures accelerate the oxidation and deterioration of the oil, reducing its lubrication performance. The oil cooler can effectively delay this process, extending the oil change interval; at the same time, it ensures that high-precision components such as turbochargers and automatic transmission valve bodies receive stable hydraulic transmission and lubrication, reducing the risk of 15% of oil overheating failure.
Suitable for different driving scenarios: Water-cooled oil coolers are suitable for urban congestion conditions, with stable heat dissipation; air-cooled ones are more suitable for high-speed cruising, using natural airflow for efficient cooling and improving the overall system energy efficiency.
For vehicles equipped with turbocharged engines or automatic transmissions, a high-performance oil cooler can significantly enhance mechanical durability and driving safety.
The failure of an automotive oil cooler (i.e., the oil cooler) will directly affect the lubrication and cooling systems of the engine, leading to performance degradation or even serious damage. The following is a summary of its common failure manifestations, causes, and impacts:
Main fault manifestations:
Oil and coolant mixture: Oil film or milky white foam appears in the water tank or expansion tank, or the antifreeze level drops abnormally. This is a typical sign indicating that the internal pipeline of the oil cooler has ruptured and oil has seeped into the cooling system.
High oil temperature: The engine's high temperature warning light comes on, or the oil temperature is continuously higher than the normal range (usually above 105°C) as read by the diagnostic instrument, indicating a decline in the cooling system's heat dissipation efficiency.
Abnormal oil pressure: Low oil pressure may be caused by blockage or leakage inside the cooling system, resulting in insufficient oil pressure in the oil circuit.
External leakage: Oil seepage traces can be found at the oil cooler body or connecting pipelines, usually caused by aging gaskets, cracked end caps, or welding defects.
Reduced cooling effect: The cooling fan does not rotate, the cooling fins are clogged with dust or foreign substances, resulting in poor air circulation and affecting the efficiency of the air-cooled oil cooler.
Engine overheating: Due to the inability of the oil to effectively dissipate heat, the overall engine temperature rises, potentially causing detonation, power loss, and other issues.
Common fault causes:
Winter freeze cracking: In cold regions, if the cooling water is not drained completely, the copper tubes or shells expand due to freezing and rupture, which is the most common damage cause for water-cooled oil coolers.
Manufacturing or assembly defects: Micro cracks in the cooling tubes, poor welding, or improper installation of gaskets, which gradually develop into leaks over time.
Scale and blockage: Over time, water垢， oil sludge， or impurities accumulate on the inner walls of the cooling tubes， increasing resistance and reducing heat exchange efficiency.
Sealing ring aging： The sealing ring between the end cap and the shell fails due to high temperatures and aging， causing oil or coolant to leak out.
Water block corrosion： The water block (plug) in the engine cylinder block is corroded through by water垢， causing cooling water to flow back into the oil passage and contaminating the oil.
Abnormal system pressure： Faulty overflow valves or excessively high oil pressure may cause the oil cooler to bear excessive pressure and be damaged.
Potential consequences：
If not promptly addressed， oil cooler failures will trigger a chain reaction：
Oil lubrication performance deteriorates， exacerbating the wear of internal engine parts (such as the crankshaft， valve mechanism)；
The cooling system's efficiency decreases， leading to engine overheating， cylinder pulling， and even vehicle报废；
The mixed oil and water will damage the transmission oil (for automatic transmission vehicles)， affecting the smoothness of gear shifting.
Recommendations and prevention：
Regular inspection： Pay attention to whether the oil color is emulsified， whether the coolant is abnormal， and whether there is a high-temperature warning light on the dashboard.
Winter maintenance： Before long-term parking or entering a low-temperature environment， be sure to drain the water from the cooling system， especially for diesel vehicles and commercial vehicles.
Professional repair： If abnormalities are detected， it is recommended to promptly visit a professional repair center for pressure testing and endoscopy inspection to avoid secondary damage from disassembling.
For further diagnosis， it is recommended to consult the vehicle maintenance manual or use an OBD diagnostic instrument to read the oil temperature sensor data.
