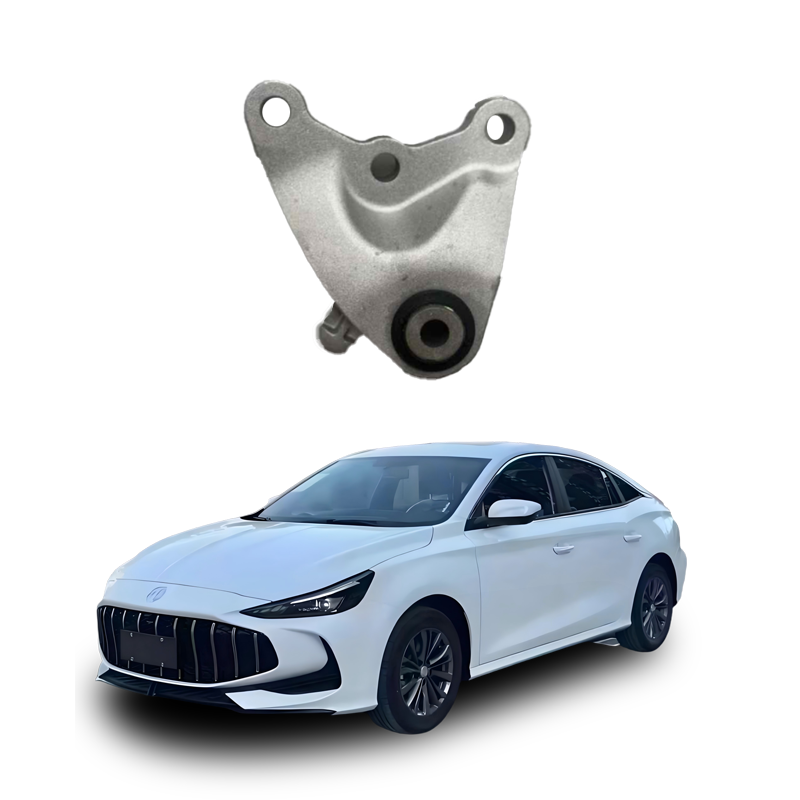

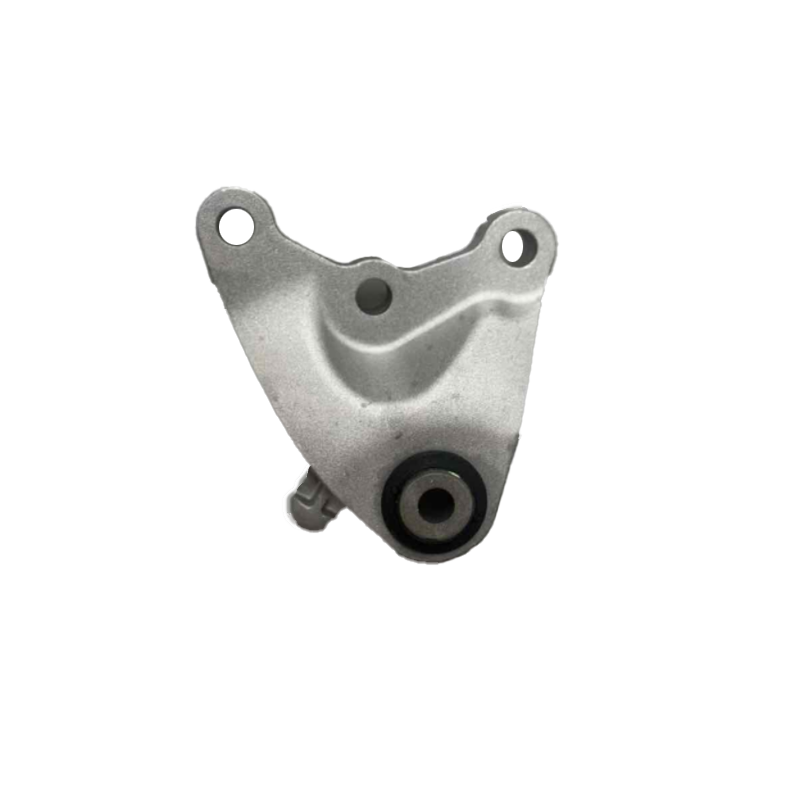

The function of the lower tie rod bracket of the car
In automotive terminology, there is no standard term like "lower tie-rod bracket". Based on the description you provided, this is most likely referring to "lower control arm" (also known as "lower arm bracket" or "lower arm"), which is a key component in the car suspension system.
The main functions of the car lower control arm (lower arm bracket) are as follows:
Supporting the vehicle weight: As a core component of the suspension system, the lower control arm directly connects the wheels to the vehicle body, bearing and distributing the weight of the vehicle, ensuring stable vehicle operation.
Collaborating with shock absorbers, buffering shocks: It works closely with shock absorbers, torsion springs (or torsion bars, air springs, etc. as elastic elements) to effectively absorb and disperse the impact and vibration caused by road bumps, significantly improving driving stability and comfort.
Transmitting torque, assisting steering: The lower control arm is responsible for accurately transmitting the driving force, braking force, and steering force received by the wheels to the frame, while providing support for the steering knuckle arm, making steering more precise and flexible.
Mitigating longitudinal loads: During vehicle acceleration or braking, longitudinal forces are generated, and the lower control arm can effectively alleviate the impact of these forces on the vehicle body, maintaining stable vehicle posture.
Maintaining wheel alignment: It ensures that the relative position of the wheels and the vehicle body is within a reasonable range. If the lower control arm deforms or the rubber sleeves and ball joints inside it age, it will cause the wheel alignment parameters to be inaccurate, leading to vehicle drift, steering wheel wobbling, and abnormal tire wear.
Additional explanation: You may also want to know "stabilizer bar" (anti-roll bar), which is sometimes mistakenly called "tie rod". The stabilizer bar's function is to prevent excessive lateral roll of the vehicle body during turns, generating elasticity through twisting to balance the bouncing of the two suspension systems, enhancing cornering stability. But it is a different component from the lower control arm, and the stabilizer bar is usually connected to the lower control arm through side arms.
Maintenance tips: It is generally recommended to inspect the lower control arm after 6-8 years of vehicle use. If the rubber sleeves are aging, the ball joint clearance is too large, or the control arm is deformed, it should be replaced promptly. After replacement, a four-wheel alignment should be performed to restore the vehicle's normal driving performance.
The "failure of the car lower tie-rod bracket" usually refers to the damage or malfunction of the lower control arm (also known as the lower control arm, triangular lower control arm, etc.) in the car suspension system. This is an important component related to driving safety, and if it fails, it must be given high priority.
The main impacts of lower control arm failure
When the lower control arm fails, it will have a series of significant impacts on the vehicle's driving stability, handling performance, and safety, mainly manifested as:
Vehicle drift: Aging or damaged rubber sleeves in the lower control arm will cause the wheel alignment parameters to be inaccurate, causing the vehicle to involuntarily deviate to one side while driving, requiring continuous correction of the direction.
Reduced handling performance: The failure of the lower control arm is a key component connecting the axle to the vehicle body. Its damage will weaken the support and adjustment capabilities of the suspension system, leading to sluggish steering response, increased body roll during cornering, and reduced driving confidence.
Abnormal driving and bumps: The damaged lower control arm cannot effectively absorb and buffer road impacts, causing a significant increase in bumpiness during driving, and a substantial decline in乘坐 comfort.
Abnormal sounds： After the rubber sleeves wear out， the metal parts collide directly， emitting "clunk" or "bang" sounds when passing over speed bumps， turning， or bumpy roads.
Increased safety risks： In severe cases， the deformation or fracture of the lower control arm will completely disrupt the connection between the wheels and the vehicle body， potentially causing steering failure， abnormal tire wear， and even tire blowouts， significantly increasing the risk of traffic accidents.
Chain damage： The failure of the lower control arm will accelerate the abnormal wear of other suspension components such as tires， shock absorbers， and ball joints， resulting in increased maintenance costs.
Suggested handling measures Stop immediately for inspection: If you notice the vehicle veering, abnormal noises, or abnormal handling, you should stop at a safe location as soon as possible to avoid continuing the journey.
Professional diagnosis: Do not attempt to handle it yourself. Immediately go to a 4S store or a professional automotive repair facility for inspection. The maintenance personnel will use professional diagnostic equipment to read the fault codes and conduct visual and dynamic inspections of components such as the lower arm, rubber sleeves, and ball joints.
If necessary, perform four-wheel alignment: After replacing the lower arm, you must perform four-wheel alignment to restore the correct geometric angle of the wheels and ensure the stability of the vehicle's movement and the lifespan of the tires.
Replace in time: Once it is confirmed that the lower arm or its rubber sleeve is damaged, replace the original or reliable quality parts as soon as possible. Do not sacrifice safety for a minor issue.
Summary: The failure of the lower arm is no trivial matter. It directly affects your driving safety. Please prioritize safety and seek professional help promptly.
