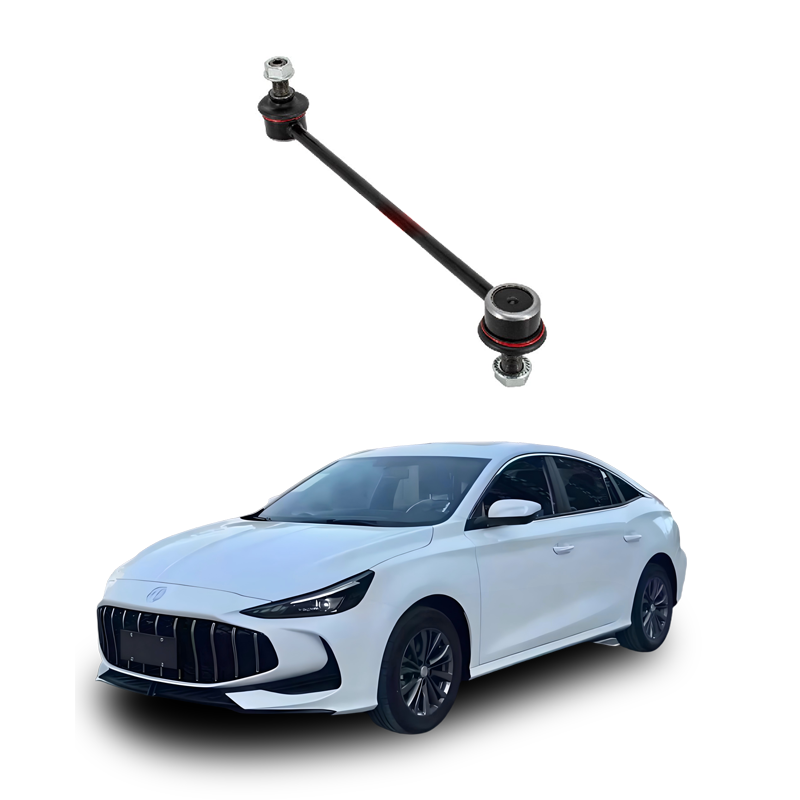

The function of the front stabilizer bar connecting rod
The core function of the front stabilizer bar connecting rod is to suppress the lateral roll of the vehicle body during turns or bumpy driving, maintaining the vehicle balance, thereby enhancing handling stability, driving safety, and passenger comfort. Its specific functions include:
Suppressing roll: During cornering, it generates reverse torsion force by connecting the left and right suspension systems, counteracting the vehicle body tilt caused by centrifugal force, reducing the risk of rollover (the measured roll angle is reduced by 30%-40%).
Enhancing handling stability: It responds quickly (with a response speed of 0.05 seconds or less) during emergency lane changes, shortening the vehicle's re-centering time, and preventing skidding or loss of control.
Maintaining tire contact with the ground, reducing single-side wear, and improving steering accuracy.
Improving comfort: It balances the vibrations of the left and right wheels on bumpy roads, reducing the amplitude of the vehicle body's swaying (vertical vibrations are reduced by 40%), and alleviating motion sickness.
Protecting the suspension system: It disperses the impact force, avoiding overload on shock absorbers, rubber sleeves, and other components, and prolonging the chassis lifespan.
The front stabilizer bar connecting rod (also known as the stabilizer bar link or anti-roll bar connecting rod) is a key component in the vehicle's suspension system. Its main function is to connect the lateral stabilizer bar with the suspension system (such as shock absorbers or control arms). During turns or when driving over bumpy roads, it suppresses the vehicle body roll and maintains driving stability. If this component fails, it will significantly affect driving safety and handling performance.
The main impacts of the failure of the front stabilizer bar connecting rod
Reduced vehicle stability, increased roll
After the connecting rod is damaged, the lateral stabilizer function fails, and during turns or lane changes, the vehicle body roll amplitude increases significantly. The driver will feel the vehicle "float" or "shake", and the control confidence decreases.
Abnormal tire wear
Because the stabilizer bar cannot effectively balance the forces on the left and right wheels, the outer tire bears excessive pressure, resulting in uneven tire wear and shortened tire lifespan.
Accelerated wear of suspension system components
After the connecting rod fails, the impact force originally borne by it is transferred to the shock absorbers, control arms, and other suspension components, causing these components to wear or break down prematurely, increasing maintenance costs.
Abnormal noise and collision risk
The damaged connecting rod or loose ball joint will collide with surrounding components during driving, producing "clicking" or "thumping" sounds, especially on bumpy roads.
If the connecting rod is completely broken, the free state of the stabilizer bar may strike the vehicle body, shock absorber, or other components during turns, causing secondary damage and even endangering passenger safety.
In extreme cases, the broken component may fall and get stuck in road facilities, potentially causing a serious accident.
Increased rollover risk
During high-speed turns or emergency avoidance, the vehicle body roll out of control may cause the vehicle to lose control and skid, with an extreme risk of rollover, especially for SUVs, MPVs, etc., which have a higher center of gravity.
Common causes of failure
Rusty rubber bushings: Long-term use or exposure to high temperatures and oil contamination cause the bushings to crack or deform, losing their buffering and fixation functions.
Worn or loose ball joints: After the dust-proof sleeve of the ball joint is damaged, dust, moisture enter the interior, causing lubrication failure and abnormal wear.
External impact: When the vehicle is bottomed out, collided, or driven into a deep pit, the stabilizer bar link is subjected to impact and deforms or breaks.
Material fatigue: High mileage vehicles (such as over 200,000 kilometers) are prone to fatigue cracks in metal components due to long-term stress.
Suggested handling methods
Immediate repair: If there is steering instability, abnormal noise from the chassis, or obvious roll, it is necessary to go to a professional repair shop for inspection immediately. Do not drive with a faulty vehicle.
Replacement suggestion: Usually, the entire connecting rod assembly (including the ball joint and bushing) needs to be replaced. Replacing only the bushing or using a temporary pad (such as a plastic sheet to fill the gap) is only an emergency measure and cannot ensure long-term safety. Synchronous Inspection: During maintenance, the stabilizer bar itself, shock absorbers, control arms and other related components should be inspected together to avoid "fixing one part but damaging another".
Important Reminder: Although the connecting rod of the front stabilizer bar is a small component, it directly affects driving safety. Any abnormality should be regarded as a potential safety hazard. Timely handling is the key to ensuring your and others' safety.
