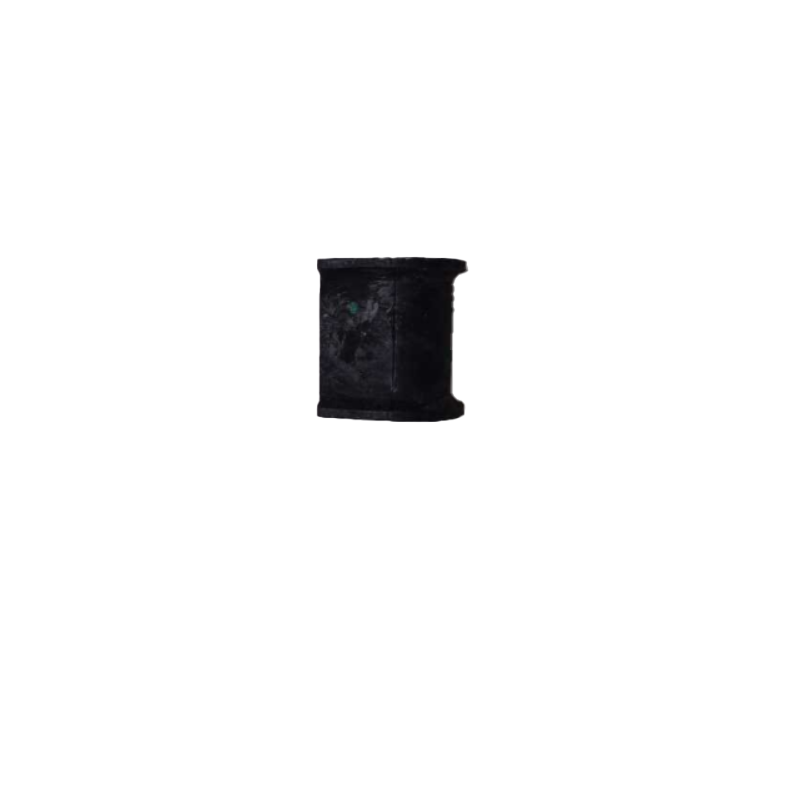

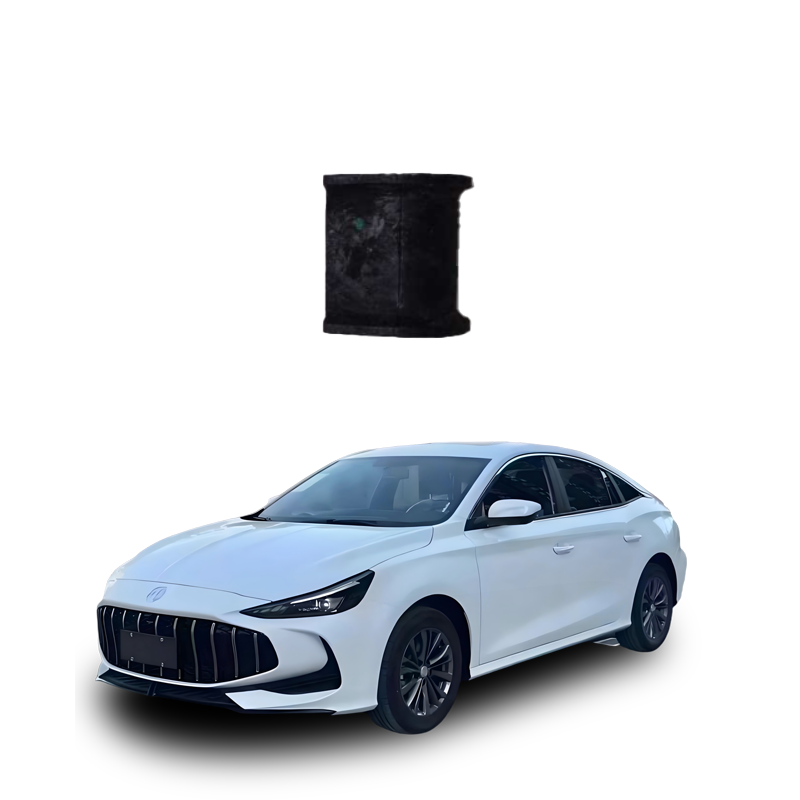

The function of the front stabilizer bar bushing
The front stabilizer bushing is a crucial rubber component that connects the stabilizer bar to the vehicle body or frame. Its main functions are as follows:
Buffering and shock absorption: As a rubber product, the bushing can effectively absorb and cushion the impact and vibration that the stabilizer bar experiences during vehicle movement, reducing noise and bumps transmitted to the vehicle body and enhancing passenger comfort.
Realizing hinge connection: The bushing flexibly connects the middle part of the stabilizer bar to the vehicle body or frame, allowing the stabilizer bar to freely rotate during vertical vehicle movement. It only generates torsional force when the vehicle sideslips (such as during turns), precisely achieving its stabilizing function.
Reducing wear and abnormal noise: Through elastic connection, the bushing can reduce direct friction and wear between the stabilizer bar and the frame, extending the lifespan of the components. When the bushing ages, cracks, or hardens, it is prone to produce abnormal noises such as "thumping" on bumpy roads, requiring timely replacement to maintain the chassis performance.
Assisting in improving handling stability: During turns, the elastic property of the bushing helps the stabilizer bar more effectively suppress the vehicle's side-slip, distributing tire loads more evenly, and indirectly improving the vehicle's handling and tracking capabilities. In conclusion, although the front stabilizer bar bushing is a small rubber part, it plays a crucial role in enhancing the vehicle's comfort, quietness, and handling stability.
The front stabilizer bushing (also known as the stabilizer rubber sleeve) is a crucial rubber component in the vehicle chassis that connects the stabilizer bar to the frame or suspension components. Its main function is to buffer the stress generated by the stabilizer bar during vehicle turns, suppress lateral body roll, and enhance driving stability. When the bushing ages, wears out, or gets damaged, it will cause a series of obvious symptoms that affect driving safety and comfort.
Typical manifestations of front stabilizer bushing failure
Significant chassis noise
When passing over speed bumps, potholes, or bumpy roads, the chassis will emit continuous "creaking" (dry friction of rubber) or "clanging" "thud" (loose ball joint) sounds, usually coming from both sides near the front wheels. In some models, during steering lock or starting/braking, one can also hear "chattering" like friction sounds, which is a typical characteristic of abnormal contact between the bushing and the limit ring.
Decreased driving stability
Increased cornering roll: The vehicle shakes significantly during turns, feeling "soft" or "swaying", losing the previous sense of support.
Sensitive steering feedback: Road vibrations are directly transmitted to the steering wheel, reducing driving comfort.
Minor deviation: During straight driving, frequent corrections of the steering are required, and the vehicle has a tendency to automatically deviate to one side.
Abnormal wear of chassis components and associated faults
After the bushing fails, the stabilizer bar loses effective fixation, causing other chassis components to bear abnormal stress, which may accelerate the wear of the following components:
Steering tie rod ball joint
Lower arm rubber sleeve
Front shock absorber spring (possible uneven height and inconsistent buffering)
Four-wheel alignment parameters become inaccurate (such as changes in the front wheel camber and caster)
Physical deformation and visual inspection clues
The bushing body shows cracks, deformation, bulges, or displacement. In some cases, the rubber can be seen being compressed and deformed.
Lubricating grease at the ball joint leaks, indicating a failure of the seal, and internal dry grinding has occurred.
Potential safety risks
Long-term neglect may lead to:
Extended braking distance (due to uneven tire wear)
Fatigue deformation of chassis components
Increased accident risk
Maintenance suggestions
Only bushing damage: If the bushing cracks but the ball joint has no clearance, the bushing can be replaced separately, the operation is simple, and the repair time is approximately 30 minutes.
Ball joint wear: If accompanied by obvious noise or shaking, the entire set of stabilizer tie rod assembly needs to be replaced. Replacing only the bushing cannot solve the problem.
Preventive maintenance: It is recommended to lift the vehicle and check the bushing condition every 30,000 kilometers or after frequent driving on non-paved roads. Early detection can avoid chain damage.
If the above symptoms occur, it is recommended to go to a professional repair shop for a comprehensive chassis inspection to avoid major losses and affect driving safety.
