The function of the front bumpers of the car

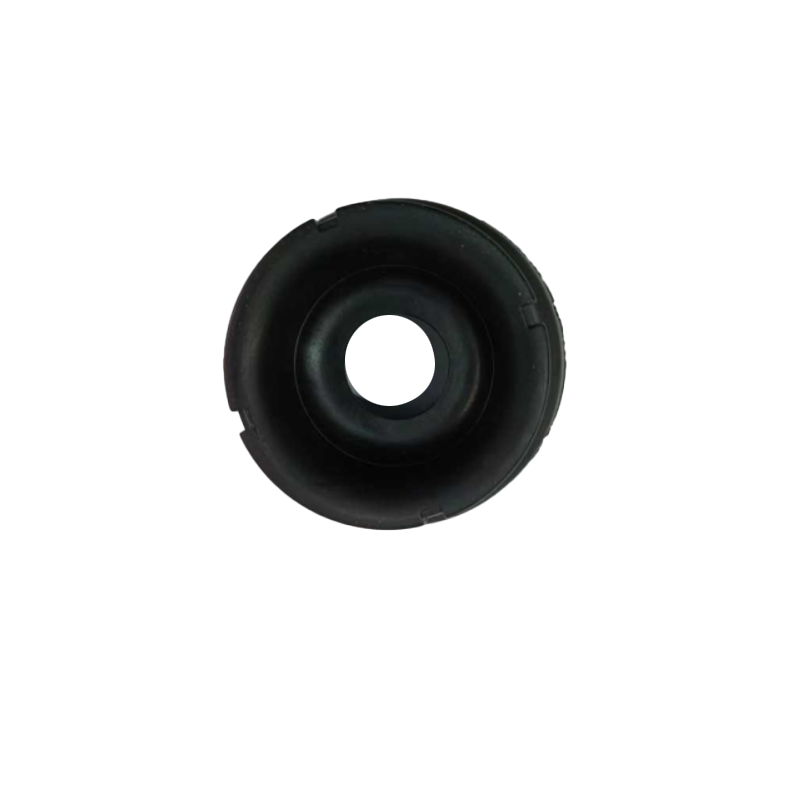

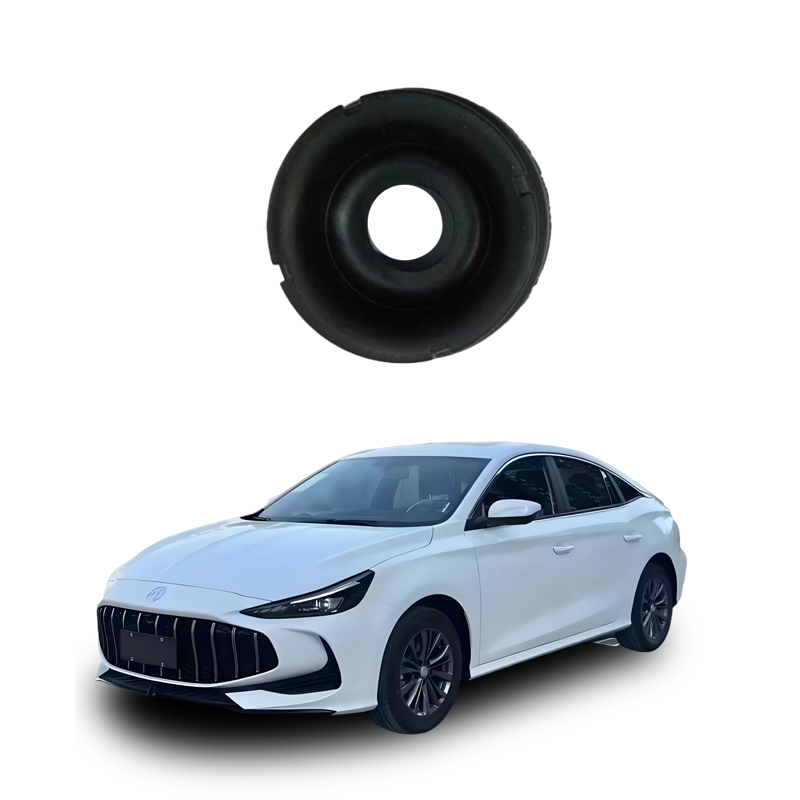

The front shock top rubber, also known as "front shock absorber upper seat rubber bearing", is a key component installed on the top of the front shock absorber, connecting the shock absorber to the vehicle body. Although it is small in size, it is a "hidden guardian" that affects the comfort, stability, and safety of the vehicle.
Its core functions are mainly reflected in the following aspects:
Core Function
Buffer and dampen shock, enhancing comfort
As the "last line of defense" of the shock absorption system, the front shock top rubber can absorb and refine the impact force of the shock spring and shock absorber that has not been fully consumed by the road surface. When the vehicle passes over speed bumps or uneven road surfaces, it converts the hard "dangdang" impact into a dull "popping" sound through the elastic deformation of the rubber layer, significantly reducing the body's bouncing and jolting sensation, and providing a softer and smoother driving experience.
Stabilize the suspension, ensure handling performance
The front shock top rubber can effectively suppress the lateral oscillation of the shock absorber during vehicle steering, cornering, or emergency lane changing. When the top rubber ages, the oscillation amplitude of the shock absorber will significantly increase, directly causing the steering wheel to have "false movement", insufficient return force, or a "stuck" feeling when steering. A well-functioning top rubber can control the installation angle error of the shock absorber within ±0.5°, ensuring precise wheel alignment and improving the handling stability and driving safety of the vehicle.
Reduce noise and dampen sound
Its rubber material can play a "acoustic isolation" role. On the one hand, it can absorb part of the high-frequency tire noise generated by the friction of the tire on the road surface, reducing the transmission of noise into the cabin; on the other hand, it can buffer the vibration at the connection point between the shock absorber and the vehicle body, avoiding abnormal sounds caused by the friction of metal parts, thereby enhancing the cabin's quietness.
Support the vehicle body and protect chassis components
The front shock top rubber needs to bear more than a quarter of the dynamic load of the vehicle body for a long time, providing a reliable support point for the vehicle body. It can evenly distribute the impact force, avoiding overloading of a single suspension component, and reducing up to 60% of the road impact damage to the shock absorber itself, thereby extending the service life of the shock absorber and the entire suspension system.
Typical manifestations of aging and failure
When the top rubber ages, cracks, or deforms, it will cause a series of problems:
Abnormal noise
When passing over speed bumps or uneven road surfaces, a clear "dongdong" metal collision sound is often heard above the front wheel.
When turning in place, there will be a "zhi-zhi" friction sound, and the sound is more sharp in low-temperature environments.
Abnormal noise may also occur during starting or braking.
Decreased handling performance
Increased steering wheel deflection: During straight-line driving, frequent corrections of the direction are required, with the vehicle deviating more than half a lane within 50 meters.
Increased front-end tilt during braking: The tilt amplitude increases by approximately 30% compared to normal conditions.
Reduced steering stability at high speeds: Steering wheel and vehicle body show obvious resonance at speeds over 80 km/h.
Heavy or stuck steering: Feeling difficulty in steering and reduced steering return force.
Sudden drop in riding comfort
The rough road or the slight vibrations directly enter the cabin, and passengers in the rear row might be thrown off their seats.
At idle speed, the vibration of the engine can be transmitted to the steering wheel and the seat through the vehicle body.
The originally soft-filtered bumps become harsh like a direct impact, intensifying the fatigue of the driver and passengers.
Abnormal tire wear
Wave-shaped or sawtooth-shaped wear marks appear on the inner side of the tires.
When driving on a concrete road, the tire noise increases to above 65 dB (detectable using a mobile phone app).
This is because the top rubber fails, causing the shock absorber position to shift, and the wheel alignment parameters (such as front camber and caster angle) to be inaccurate, resulting in uneven tire force.
Visible signs of aging
Open the engine compartment and inspect the rubber components at the top of the shock absorber tower. If you find cracks over 3mm, rust on the metal base, or black rubber debris around the dust cover, it is a clear sign of aging failure.
Pressing around the vehicle body, if the rebound exceeds 2 times and there is an abnormal sound, it also indicates that the top rubber has failed.
Recommendation and handling
Timely inspection: If the above three or more symptoms occur, it is recommended to go to a professional repair point for inspection as soon as possible to avoid damage to the shock absorber or suspension system.
Replacement suggestion: Preferentially choose original factory or well-known brand top rubber parts. Inferior aftermarket parts have a short lifespan and may accelerate the damage of other components.
Extend lifespan: During daily driving, you should accelerate in advance, slow down when passing over减速带 and potholes， and reduce the impact on the top rubber.
