The function of the front horn of a car

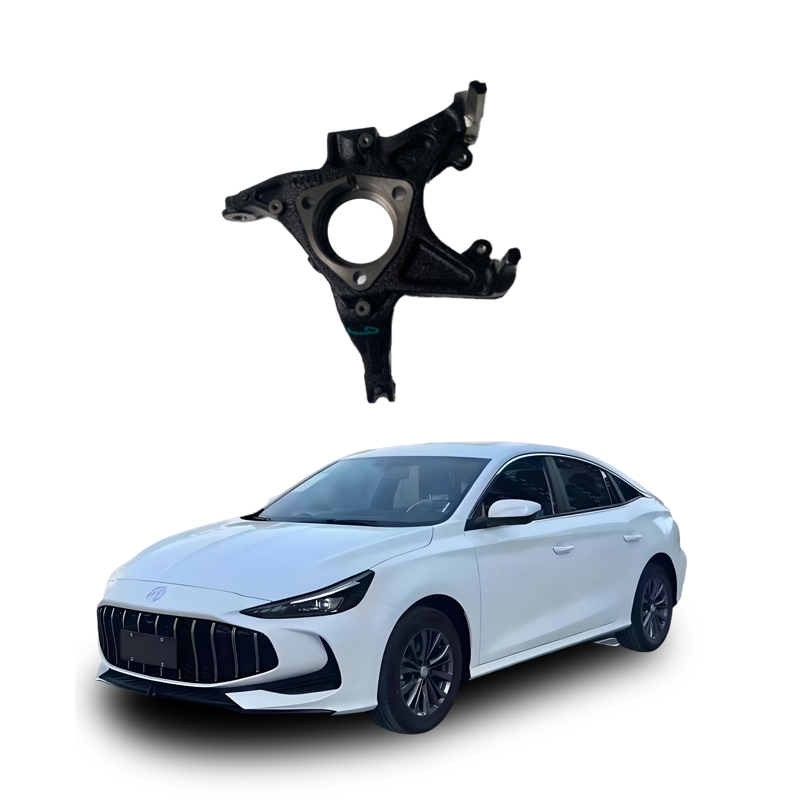

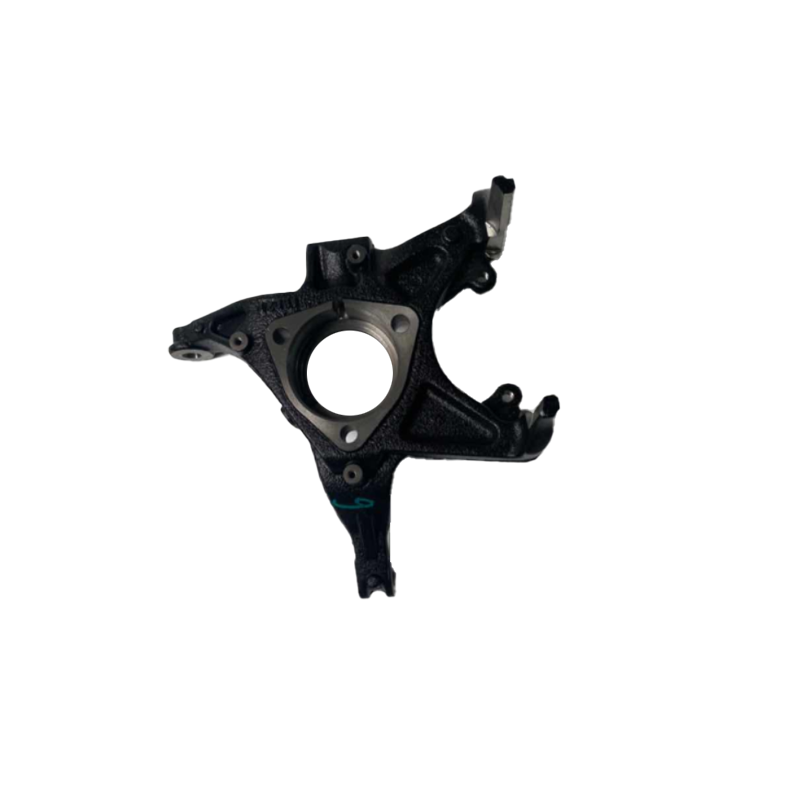

The front steering knuckle, or front steering joint, is a crucial core component of the front axle of a vehicle. Its functions can be summarized as follows:
Transmit and bear loads: As a key part of the steering axle, the front steering knuckle directly bears and transmits the weight of the vehicle's front section, while also bearing complex impact loads from the road during driving, ensuring structural stability.
Achieve precise steering: The front steering knuckle connects the front wheels through the steering tie rod, allowing the wheels to rotate around the steering tie rod axis, thereby accurately and sensitively transmitting the steering command input by the driver to the wheels, enabling the vehicle's steering function.
Connect key systems: It is a multi-functional integrated component. The upper part connects the steering tie rod (transmitting steering force), the lower part connects the suspension tie rod (supporting the vehicle body), and the side connects the half shaft (transmitting power), being the common intersection point of the steering system, suspension system and drive system.
Ensure driving safety and stability: The structural design of the front steering knuckle (such as the rear camber angle of the steering tie rod and the camber angle of the inner side) helps the wheels automatically return to their original position after steering, improving the stability of straight-line driving. Its high-strength materials (such as forged 40Cr steel or aluminum alloy) can effectively absorb and disperse collision energy, providing additional protection for the vehicle body and occupants in accidents, and protecting key components of the chassis in harsh road conditions such as off-road.
Adapt to road and tire requirements: The design of the front steering knuckle determines the camber angle of the wheels, enabling the wheels to maintain the optimal contact state on loaded or arched roads, reducing abnormal tire wear, and optimizing steering lightness.
Damage to the front steering knuckle of a vehicle can lead to abnormal tire wear, vehicle drift, brake judder, abnormal vibration of the steering wheel, and abnormal sounds from the vehicle body, seriously threatening driving safety.
Core fault manifestations
Driving abnormalities
Abnormal tire wear or uneven tire wear: The deformation of the steering knuckle causes an imbalance in the contact between the tires and the ground, resulting in excessive wear on the inner/outer side (such as "tire chewing"), reducing the tire lifespan by more than 50%.
Vehicle automatic drift: The vehicle still drifts to one side when the steering wheel is corrected, requiring continuous correction of the direction.
Control obstacles
Heavy steering: The resistance to turning the steering wheel increases significantly, especially at low speeds.
Abnormal steering wheel vibration: The steering wheel vibrates continuously at high speeds, intensifying at speeds over 60 km/h.
Derived safety risks
Brake system failure
The vehicle body or pedal shakes violently during braking, extending the braking distance by 20%-30%, and is prone to rear-end collisions.
Structural chain damage
If not repaired for a long time, it can cause the suspension system to deform, bearings to break, and increase the repair cost by 3-5 times.
Increased accident probability
The risk of vehicle loss of control during emergency lane changes increases, as the steering knuckle damage weakens the chassis stability.
The abnormal sounds of the front steering knuckle (i.e., the steering joint) usually exhibit the following sound characteristics, and their specific manifestations are closely related to the cause of the fault:
"Squeaking" or "creaking" sound: This sharp, continuous friction sound often occurs during steering, especially when turning in place or at low speeds. This is usually caused by the wear of the bearings inside the steering knuckle, insufficient lubrication, or aging of the rubber sleeve, resulting in dry friction between metal and metal/rubber.
"Clicking" or "clunking" sound: This crisp impact sound occurs when the vehicle passes over bumpy roads or during steering, indicating that the ball head, bearings or connecting components of the steering knuckle have become loose, worn, or cracked, causing impact between components.
Intermittent abnormal sounds: The sound may be intermittent and related to the steering wheel angle, vehicle speed or road conditions. For example, it occurs only when the steering wheel is turned fully to the left or right, which is often related to excessive tolerance in the steering knuckle, uneven wear of the ball head or internal rust. These abnormal noises are usually accompanied by other symptoms, such as shaking steering wheel, heavy steering, abnormal tire wear (tire eating), or body shaking during braking, all of which jointly indicate that there is a fault with the front horn.
If such sounds are detected, it is recommended to conduct a professional chassis inspection as soon as possible to avoid further damage to the components that may affect driving safety.
