What is the inner ball cage of the front half shaft of a car?
The inner ball cage of the front half shaft, also known as the constant velocity universal joint inner ball cage, is a key component that connects the half shaft and the gearbox differential in the front-wheel drive system of a car. It is located on the side of the front half shaft close to the gearbox, and its main function is to smoothly and uniformly transfer the power from the engine to the driving wheels during vehicle operation, avoiding power transmission interruptions or vibrations and abnormal noises.
Main functions
Constant transmission: Ensures that the input shaft and the output shaft maintain the same angular velocity under any angle, overcoming the problem of unequal speed in traditional cross-axis universal joints.
Adapt to displacement: Can withstand axial expansion and angle changes, adapting to the dynamic changes in the length and angle of the half shaft during vehicle steering, uphill, downhill or bumpy road surfaces.
Transmit torque: Efficiently and reliably transmits the power output from the differential to the outer ball cage and the wheels.
Structural composition

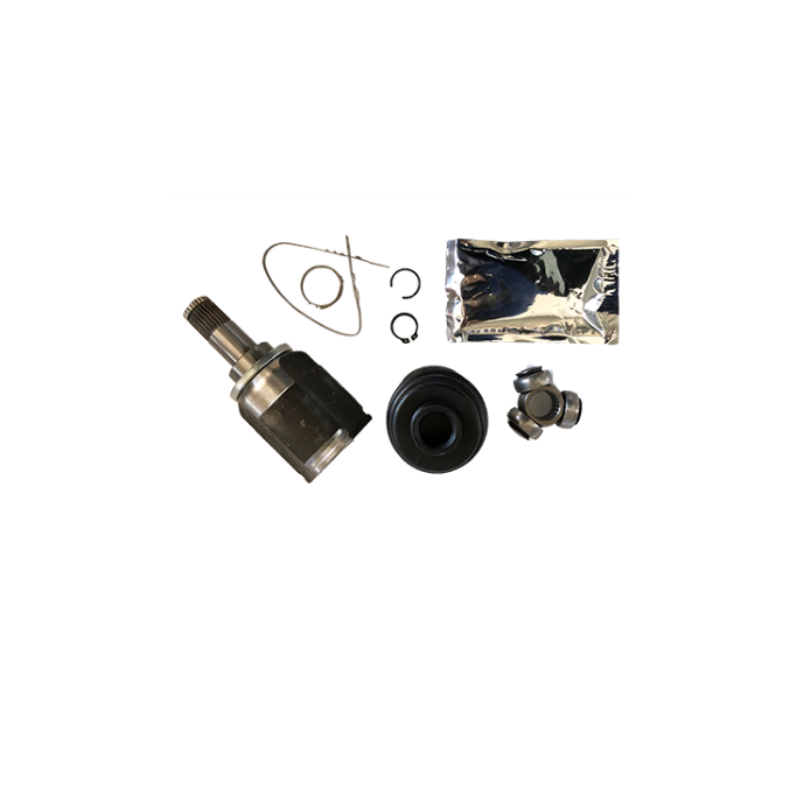

The inner ball cage is usually composed of the following core components:
Cylindrical shell: Connected to the half shaft spline, it is the outer shell.
Triangular bearing (or steel balls): The core transmission element, with a triangular structure that slides in the track within the shell through needle bearings, achieving the function of expansion.
Retaining ring: Fixes the steel balls or needles, ensuring their movement within the correct track.
Dust cover: A rubber seal, preventing dust and moisture from entering and locking in the internal lubricating grease.
Belt ring: Fixed at both ends of the dust cover to ensure sealing.
Special lubricating grease: High-temperature resistant, pressure resistant, mainly composed of molybdenum disulfide, and cannot be replaced by ordinary grease.
Type and characteristics
Triangular (three-ball pin type): Most commonly used in front-wheel drive vehicles, it uses three bearings with needle pins in the track to slide, with a large axial displacement, suitable for positions requiring frequent expansion.
Six-ball (inclined track type): Uses six steel balls in the inclined track to transmit torque, with smoother transmission and lower noise, mostly used in four-wheel drive vehicles or vehicles with higher NVH (Noise, Vibration, and Harshness) requirements, but with a smaller axial displacement range.
Common faults and symptoms
When the inner ball cage is damaged, the following phenomena may occur:
"Creaking" abnormal noise during acceleration or bumps: Especially when the throttle is released or pressed, a clear knocking sound is emitted near the gearbox.
Dust cover damage: Leading to lubricating grease leakage, dust intrusion, and accelerated internal wear, which is the earliest and most common cause.
Vehicle shaking: Obvious vibration in the front axle area at high speed.
Abnormal noise during steering: Severe wear may also cause abnormal noise during steering.
Maintenance suggestions
Regular inspection: It is recommended to inspect the dust cover for cracking or aging every 100,000 kilometers or 4 years.
Timely replacement: Once the dust cover is damaged, it should be replaced immediately to avoid internal component wear and damage.
Professional replacement: Replacing the inner ball cage requires disassembling the half shaft. It is recommended to have it done by a professional repair shop. After replacement, a four-wheel alignment should be performed.
Use original parts: Choose original or well-known brands (such as Natrium, Universal, Coronis, etc.) products to ensure material and heat treatment processes meet standards.
Tips: The inner ball cage and the outer ball cage work together. The outer ball cage is responsible for the change in steering angle, while the inner ball cage is responsible for axial expansion. Either one being damaged will affect driving safety and comfort.
