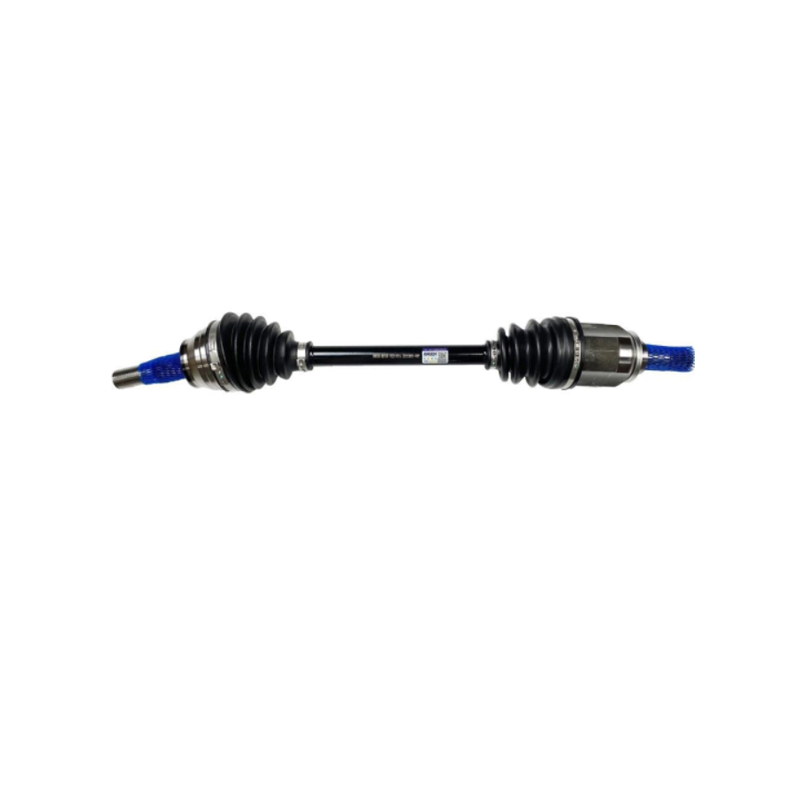

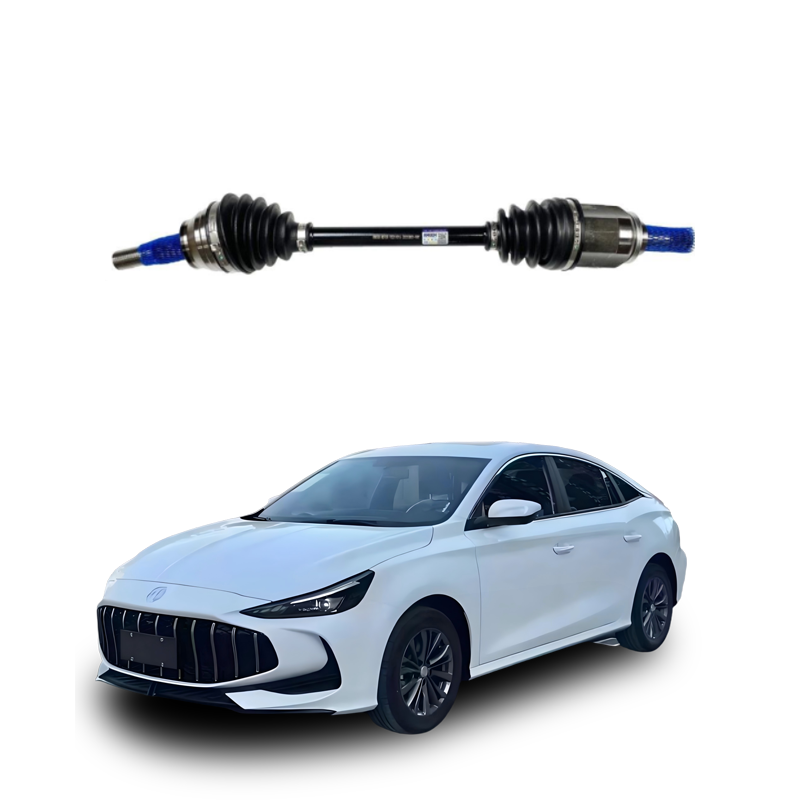

What is the front half shaft assembly of a car?
The front half-axle assembly is a crucial transmission component that connects the differential to the front wheels, responsible for precisely transferring the engine's output power (torque) to the front drive wheels. It is one of the core components for enabling vehicle driving. It plays a particularly important role in front-wheel drive (FWD) and four-wheel drive (4WD) vehicles.
Main Components
The front half-axle assembly is typically composed of the following precision components:
Inner ball cage (inner constant velocity universal joint): Connects the differential side, allowing the half-axle to extend and contract with the suspension movement during vehicle travel and adapt to the angle changes in power transmission.
Outer ball cage (outer constant velocity universal joint): Connects the hub side, enabling the front wheels to still receive power stably during steering, supporting large-angle steering.
Transmission shaft (half-axle rod): A high-strength metal shaft that connects the inner and outer ball cages, serving as the main structure for torque transmission.
Dust cover (dust shield): Wraps around the ball cage exterior, used to seal the lubricating grease and prevent dust, mud, and other impurities from entering, being a key component for extending service life.
Function and Importance
Power transmission: Ensures the efficient and smooth transmission of engine power to the wheels, being the foundation for the vehicle to "move".
Adaptation to steering and jolts: When the vehicle turns or travels over bumpy roads, the ball cage structure can flexibly adjust the angle and length, maintaining the continuity of power.
Impact on driving experience: If the half-axle assembly is worn (such as ball cage wear, dust cover rupture), there will be abnormal sounds (such as "clicking" sounds), starting jitters, and power interruption during steering. In severe cases, it may even cause the vehicle to lose driving power, affecting driving safety.
Commonly Applied Vehicle Models
The front half-axle assembly is widely used in various front-wheel drive and four-wheel drive vehicles, such as:
Honda Fit, Civic, Accord
Camry (front-wheel drive version)
Subaru Forester, Outback, Sportage
Peugeot 307, Citroën C4L and other European models
Regularly checking if the dust cover is cracked or if there is lubricating grease leakage is an important maintenance measure to prevent the failure of the half-axle assembly. When replacing it, it is recommended to choose matching original factory specifications to ensure dynamic balance and stability of steering performance.
The front half-axle assembly is a key transmission component that connects the differential to the front wheels, responsible for transferring power to the drive wheels and adapting to the angle changes during steering. When the front half-axle assembly fails, the vehicle will give warning symptoms through various obvious manifestations. If not handled in time, it may cause serious safety hazards.
Main Fault Symptoms
Severe shaking during driving
At speeds of 60–80 km/h, the vehicle body or steering wheel shows obvious vibration, similar to a "buzzing" resonance sensation, which is usually caused by half-axle deformation, loss of dynamic balance, or internal bearing wear.
Metal noise during steering or acceleration
When turning or the steering wheel is fully deflected, a clear "clicking" metal impact sound is heard, mostly due to wear of the outer ball cage or leakage of lubricating grease.
During hard acceleration, a "clunking" hard impact sound or a sense of instantaneous power interruption occurs, often due to worn half-axle splines, damaged inner ball cage, or loose connection.
Abnormal power transmission
During acceleration, it feels that the power output is not continuous, with a "jolt" or "slip" sensation.
If a single-sided half-axle breaks or is severely damaged, the vehicle will present a "limping" state, that is, it can only rely on the other side of the wheels to drive, with significantly reduced power.
Dust cover damage or oil leakage
Check the rubber dust cover at both ends of the front half-axle. If cracks, damage, or oil stains are found, it indicates that the internal lubricating grease has leaked. Even if there are no abnormal sounds, it should be replaced immediately to avoid the mud and sand from invading and accelerating the wear of the ball cage within 1 month.
Heavy steering or difficulty in steering return
After the ball cage wears out, the steering resistance increases, making it noticeably more difficult to make low-speed turns or reverse; at the same time, the steering return force weakens, requiring manual adjustment, affecting the emergency evasion ability.
Vehicle drift or brake drift
The deformation or damage of the half shaft will disrupt the balance of power between the left and right sides, causing the vehicle to automatically veer to one side when driving in a straight line. During braking, it may also exhibit drifting, and even the steering control may fail.
Abnormal tire wear
Long-term use of faulty half shafts can cause single-sided zigzag or wavy wear on the front wheels, significantly shortening the tire lifespan.
Suggestions and Reminders
Daily self-check: After parking, you can touch the ends of the half shaft. If the temperature difference exceeds 20℃, it indicates that the internal bearings may be damaged; when the engine is off, fully turn the steering wheel left and right to feel if there is any mechanical jam.
Safety Warning: A sudden breakage of the half shaft may cause the vehicle to lose control instantly, especially at high speeds, the risk is extremely high.
Handling Suggestions: If any of the above symptoms occur, please stop driving immediately and go to a professional repair facility for inspection. The dust cover can be replaced separately if it is damaged, but if there is abnormal noise or shaking, usually the entire half shaft assembly needs to be replaced.
Regularly checking the condition of the half shaft dust cover is the lowest-cost and most effective preventive maintenance measure. Avoid frequent aggressive driving or deep-water driving to help extend the lifespan of the half shaft.
