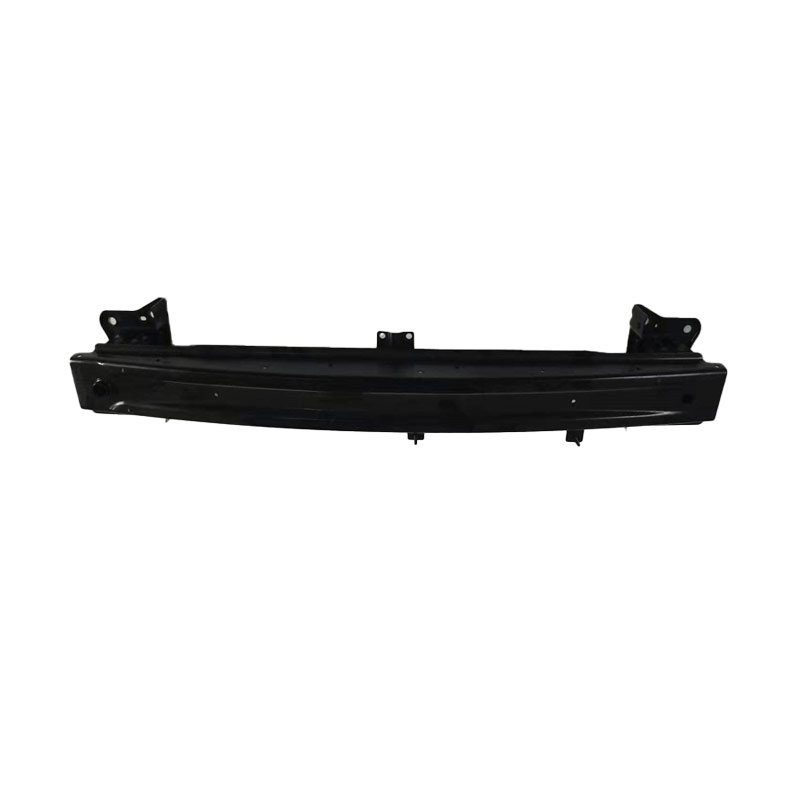

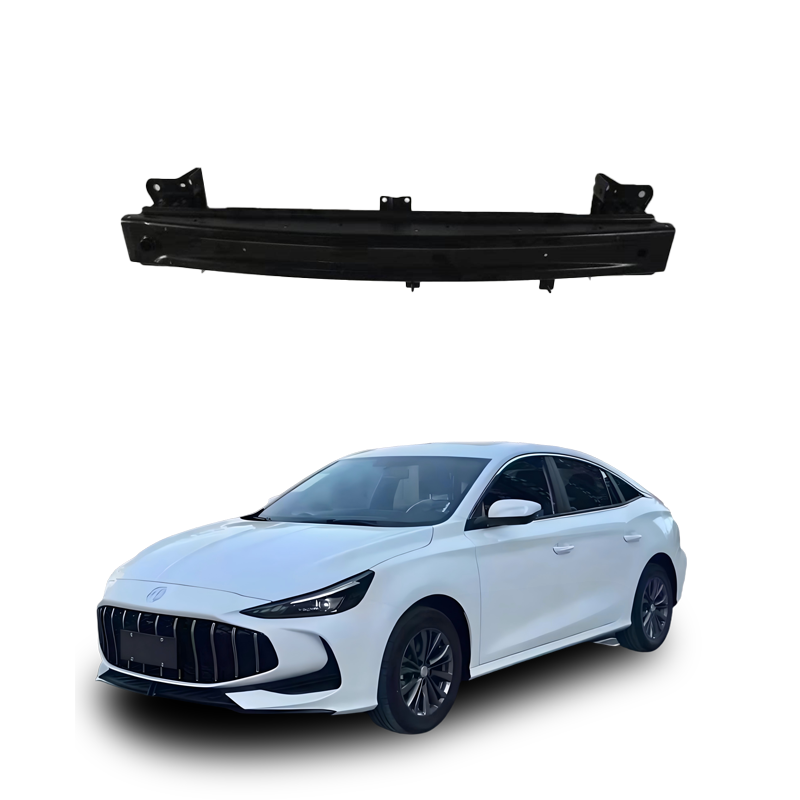

What is the frame of the car's front bumper?
The front bumper frame, often referred to as the front bumper structure or the front impact bar, is one of the core components of the vehicle's front safety system. It does not refer to the visible plastic bumper shell on the exterior, but rather to the structural support and energy absorption devices hidden behind it.
Its main function is to absorb and distribute impact energy during a collision, thereby maximizing the protection of the vehicle's main structure (such as the longitudinal beams) and the safety of the occupants inside.
Main Components
The front bumper frame is typically composed of the following key components:
Main Beam: The main structural component of the frame, usually made of high-strength steel, is the main part that withstands the impact force and acts as a "pillar" of support.
Energy Absorber Box: Located at both ends of the main beam, it is designed to absorb a large amount of impact energy through controlled deformation (such as crushing) like a "buffer", reducing the impact force transmitted to the vehicle body.
Installation Plate (Connection Plate): It securely connects the front bumper frame to the main vehicle frame, ensuring that the entire structure can work together during a collision.
Functions and Importance
Energy Absorption: In low-speed collisions, the main beam and energy absorber box can effectively absorb energy, reducing damage to the vehicle body; in high-speed collisions, it can also transfer and disperse some of the impact force, protecting the passenger compartment.
Structural Support: It provides a stable installation foundation for the external plastic bumper shell, ensuring accurate position and normal function.
Safety Protection: It is an important component of the vehicle's passive safety system, directly related to the vehicle's collision rating and occupant protection level. Common Misconceptions
Not the bumper shell: What is commonly referred to as the "front bumper" usually refers to the outer plastic part, while the front bumper frame is the internal metal or high-strength plastic structure, and they are independent but working together components.
Not all vehicles have it: Although most modern cars are equipped with front impact beams, some lower-end models or special models may have simplified designs and need to be specific to the model.
If the front bumper frame deforms or cracks during an accident, it is recommended to have it evaluated at a professional repair shop. Minor damages can be welded repaired, but if they exceed safety standards, they must be replaced to ensure the safety of subsequent driving.
The front bumper frame, usually called the front bumper frame, is one of the core components of the vehicle's front safety system. It does not refer to the external plastic bumper shell, but the metal structure frame hidden behind it. It is mainly composed of main beams, energy absorption boxes, mounting plates, etc., and is responsible for supporting, absorbing energy, and protecting multiple critical functions.
Main functions
Fix and support the bumper shell
The front bumper frame is the "solid base" of the bumper shell, providing a rigid installation reference for the plastic shell, ensuring that it does not shift, deform or fall off during daily driving, maintaining the integrity and aesthetics of the vehicle's front part.
Absorb and manage collision energy (core safety function)
During a collision, the front bumper frame is the first line of energy absorption defense. Its design includes preset collapse guiding grooves:
Low-speed collision: The energy absorption box will first undergo controlled deformation to absorb most of the impact energy, preventing the impact force from directly transferring to the vehicle's longitudinal beams, thereby reducing repair costs and only requiring the replacement of the energy absorption box.
Medium-high-speed collision: The main beam, as the core load-bearing structure, will evenly and controllably distribute and conduct the remaining impact force to the longitudinal beams on both sides of the vehicle, maximizing the structural integrity of the passenger compartment and providing precious time for the normal deployment of safety airbags.
Enhance vehicle rigidity and driving stability
The front bumper frame is rigidly connected to the vehicle's longitudinal beams through high-strength bolts, forming a stable lateral support structure, which can significantly enhance the overall torsional stiffness of the frame, effectively disperse longitudinal loads generated during acceleration and braking, and enhance the stability of the vehicle during dynamic driving.
Provide pedestrian protection
Modern-designed front bumper frames take into account pedestrian safety in their structure, providing a certain buffer space in the event of a collision with pedestrians to mitigate the impact force on pedestrians.
Protection against minor scratches during daily driving
During daily driving, encountering minor scratches from roadside stones, low obstacles, etc., the front bumper frame can withstand the impact first, preventing more core and more costly components such as the fenders and door panels from being damaged. Summary
The front bumper frame is a "low-profile yet crucial" component in the automotive safety system. It integrates structural support, energy absorption, and safety protection functions. It serves as the "invisible guardian" connecting the bumper shell and the vehicle body's main structure. It plays an irreplaceable role in ensuring the vehicle's appearance, passenger safety, and reducing maintenance costs.
