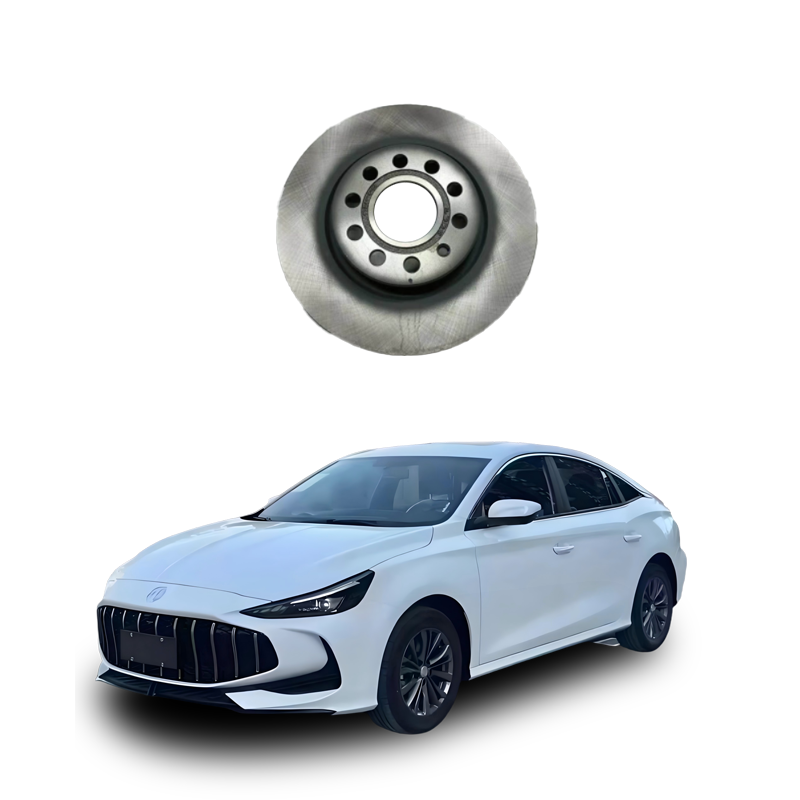

The function of the front brake disc of the car
The front brake disc of a car is a crucial component in the vehicle's braking system, primarily functioning by rubbing against the brake pads to convert the vehicle's kinetic energy into heat energy, thereby achieving deceleration or stopping.
Specifically, its functions are manifested in the following aspects:
Core braking function: When the driver depresses the brake pedal, the brake caliper will clamp the front brake disc that rotates along with the wheels, using the friction between the two to generate braking force, which directly acts on the front wheels, causing the vehicle to decelerate or stop.
Carrying the main braking force: Due to the forward shift of the vehicle's center of gravity during braking, the front braking system needs to bear approximately 70% of the braking force. Therefore, the front brake disc is usually thicker and larger than the rear brake disc, and has better heat dissipation performance.
Improving braking performance and safety: The front brake disc often adopts a ventilated disc (air duct disc) design, with internal cooling channels, which can effectively reduce the heat generated during braking and minimize "thermal fade" phenomena, ensuring stability during continuous braking.
Some high-performance models may also use drilled or lined discs, further enhancing cooling and drainage capabilities, but this will increase the wear on the brake pads.
Enhancing response and control: The disc brake structure responds quickly, which is suitable for working in conjunction with electronic safety systems such as ABS (Anti-lock Braking System), providing a more precise and linear braking experience.
In summary, the front brake disc is not only the core execution component of the braking system but also a key link in ensuring driving safety. Its performance directly affects the braking distance and handling stability of the vehicle.
The front and rear brake discs of a car are not interchangeable.
The main reason is that the front and rear braking systems have significant differences in design and function, specifically manifested in the following aspects:
Different braking force distribution: During vehicle braking, due to the forward shift of the center of gravity, the front braking system needs to bear 70% of the braking force, while the rear braking system only handles approximately 30%. Therefore, the front brake disc is usually designed larger and thicker to withstand higher heat and friction, ensuring braking efficiency.
Size and structural differences: The diameters, thicknesses, and other parameters of the front and rear brake discs of different models vary. For example, the front brake disc of the Volkswagen Touareg has a diameter of 312 mm, while that of the Passat is 286 mm; the rear brake discs of the Bora Legend and the new Bora also have different sizes. Even within the same car model, the brake disc sizes of different configuration models may also differ.
Different requirements for heat dissipation and materials: The front brake disc, due to its high workload, is usually designed with a ventilated structure to enhance heat dissipation performance; the rear brake disc is mostly a solid disc, with relatively lower requirements for heat dissipation.
If they are forcibly interchanged, it may result in insufficient braking on the front wheels or overheating and failure of the rear wheels, seriously affecting driving safety.
System compatibility issues: The brake disc, caliper, hub, sensors, etc., are designed as an integrated match. Interchange may lead to installation mismatch, abnormal braking sounds, and misjudgment of the ABS system.
Although a few special models may have the same size of front and rear brake discs due to platform sharing, it is absolutely not allowed to use them interchangeably. To ensure the normal operation of the braking system and driving safety, when replacing the brake disc, it must be strictly selected with dedicated parts based on the vehicle model, configuration, and original factory specifications. It is recommended to refer to the vehicle manual or consult a professional repair facility.
If you want to know more, keep reading the other articles on this site!
