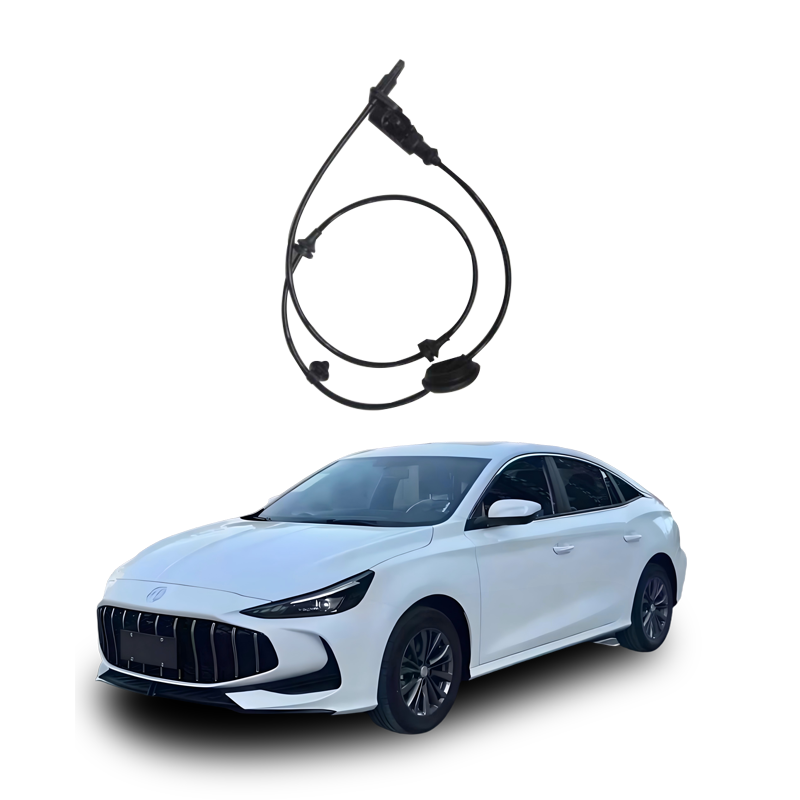

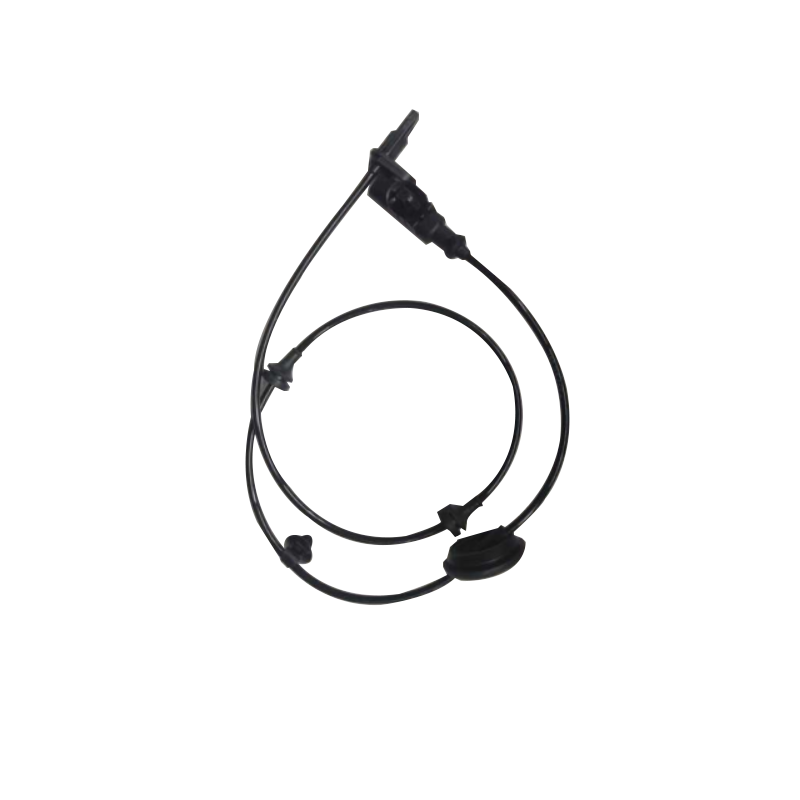

What is the front ABS sensor of a car?
The front ABS sensor, also known as the front wheel ABS speed sensor, is a key component of the vehicle's anti-lock braking system (ABS), specifically designed to monitor the real-time speed of the front wheels.
Its primary function is to provide the ABS electronic control unit (ECU) with precise data on the speed of the front wheels. When the vehicle is braking urgently, if a front wheel is about to lock up (with a sudden drop in speed), the ABS system will, based on the signal sent back by this sensor, quickly adjust the braking force of that wheel to prevent it from locking completely, thus ensuring that the vehicle can maintain steering control and stability during braking and avoiding skidding or loss of control.
Main features and working principle
Installation location: It is usually fixed on the steering shaft or suspension components of the front wheels, close to the hub bearing, with its sensing end maintaining a very small gap from the ring gear (or magnetic-coded ring) installed on the hub or brake disc.
Working principle: Most modern vehicles use magnetic-electric sensors. When the wheel rotates, the teeth and grooves of the ring gear will periodically change the magnetic field near the sensor, thereby inducing a sinusoidal alternating current signal with a frequency and amplitude proportional to the wheel speed in the coil. This signal is transmitted to the ABS control unit.
Signal characteristics: During normal operation, it can be observed through an oscilloscope that its output is a sine wave with an amplitude that increases as the speed rises. Its resistance value is typically between 800Ω and 2kΩ. If the measurement result is 0Ω (short circuit) or infinity (open circuit), it indicates that the sensor is damaged.
Fault impact and maintenance
Fault impact: If the front ABS sensor fails (such as signal interruption or abnormal data), the ABS system will not be able to accurately determine the locking trend of the front wheels during emergency braking, which may cause the front wheels to lock up during emergency braking, significantly reducing the vehicle's handling and safety. At this time, the ABS warning light on the dashboard will illuminate.
Common fault causes: The sensor head is covered with iron filings or dirt; the gap between the sensor and the ring gear is too large or too small; the cable is damaged, or the plug is corroded; the internal coil of the sensor is open circuit or short circuit.
Maintenance suggestions: When the ABS light is on, a professional OBD diagnostic tool should be used to read the fault code (such as C0115-C0120) to locate which wheel's sensor is malfunctioning. Regularly check if the sensor installation is firm, and if there are any damages to the cables, and keep the sensor sensing area clean. After replacing tires or performing four-wheel alignment, it may be necessary to recalibrate the sensor.
The front wheel ABS sensor in a car is a key component of the vehicle's safety system. Its core function is to monitor the real-time speed of the front wheels and transmit precise wheel speed signals to the vehicle's electronic control unit (ECU), providing basic data support for multiple safety systems.
Specific functions can be summarized as follows:
Core function: Ensure braking safety
Prevent wheel lock-up: During emergency braking, the front wheel ABS sensor can detect changes in the wheel speed at a millisecond level. Once it detects that the front wheel is about to lock up (with a sudden drop in speed), the ABS control module will immediately reduce or cut off the braking force of that wheel through an electromagnetic valve, allowing the wheel to resume rotation, and then apply braking force again, forming a "lock-up-release" cycle. This process keeps the front wheel in an ideal "rolling-sliding" state, maximizing the static friction between the tire and the ground, significantly reducing the braking distance and avoiding vehicle loss of control, skidding, or runaway.
Improve braking efficiency: By precisely feedback the wheel speed, the ABS system can dynamically adjust the braking force, ensuring that the front wheels receive the optimal braking force under any road conditions (especially on wet and slippery roads), improving the overall braking performance.
Important auxiliary functions Vehicle Speed Detection: The vehicle speed and mileage data displayed on the dashboard are mostly calculated based on the wheel speed signals from the ABS sensors of the front (and rear) wheels. It is one of the main sources of vehicle speed information.
Indirect Tire Pressure Monitoring: In vehicles equipped with the indirect tire pressure monitoring system (TPMS), the ABS sensor compares the rotational speed differences of the four wheels to determine if the tire pressure is abnormal. When the air pressure of a certain tire (such as the front tire) is insufficient, its rolling radius becomes smaller, and its rotational speed will be higher than that of other normal tires. The system then triggers a tire pressure alarm accordingly.
Auxiliary Body Stability System (ESP/ESC): The front wheel sensors are an important data source for the ESP system. During steering or driving on slippery roads, the system quickly identifies whether the vehicle is experiencing a side skid or insufficient/over steering by comparing the rotational speed differences between the front and rear wheels, and automatically applies braking to individual wheels or adjusts the engine output to stabilize the vehicle's posture.
Monitoring Loose Tire Bolts (for some models): In some brands (such as Volkswagen, Audi, BYD), the ABS sensor can assist in determining whether the bolts of the front tire are loose by monitoring the subtle fluctuations in the wheel speed, and trigger the corresponding safety warning.
Impact of Faults
If the front wheel ABS sensor fails (such as being covered with dirt, having a damaged wiring harness, or being internally damaged), it will result in:
The ABS fault light on the dashboard lights up, and in some vehicles, the ESP/ESC or tire pressure monitoring lights also light up simultaneously.
ABS system failure: During emergency braking, the wheels may completely lock up, losing the ability to control the direction.
ESP system downgrade: The vehicle's stability decreases on slippery roads or during emergency avoidance.
Abnormal vehicle speed display: Some vehicles may experience a malfunctioning speedometer or incorrect mileage calculation.
Therefore, although the front wheel ABS sensor does not directly generate braking force, it is the "nerve endings" that ensure braking safety, vehicle stability, and the normal operation of multiple intelligent functions. Its reliability directly affects driving safety.
