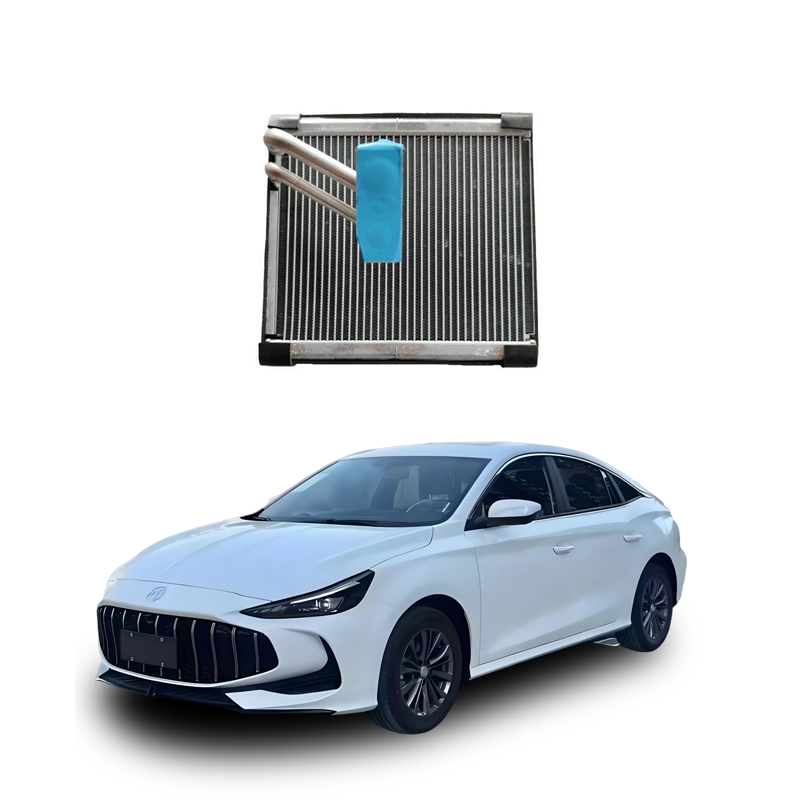

What is the evaporator core of a car?
The automotive evaporator core is the core heat exchange component in the automotive air conditioning system, often referred to as the "evaporator core" or "cooling core body". Its main function is to achieve the phase change of refrigerant and absorb heat, thereby providing cold air to the interior of the vehicle.
Core Function and Working Principle
Heat Exchange Core: The evaporator core body is filled with fine metal pipes (mostly copper or aluminum), and the internal liquid refrigerant is circulating at a low temperature and low pressure. When the air conditioning is turned on, the blower forces the air inside the vehicle to pass over the dense fins of the evaporator core body. The refrigerant absorbs the heat from the air in the pipes, evaporates from liquid to gas, and thereby cools and dehumidifies the air.
Key Function: This process is a crucial part of the air conditioning refrigeration cycle, directly determining the cooling efficiency of the air conditioner, the stability of the outlet temperature, and the comfort of the interior air.
Structural Characteristics and Design
Material and Process: High-quality evaporator core bodies use corrosion-resistant and high-pressure-resistant materials, such as thick-walled copper tubes and high-density aluminum heat dissipation fins, to ensure efficient heat exchange and long service life.
Integrated Design: In most traditional gasoline vehicles, the evaporator core body and the heating water tank (heater core body) are integrated and installed inside the passenger side dashboard, forming the air conditioning box assembly. During summer cooling, the heating water tank cuts off the supply of hot water; during winter heating, the engine-circulated hot water is used to heat the air.
High Adaptability Requirements: Different vehicle models have strict design specifications for the evaporator core body in terms of size, interface angles, and expansion valve matching, and even a slight deviation can lead to installation difficulties or sluggish system response.
Common Problems and Maintenance
Aging Manifestations: Over time, the fins may become clogged due to corrosion, dust accumulation, or mold growth, resulting in reduced cooling efficiency, decreased air volume, and even unpleasant odors.
Maintenance Suggestions: Regular replacement of the air conditioning filter is the key to protecting the evaporator core body, effectively blocking dust and impurities from entering. If there is a significant decrease in cooling performance, a strong odor, or other issues, it is recommended to have a professional maintenance personnel inspect the system, and replace the core body components if necessary.
Layout Differences of Different Vehicle Models
Although the evaporator core body is typically located inside the passenger side dashboard of most family cars, some models, due to platform design differences, may vary:
Electric Vehicles (EVs): For example, Tesla Model 3, due to the removal of the traditional engine, the air conditioning system layout is reconfigured, and the evaporator core may be integrated into the vehicle's head electronic equipment compartment.
MPVs and Commercial Vehicles: Some models adopt a split design, adding an auxiliary evaporator core in the rear to improve temperature uniformity.
In summary, the evaporator core body is the "heart" component that ensures the comfort of the interior. Its performance directly affects the overall performance of the air conditioning system.
The automotive evaporator core (usually referring to the evaporator core body) is the core component of the automotive air conditioning system, responsible for absorbing heat in the vehicle to achieve cooling. When it fails, it will directly affect the performance of the air conditioner and the driving comfort. Based on the latest authoritative data, the main fault symptoms and causes are as follows:
Main Fault Symptoms
Significant Decrease or Complete Failure of Air Conditioning Cooling Effect: This is the most direct and common manifestation. The evaporator core body is clogged, leaking, or frozen, which will prevent the refrigerant from evaporating and absorbing heat properly, resulting in cold air not being blown out from the outlet or the air temperature being too high.
Odor from the Outlet: The surface of the evaporator core body accumulates dust, oil, mold, etc., or there is corrosion inside, which will cause the air blown out to have a musty, sour, or other unpleasant odor, affecting the air quality inside the vehicle.
Reduced Airflow of the Air Conditioning System: If the core body is severely clogged with dirt, it will hinder air circulation, resulting in even if the fan is running at high speed, the air volume from the outlet is significantly reduced.
Leaking Drainage Pipe of the Evaporator Core: During operation, the evaporator core generates condensate water, which is normally discharged outside the vehicle through the drainage pipe. If the core itself cracks, corrodes, or the connection between it and the drainage pipe is not properly sealed, condensate water will leak inside the vehicle (such as under the passenger seat cushion).
Frequent start-stop of the compressor: If the evaporator box is faulty (such as clogged or leaking), it will cause abnormal pressure in the air conditioning system. To protect itself, the compressor may start and stop frequently, increasing energy consumption and shortening its lifespan.
Smell of refrigerant odor: If the evaporator box core has cracks or damages, it will lead to refrigerant (chlorofluorocarbon) leakage. Refrigerant or its lubricating oil usually has a pungent smell similar to chemical solvents, which not only affects mood but may also harm health if inhaled for a long time.
Common Fault Causes
Dirt and blockage: If the air conditioning filter is not replaced for a long time, dust, pollen, oil, and other impurities accumulate on the surface of the evaporator box core, affecting the efficiency of heat exchange.
Refrigerant leakage: If the evaporator box core has minor cracks due to material aging, corrosion, or manufacturing defects, it will cause slow or rapid leakage of refrigerant.
Ice blockage: If the temperature setting of the air conditioning system is too low, the temperature sensing element (temperature sensing tongue) fails, or there is too much refrigerant, the surface of the evaporator box will freeze, and the ice layer will block the air ducts.
Aging sealing parts: The sealing rings between the evaporator box core and the shell, or the drainage pipe, are aged, deformed, or installed improperly, causing condensate water leakage or air leakage.
Design or manufacturing defects: Some vehicle models have inherent design or manufacturing defects in the evaporator box core.
Important Note
Complex and costly repair: The evaporator box core is hidden deep inside the dashboard, and replacement or repair requires the removal of a large number of control components. The labor cost is high, and the total cost is usually over ten thousand yuan.
Do not handle it yourself without professional knowledge: The air conditioning system involves high-pressure refrigerant. Improper operation may cause leakage, poisoning, or even explosion. It is strongly recommended to send the vehicle to a professional 4S store or repair shop for diagnosis and repair.
Prevention is better than repair: Regularly replace the air conditioning filter (suggested every 1-20,000 kilometers or once a year), and regularly clean and disinfect the air conditioning system to effectively extend the lifespan of the evaporator box core.
