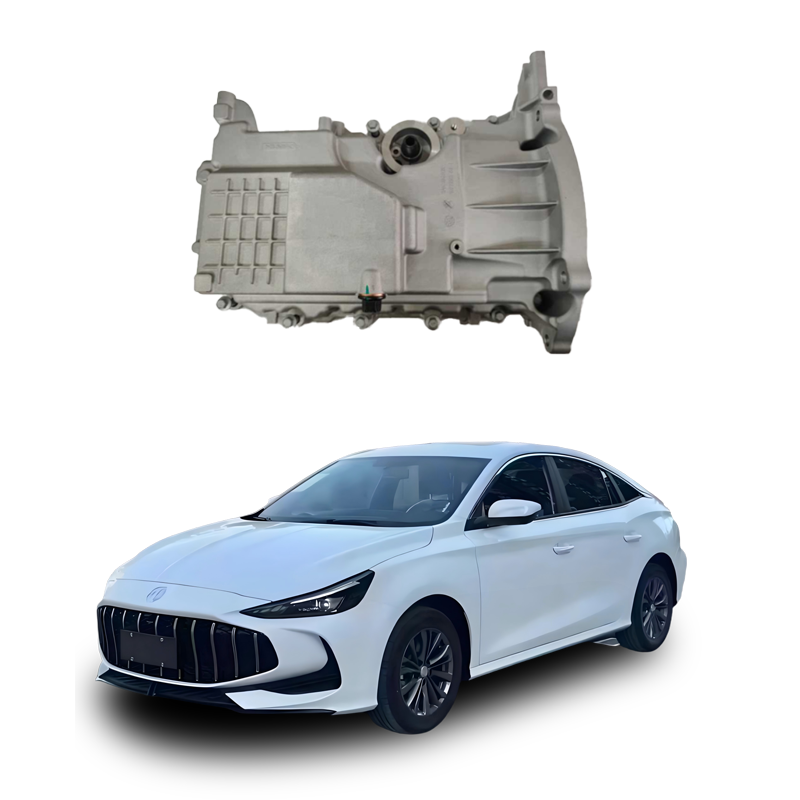

What is the oil pan of an automobile engine?
The oil pan of a car engine, also known as the "lower crankcase", is a detachable and sealed housing located at the bottom of the engine. It is a key component of the engine's lubrication system. Its main function is to seal the crankcase, store lubricating oil, prevent impurities from entering, and help dissipate some heat and prevent the lubricating oil from oxidizing.
Main functions:
- Oil storage and sealing: As the "oil reservoir" of the engine, it collects and stores the lubricating oil flowing back from various friction components, while sealing the crankcase and isolating external dust and impurities.
- Heat dissipation: Through its structure, it disperses some of the heat of the lubricating oil into the air.
- Facilitates maintenance: At the bottom, there is a "oil drain plug" for easy replacement of the oil; on the side, there is an "oil dipstick" for checking the oil level.
- Stabilizes the oil: Inside, there is a "stabilizing baffle" to prevent the oil from shaking violently during vehicle bumps or turns, ensuring that the oil pump can stabilize the oil intake and avoiding lubrication interruption.
Main classifications:
Based on the different storage and lubrication methods, the oil pan is mainly divided into two types:
- Wet oil pan:
- Characteristics: The oil is directly stored in the oil pan, and the engine is lubricated by the oil splashed and vaporized by the rotating motion of components such as the crankshaft and connecting rod.
- Advantages: Simple structure, low cost, and easy maintenance.
- Disadvantages: It requires strict oil level height (too low will lead to insufficient lubrication, and too high will increase resistance and may cause oil burning); vehicles on steep slopes or during intense driving are prone to lubrication interruption due to oil shaking.
- Application: Most family cars on the market use wet oil pans.
- Dry oil pan:
- Characteristics: The oil pan itself does not store oil, but it is supplied by an independent external oil tank and multiple sets of oil pumps, which pressurize the oil and deliver it to various lubrication points.
- Advantages: Significantly reduces the engine's center of gravity, improving vehicle handling; still ensures stable oil supply during intense driving and high lateral acceleration, avoiding "oil interruption" risks.
- Disadvantages: Complex structure, high cost, and consumes more engine power (as the oil pump requires a larger power to drive).
- Application: Mainly used in high-performance sports cars, racing cars, etc., which have extremely high requirements for handling and performance, such as Lamborghini, etc.
Structure and materials
Most family cars' oil pans are made of thin steel plates by stamping, balancing strength and cost.
Some high-end models use aluminum casting, and may have heat dissipation fins to enhance the cooling effect.
The oil drain plug often has magnetism, which can adsorb metal debris in the oil, reducing engine wear.
In summary, although the oil pan is a "bottom layer" component of the engine, its design directly affects the lubrication efficiency, engine lifespan, and vehicle performance, and is an indispensable part of the lubrication system.
The oil pan failure of an engine will directly affect the engine's lubrication, heat dissipation, and normal operation. According to recent data, the main types of oil pan failures are as follows:
Main fault types and symptoms
- Leakage: This is the most common failure phenomenon.
- Manifestation: Oil stains are clearly visible on the ground after parking, and the oil dipstick level is significantly lower than the normal range.
- Cause: The sealing glue between the oil pan and the cylinder block is aged or insufficient, the oil seals at the front and rear of the crankshaft are aged and damaged, the oil drain bolt of the oil pan is slotted (usually caused by excessive tightening torque during oil replacement exceeding 30 Newton-meters), or the oil pan itself cracks or deforms due to collisions.
- Deformation or damage:
- Manifestation: The appearance of the oil pan shows dents or fragmentation.
- Cause: The oil pan is located at the bottom of the engine and is close to the ground, and it is easily damaged by collisions with road curbs, potholes, etc. even if there is no immediate leakage, the internal structure may already be damaged, posing a hidden danger.
- Decrease in oil pressure and abnormal noise:
Performance: The oil pressure warning light on the dashboard lights up; abnormal noises are emitted when the engine is running, such as a low-pitched hum, sharp friction sounds, and in severe cases, metallic impact sounds.
Causes: Damage to the oil pan causes oil leakage or insufficient supply, resulting in the internal engine components (such as bearings, valve mechanisms, etc.) lacking the necessary lubrication, causing increased friction, not only generating noise but also leading to accelerated wear of the components.
Engine overheating:
Performance: The engine temperature rises abnormally, and even "boils over" occurs.
Causes: Oil, while lubricating, also has an important cooling function. Faults in the oil pan prevent proper oil circulation or insufficient supply, which seriously affects the engine's cooling efficiency.
Power loss:
Performance: The vehicle lacks acceleration power and has a sluggish response.
Causes: Poor lubrication and engine overheating work together to prevent the engine from operating efficiently, resulting in a decrease in output power.
Water or oil ingress (rare but serious):
Performance: The oil color turns milky white, water droplets appear in the oil, the coolant decreases abnormally, and water droplets or white fog appear at the air intake port.
Causes: The cylinder liner experiences "pitting" or cracks due to "pitting erosion", causing coolant to seep into the oil pan; or the oil cooler is damaged, the water seal of the water pump is aging, etc., causing coolant to mix with the lubrication system.
How to determine if the oil pan is damaged?
Intuitive inspection: After parking, observe if there is any oil on the ground and check if the oil level in the dipstick is too low.
Observe the instrument: Pay attention to whether the oil pressure warning light is on.
Listen for abnormal noises: Pay attention to whether the engine emits abnormal noises.
Professional detection: Use an automotive diagnostic tool to check if the oil pressure is stable; or lift the vehicle with a lift and directly visually inspect the appearance of the oil pan for cracks, deformation, or leakage signs.
Summary and suggestions
The consequences of oil pan damage are serious. If not promptly addressed, it is highly likely to cause major damage such as engine cylinder seizure and bearing seizure. Once any of the above symptoms are detected, stop driving immediately and seek professional repair. To prevent faults, it is recommended to regularly check the sealing condition of the oil pan, avoid intense driving and chassis impacts, and replace the engine oil and oil filter according to the maintenance schedule.
