What is the function of the car condenser?

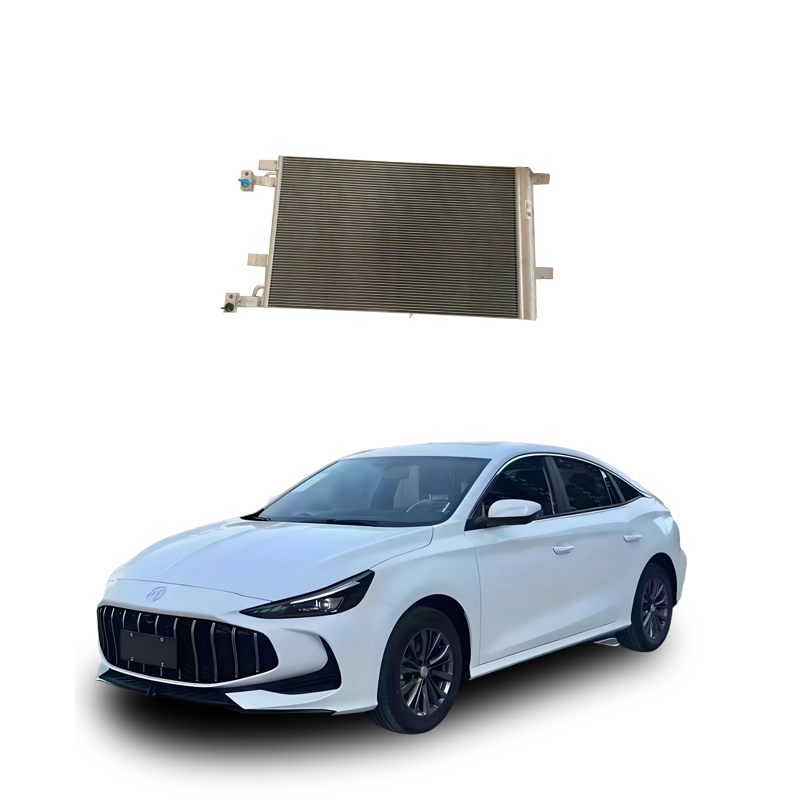

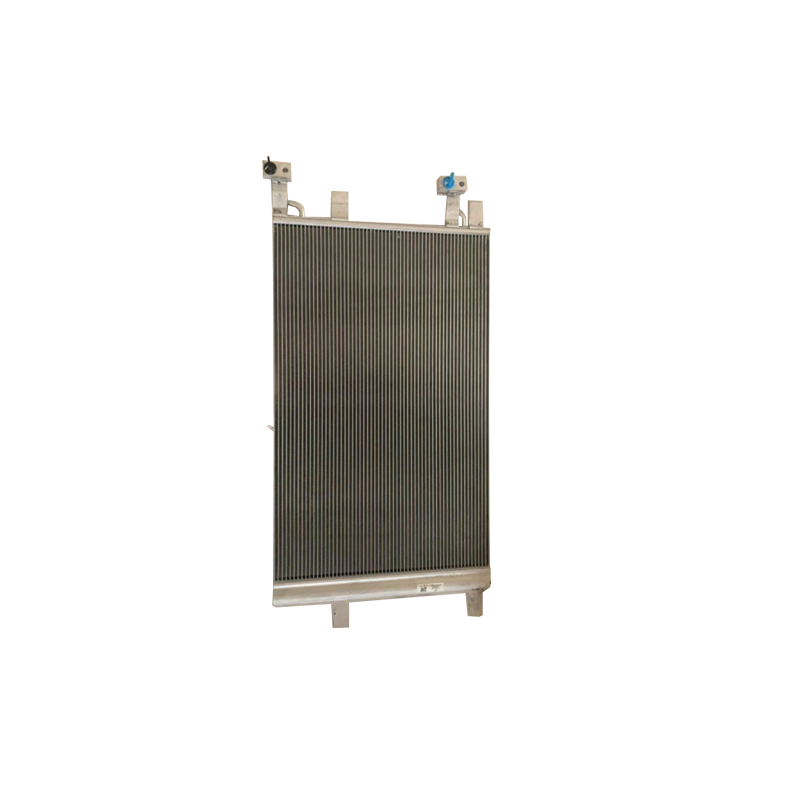

The condenser (Condenser) is a component of the refrigeration system and belongs to a type of heat exchanger. It can convert gases or vapors into liquids, transferring the heat in the pipes to the surrounding air in a rapid manner. The working process of a condenser is a process of heat release, so the temperature of the condenser is always relatively high.
Power plants use many condensers to condense the steam expelled by the turbine. In refrigeration plants, condensers are used to condense refrigerant vapors such as ammonia and Freon. In the petrochemical industry, condensers are used to condense hydrocarbons and other chemical vapors. In the distillation process, the device that converts vapor into liquid is also called a condenser. All condensers operate by removing the heat of gases or vapors.
Gases pass through a long pipe (usually coiled into a spiral) to allow heat to dissipate into the surrounding air. Copper and other metals with strong heat conductivity are often used for transporting vapor. To improve the efficiency of the condenser, heat-conducting performance-enhanced heat sinks are often attached to the pipes, increasing the heat dissipation area, accelerating heat dissipation, and using fans to accelerate air convection to remove the heat.
In the refrigeration cycle system, the compressor sucks in the low-temperature and low-pressure refrigerant vapor from the evaporator, undergoes adiabatic compression in the compressor to become a high-temperature and high-pressure superheated vapor, and is then pressurized and cooled in the condenser at a constant pressure, releasing heat to the cooling medium, and then condenses into a subcooled liquid refrigerant. The liquid refrigerant passes through an expansion valve for adiabatic throttling into a low-pressure liquid refrigerant, evaporates in the evaporator to absorb the heat from the air conditioning circulating water (air), thereby cooling the air conditioning circulating water to achieve the purpose of refrigeration, and the low-pressure refrigerant is sucked in by the compressor and enters the cycle for further operation.
A single-stage steam compression refrigeration system consists of four basic components: the refrigeration compressor, the condenser, the throttle valve, and the evaporator. They are connected in sequence by pipes to form a closed system. The refrigerant continuously circulates and undergoes state changes within the system, exchanging heat with the outside world.
If the condenser of a car is broken, the handling method depends on the specific fault type. The condenser is a key heat dissipation component of the car's air conditioning system, located in front of the water tank, and is prone to failure due to collisions, blockages, or aging. The following are handling methods for different fault situations:
Condenser blockage (poor heat dissipation)
If the air conditioning cooling effect is poor but there is no obvious leakage or damage, it is likely that the condenser is clogged with dust, leaves, or debris.
Handling method:
First, use a high-pressure water gun to rinse the surface from the outside in, controlling the water pressure to avoid damaging the heat dissipation fins.
If the rinsing effect is not good, spray the surface with a special condenser cleaning agent (usually alkaline, mixed with water in a certain ratio) and start the engine and turn on the air conditioning to allow the cleaning agent to penetrate.
After cleaning, thoroughly rinse with clean water to ensure there is no residue.
Condenser leakage (refrigerant loss)
If the air conditioning does not cool, the system pressure is low, or oil stains are found on the surface of the condenser (refrigerant leakage marks), it is a leakage fault.
Handling method:
Pipe joint leakage: Replace the corresponding O-ring or pipe joint, and re-perform leak detection and pressure testing to ensure sealing.
Mild leakage: Professional welders can perform welding repair, but the welding may affect the heat dissipation performance, and the operation should be carried out by experienced personnel.
Severe leakage or large hole: Must replace the entire condenser. It is recommended to choose a product with the same specifications as the original factory and check all connections after installation to ensure they are firmly attached.
Condenser pipe rupture
If the condenser pipe ruptures due to an accident or long-term vibration, it needs to be disassembled for inspection.
Handling method:
Small-scale rupture can be attempted to be welded repaired, but 40–50 mL of refrigerating oil should be added to the compressor.
If the rupture is severe or deformed, it is safer and more reliable to directly replace the new condenser.
Heat dissipation fin deformation If the aluminum fins on the surface of the condenser are distorted by foreign objects, it will affect the heat dissipation efficiency.
Solution: Use tweezers or special tools to carefully straighten the deformed fins to avoid further damage.
Fan failure (not a problem of the condenser itself)
If the condenser itself is intact but the air conditioning has low airflow or poor heat dissipation, it may be that the fan is not turning or has a slow speed.
Solution: Do not disassemble the condenser, directly check if the fan motor is damaged or the blades are broken, and repair or replace the fan as needed.
Important advice:
The risk of self-handling is high: The condenser is part of the air conditioning refrigeration system. Improper operation may lead to refrigerant leakage, environmental pollution or system damage. If you are unsure about the cause of the fault or do not have professional tools, it is recommended to directly go to a regular auto repair shop for maintenance.
Daily maintenance: Regularly clean the dust on the surface of the condenser, avoid long-term exposure to the sun, and regularly check the pressure of the air conditioning system and the filter, which can effectively extend the lifespan of the condenser.
In conclusion, condenser faults should not be ignored. Accurately identifying the type is crucial. Minor problems can be cleaned or welded, and severely damaged ones must be replaced to ensure the safe and efficient operation of the air conditioning system.
