Ferrule Beam: The Invisible Guardian and Fault Warning of the Vehicle Chassis

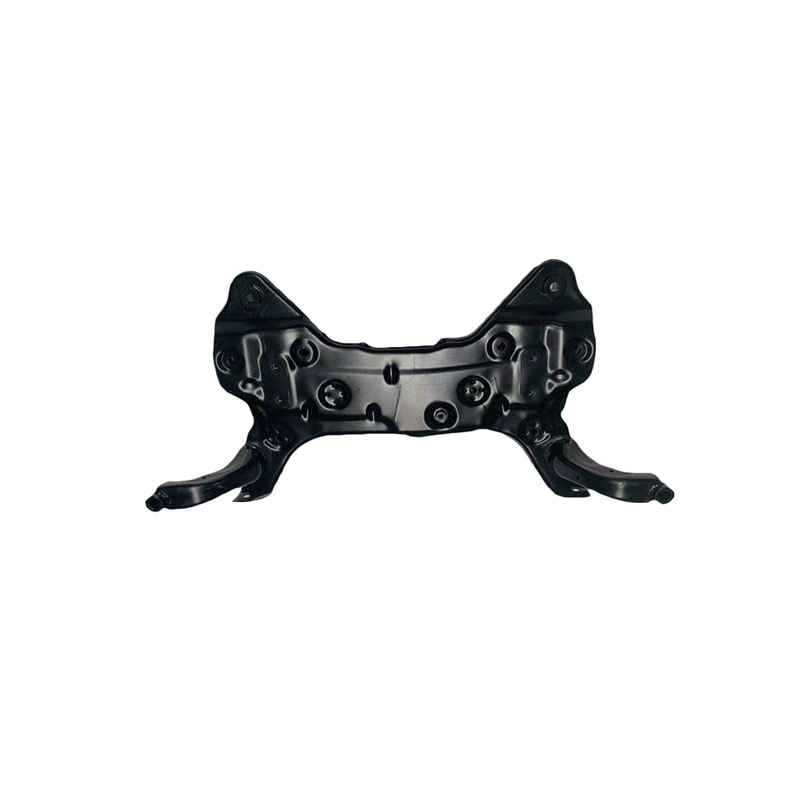

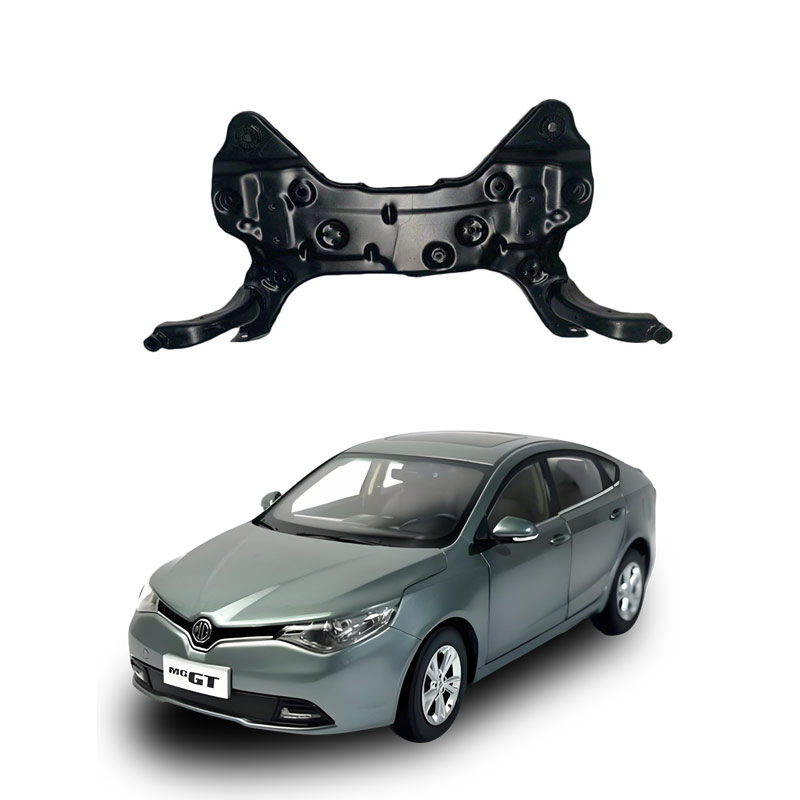

In this complex and precise system of the vehicle chassis, the ferrule beam can be regarded as the "invisible guardian". It is commonly known as a semi-frame type sub-frame, named so because of its shape resembling a coin. It is usually located beneath the engine and transmission, connected to the vehicle body through bushings, and serves as a key link connecting the powertrain, suspension system, and the vehicle body. This seemingly insignificant component actually performs multiple core functions and directly affects the vehicle's handling, comfort, and safety.
From a functional perspective, the ferrule beam is first and foremost the "stable base" for the powertrain. It adopts a high-strength connection process to firmly fix the engine and transmission, ensuring that these two core components remain stable during vehicle operation and providing a reliable guarantee for power output. At the same time, it is also the "precise connector" for the suspension system, forming a mechanically superior triangular support structure through precise design of the connection points and the suspension links, allowing the suspension system to more efficiently transmit road information and enhance vehicle handling stability.
In terms of safety protection, the ferrule beam plays a crucial role. When the vehicle encounters a frontal collision, it can efficiently absorb impact energy through its own structural deformation, preventing the powertrain from moving backward and invading the passenger compartment, thus building the first line of defense for the passengers. Collision test data shows that the ferrule beam can effectively disperse approximately 30% of the impact force, significantly reducing the probability of core components being damaged. Additionally, it is the "foundation" of the chassis rigidity, and its structural strength directly determines the vehicle's torsional stiffness, being a core component for ensuring vehicle handling stability.
The improvement of comfort also relies on the contribution of the ferrule beam. It adopts a rubber bushing isolation scheme, significantly reducing the transmission of engine vibration and road excitation to the vehicle body, effectively filtering out vibration and noise, creating a quieter and more comfortable interior environment for passengers. In micro vehicles, by optimizing the cross-sectional shape of the beam and the layout of connection points, the ferrule beam can also effectively enhance the vehicle's driving stability, solving the problem of vehicle instability when driving on rough roads.
However, this "guardian" is not impervious to damage. During long-term use, the ferrule beam may suffer various faults, causing safety hazards for vehicle operation. When the ferrule beam is damaged, the most common symptoms are unstable vehicle operation, shaking steering wheel, and "clattering" or "clanging" noises coming from the chassis during driving, especially when passing over减速带 or uneven roads， the noise becomes more obvious. At the same time， acceleration performance may decline， braking effect may be affected， the suspension system may exhibit abnormalities， and uneven tire wear may also occur. Such problems may also arise.
The damage to the ferrule beam rubber sleeve is a relatively common type of fault. After the rubber sleeve ages and cracks， when the vehicle passes over， stone-paved roads， or dirt roads， it will hear a clear metallic knocking sound， the body resonance intensifies， the steering wheel feels fine tremors， and the vehicle will shake severely on bumpy roads， resulting in decreased handling and steering flexibility， and even an increase in fuel consumption. This is because after losing its buffering effect， the metal parts come into direct contact， vibration and noise cannot be effectively filtered， and at the same time， the gap between the ferrule beam and the vehicle body increases， affecting the integrity of the chassis.
When the vehicle exhibits the above fault symptoms， it is necessary to promptly inspect the ferrule beam. If the deformation is minor， it can be adjusted through four-wheel alignment. However， if the deformation is severe or there are cracks， rust， or perforations， the ferrule beam must be replaced. Especially when the vehicle has suffered a severe collision， has been driven in harsh road conditions for a long time， or is exposed to corrosive environments， the ferrule beam is more likely to suffer structural damage. If it is forcibly continued to be used， it may cause persistent deviations in suspension positioning parameters， reduced braking effect， abnormal suspension system， uneven tire wear， and even serious safety accidents such as vehicle running off course or sudden fractures.
In conclusion， the ferrule beam， as a core component of the vehicle chassis， its role cannot be underestimated. During daily vehicle use, the owner should regularly inspect the chassis and pay attention to any abnormal symptoms during driving. Once any problems related are detected， they should be repaired or replaced in time to ensure that the vehicle always maintains a good driving condition and protect the safety of passengers and drivers.
